Aiways · SUV · 2021

Aiways U5 Trunk Dimensions

Dimensions
Trunk space

Aiways U5 - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Aiways U5 (SUV). Access in 3D

Trunk dimensions Aiways U5 (SUV). Access in 3D

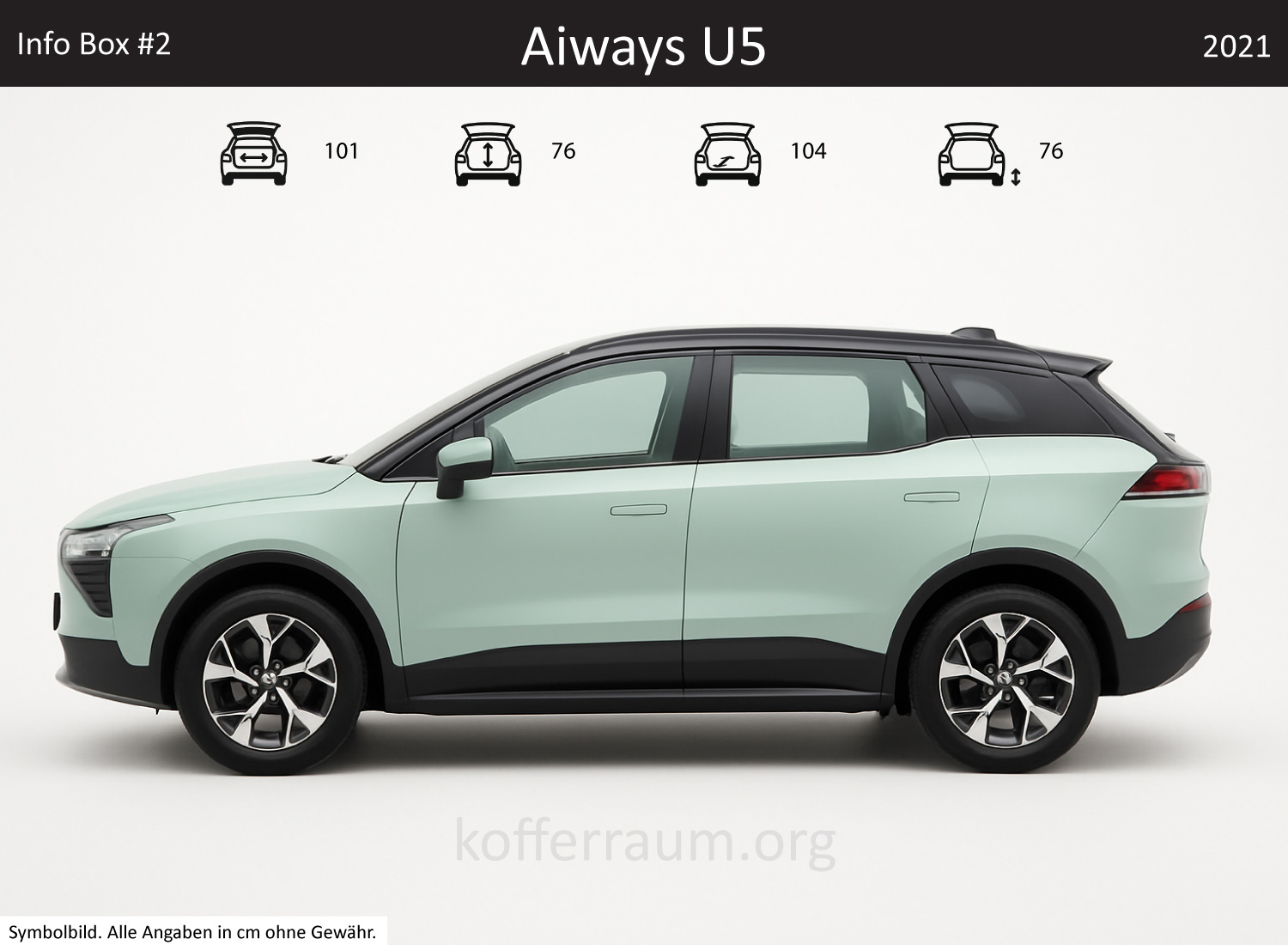

Aiways U5 trunk dimensions – detail — Detail dimensions Aiways U5

Aiways U5 (SUV) Trunk Dimensions

Aiways U5 (SUV) Trunk Dimensions
Measurement	Value
Width of Trunk	40.2 in
Length of Trunk	40.9 in
Height of Trunk	29.8 in

Aiways U5 (SUV) Car Dimensions

Aiways U5 (SUV) Car Dimensions
Measurement	Value
Length of Car	184.3 in
Width of Car	73.4 in
Height of Car	66.9 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Bugaboo Cub All-Terrain

Fits (seats up)

into the Aiways U5

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the Aiways U5

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the Aiways U5

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the Aiways U5

All Shop

Camping boxes

squiq Traveler regular

Fits (seats up)

into the Aiways U5

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the Aiways U5

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 33cm faltbar

Fits (seats up)

into the Aiways U5

All Shop

Ladders

Huini 2,5+2,5m

Fits (seats up)

into the Aiways U5

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Aiways U5

All Shop

Boxes

Auer Packaging 80x60x52

Fits (seats up)

into the Aiways U5

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Aiways U5

The trunk of the Aiways U5 2021 offers a volume of about 15.3 cu ft, which can be expanded up to 42.4 cu ft by folding down the rear seats. The rear bench is split 60:40, allowing flexibility when transporting luggage. The interior is designed in a modern style, with a flat loading floor that facilitates access.

The trunk dimensions vary within the model range, but the basic shape remains rectangular, optimizing usability. The loading edge is relatively low, making loading and unloading easier.

Practical details such as tie-down hooks and a removable cover are also present to increase functionality. Overall, the trunk of the Aiways U5 offers a good combination of space and flexibility for an SUV.

Model Information

The Aiways U5 is a fully electric SUV characterized by modern design and innovative technologies. It was developed to meet both urban and rural driving conditions.

With a focus on sustainability and efficiency, the U5 offers a range of up to 400 km, depending on driving style and conditions. The equipment includes advanced driver assistance systems and an intuitive infotainment system that enhances driving comfort.

Variants of the Same Series

The Aiways U5 is currently offered as an SUV and has no other variants such as sedan or convertible. The model range focuses on the SUV category, meaning buyers should not confuse it with other body styles within this model. However, future variants might be considered to address different market segments.

Yearly Differences

The Aiways U5 was first introduced in 2019, and since then there have been some updates affecting body dimensions and trunk volume.

The main changes occurred in the 2020 and 2021 model years, when engineers optimized the design and improved the interior layout. These adjustments led to a slightly larger trunk and better space utilization.

Direct Competition

In the same price range and size, the Aiways U5 competes with models like the Hyundai Kona Electric and the Kia e-Niro. The Hyundai Kona Electric offers a trunk volume of about 12.7 cu ft, while the Kia e-Niro provides 15.9 cu ft.

In comparison, the U5 has a clear advantage in terms of trunk volume, making it more attractive for buyers who value storage space.

More Affordable Alternatives

More affordable alternatives with similar trunk dimensions include the Dacia Duster and the Skoda Kamiq. The Dacia Duster offers a trunk volume of around 15.7 cu ft, while the Skoda Kamiq provides about 14.1 cu ft.

Both models are generally cheaper than the Aiways U5 but offer less trunk space, which could be a decisive factor for buyers needing ample cargo space.

Cargo space Aiways U5

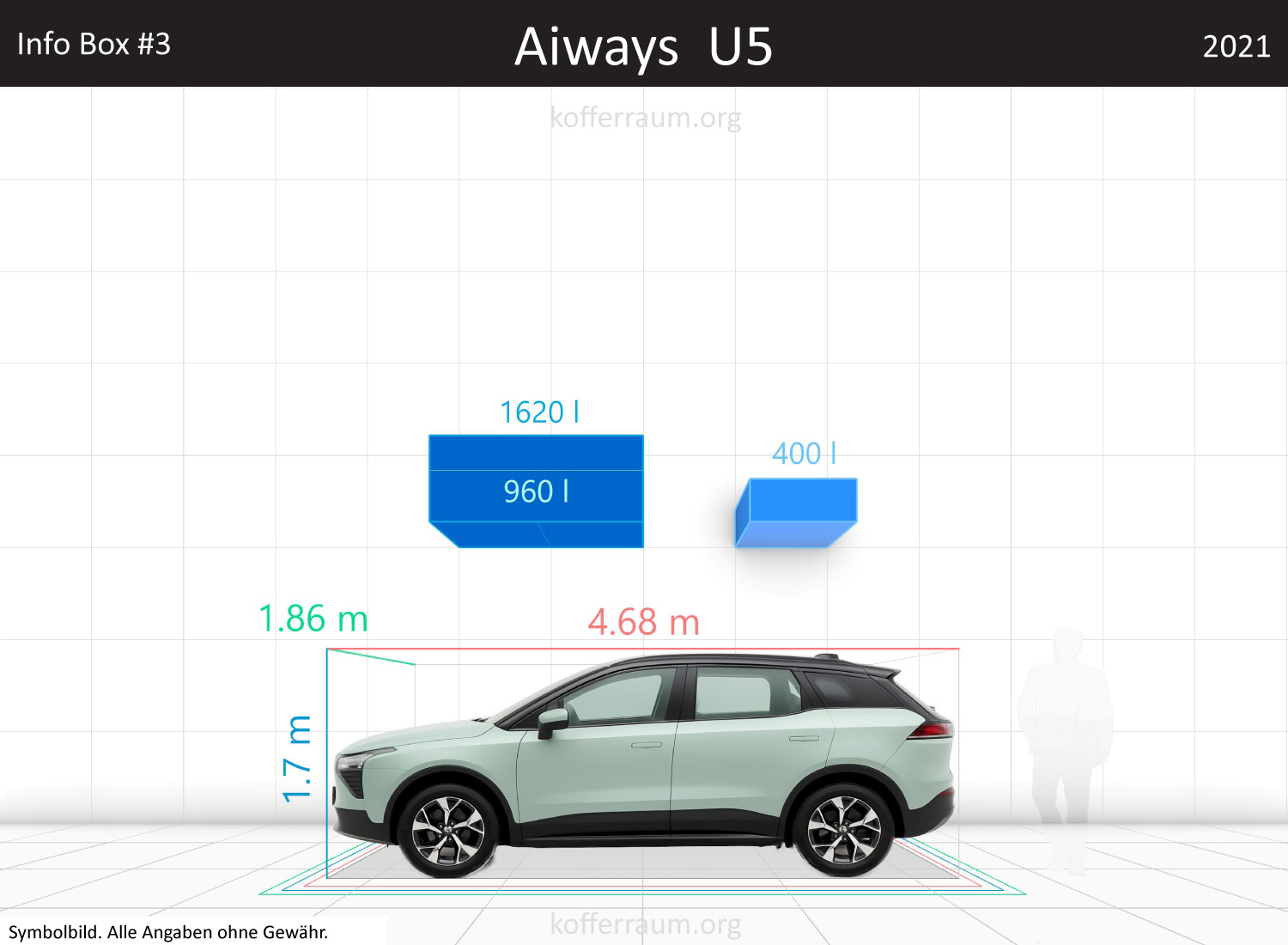

Aiways U5 trunk space volume — Trunk volume Aiways U5

Trunk Volume

The volume figures are inconsistent: Manufacturer: 15.3 cu ft, independent measurements: 13.1 cu ft, the fact sheet cites approximately 14.2 cu ft as a reference value (which is about 4.5% below the average car).

Relative to the vehicle volume, the trunk accounts for around 5.4% (−1.1 percentage points compared to the average).

With the rear seats folded down, very different values arise depending on the measurement method: up to the window sill 33.9 cu ft (independent measurement), roof-high 54.9 cu ft (manufacturer) or 59.2 cu ft (independent measurement).

Practically usable intermediate values: under the cover 13.1 cu ft; cover folded and up to the roof about 22.8 cu ft (figure from test fragment).

Everyday effect: the volume is sufficient for daily shopping and luggage for two to three people; for longer trips or larger transports, you benefit significantly from the foldable rear seats (up to ~33.9 cu ft to the window sill).

The differences between manufacturer and independent values show that the actually usable capacity strongly depends on the measurement method and loading style.

Vehicle Size and Parking Friendliness

Dimensions: 184.3 in length, 73.6 in width, 66.9 in height. Compared to an average car, the U5 is about 4.7 in longer, 0.8 in wider, and 5.5 in taller.

Compared to a standard parking space, the U5 is 12.6 in shorter and 25.2 in narrower — so it basically fits in standard parking spots but has slightly less maneuvering room due to its width and length.

Everyday effect: the slightly above-average exterior dimensions provide more interior space but make maneuvering and parking in tight city areas minimally more challenging; the taller body may be noticeable in very low garages or tight underground parking.

Trunk Usability and Flexibility

Positive: the loading opening is large, the trunk is flat and well usable; the cargo cover can be stored under the loading floor. The tailgate opens electrically and can be operated by foot sweep — practical when loading with full hands.

Negative/limiting: the tailgate does not open very high, persons over ~1.80 m can bump their heads; the tailgate lock protrudes visibly and the loading edge at 29.9 in above road level is relatively high, making handling heavy objects more difficult.

A variable loading floor or additional underfloor storage is not available.

Regarding variability: the rear seatbacks fold asymmetrically; to achieve a truly flat loading surface, the seat cushion must be moved/adjusted beforehand. Overall, flexibility is average for the class.

Everyday effect: easier stowing of luggage and shopping thanks to large opening and storage under the cover; bulky or heavy loads become less practical due to the high loading edge and the not very high opening tailgate.

Those frequently loading tall/heavy items will notice the effort; for family daily use and vacations, the combination of foldable seats and large roof volume is useful.

General Model Information

Familiarity and special features: The Aiways U5 comes standard with keyless entry with retractable door handles, an electric tailgate with foot operation, and a flat rear footwell without a center tunnel — increasing comfort and practicality inside.

Particularities: inconsistent manufacturer vs. independent trunk figures, visible tailgate lock, and high loading edge are noticeable points. The rear seat variability is present but only average in comfort to implement (seat cushion often must be adjusted before folding).

Empty weight and payload: empty weight 1770 kg, payload 385 kg. This significantly limits the additional transportable load — to be considered when fully occupied (with five passengers, little payload remains for luggage).

Price-performance ratio: specific price data is missing in the fact sheet. Technically, the U5 offers many practical features (keyless, electric tailgate, good interior), but has only average trunk volume and some ergonomic weaknesses (loading edge, tailgate) that affect the overall impression.

Competitor models: In the segment, the U5 typically competes with compact to mid-size SUVs / electric SUVs (for example models like VW ID.4, Hyundai Kona/IONIQ series, Kia e-Niro depending on positioning).

Exact comparability depends on equipment, battery/drive, and price — these details are not included in the fact sheet.

What fits in the Aiways U5 trunk?

Tested: 100 products — 82 fit with seats up, 14 only with seats folded.

Info

To check whether products fit the trunk, we use a purpose-built database of 3D models of 800+ trunks.
We offer the same method to online retailers at car-go.fit.
On Trunk 3D you can place these products in your trunk and arrange them with other items.
Missing an important product? Contact us at support@kofferraum.org.
