BMW · Hatchback · 2020

BMW 1 Series Trunk Dimensions

Dimensions
Trunk space

This page shows the 1 Series (Hatchback). Other body styles are: 1 Series Convertible (Convertible) , 1 Series Coupe (Coupe) .

BMW 1 Series - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions BMW 1 Series (Hatchback). Access in 3D

Trunk dimensions BMW 1 Series (Hatchback). Access in 3D

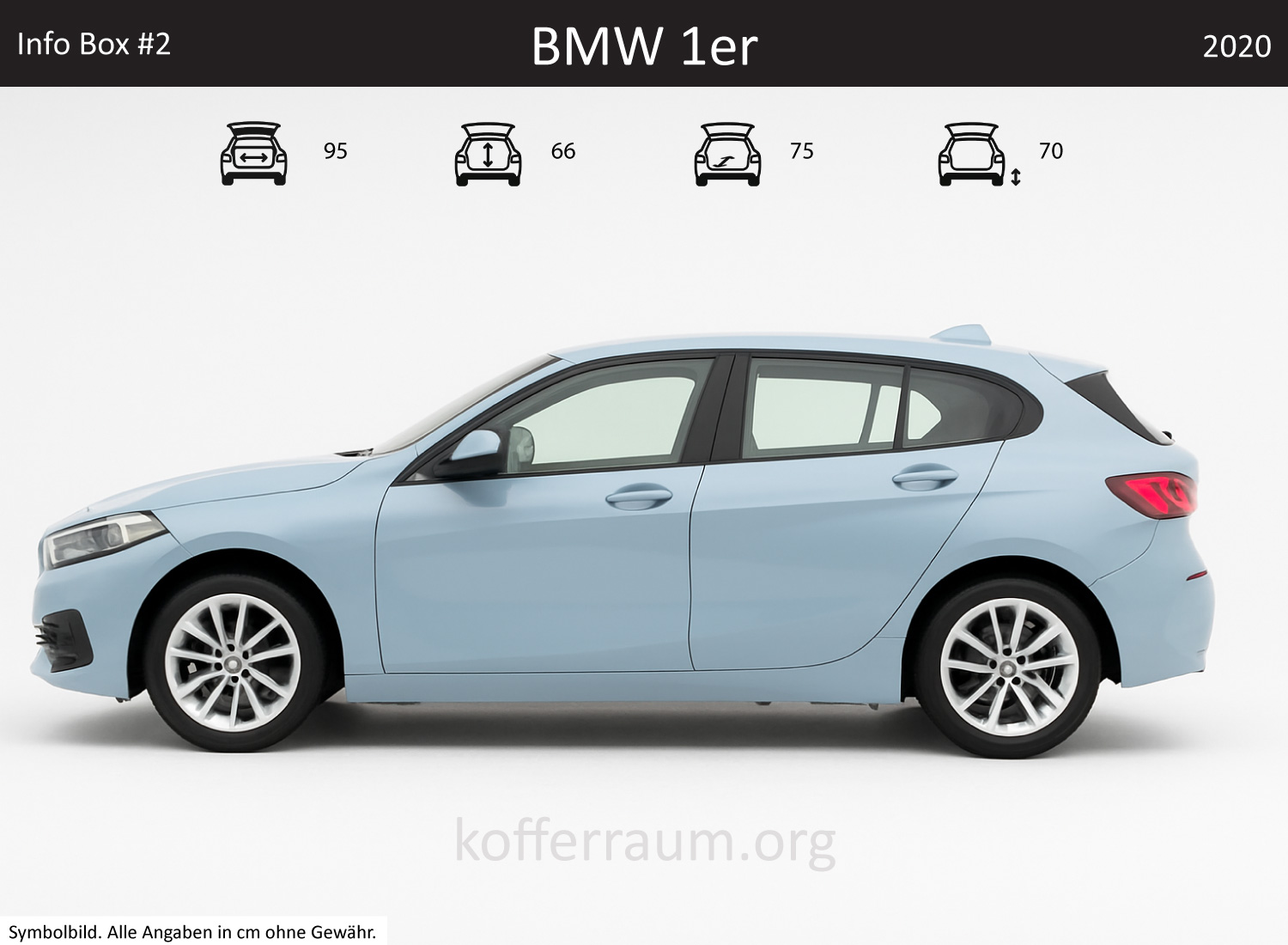

BMW 1 Series trunk dimensions – detail — Detail dimensions BMW 1 Series

BMW 1 Series (Hatchback) Trunk Dimensions

BMW 1 Series (Hatchback) Trunk Dimensions
Measurement	Value
Width of Trunk	40 in
Length of Trunk	29.3 in
Height of Trunk	26 in

BMW 1 Series (Hatchback) Car Dimensions

BMW 1 Series (Hatchback) Car Dimensions
Measurement	Value
Length of Car	171.7 in
Width of Car	70.9 in
Height of Car	57.4 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Inglesina Sketch

Fits (seats up)

into the BMW 1 Series

All Shop

Suitcases

Travelhouse Tokyo 110L

Fits (seats up)

into the BMW 1 Series

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the BMW 1 Series

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the BMW 1 Series

All Shop

Mobility aids

KMINA

Fits (seats up)

into the BMW 1 Series

All Shop

Garden tools

TrendLine 15L

Fits (seats up)

into the BMW 1 Series

All Shop

Ladders

SONGMICS 4 Stufen

Fits (seats up)

into the BMW 1 Series

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the BMW 1 Series

All Shop

Boxes

Auer Packaging 60x40x32

Fits (seats up)

into the BMW 1 Series

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions BMW 1 Series

The BMW 1 Series hatchback 2020 offers a trunk volume of about 13.4 cu ft, which can be expanded up to 42.4 cu ft when the rear seats are folded down.

The rear bench is split 60:40, allowing flexibility for cargo. The interior is designed with high quality, featuring a practical, flat loading edge that makes loading and unloading easier.

The trunk dimensions vary within the model range, with the hatchback design providing good accessibility. Typical features include efficient space utilization and a thoughtful interior layout that simplifies everyday use.

Model Information

The BMW 1 Series hatchback is a compact vehicle characterized by sporty design and innovative technology. The latest series offers a variety of modern amenities and advanced driver assistance systems.

With a focus on driving dynamics and efficiency, the 1 Series appeals to both younger and experienced drivers. The interior is designed for comfort and functionality, while the exterior lines create a dynamic presence on the road.

Variants of the Same Series

The BMW 1 Series is available in various variants, including the hatchback, which is considered the main model. Other variants such as the sedan and wagon are also part of the 1 Series lineup but differ in body style and dimensions.

It is important not to confuse these models, as they target different audiences and offer different characteristics.

Yearly Differences

Model changes affecting the body and trunk dimensions of the BMW 1 Series mainly occurred in 2011 and 2019. The first generation was updated in 2011, resulting in an increase in trunk space.

The current generation, introduced in 2019, brought further improvements in interior design and overall functionality without significantly changing the basic trunk dimensions.

Direct Competitors

In the same price and size class, the BMW 1 Series competes with models like the Audi A3 and Mercedes-Benz A-Class. The Audi A3 offers a trunk volume of about 13.4 cu ft, similar to the 1 Series.

The Mercedes-Benz A-Class has a slightly smaller trunk volume of around 13.1 cu ft. These differences are minor but can be decisive depending on individual needs.

More Affordable Alternatives

More affordable car models with similar trunk dimensions include the Ford Focus and Opel Astra. The Ford Focus offers a trunk volume of about 13.2 cu ft, while the Opel Astra has around 13.1 cu ft.

Both models are generally less expensive than the BMW 1 Series but provide comparable cargo capacity and flexibility in the trunk.

Trunk space BMW 1 Series

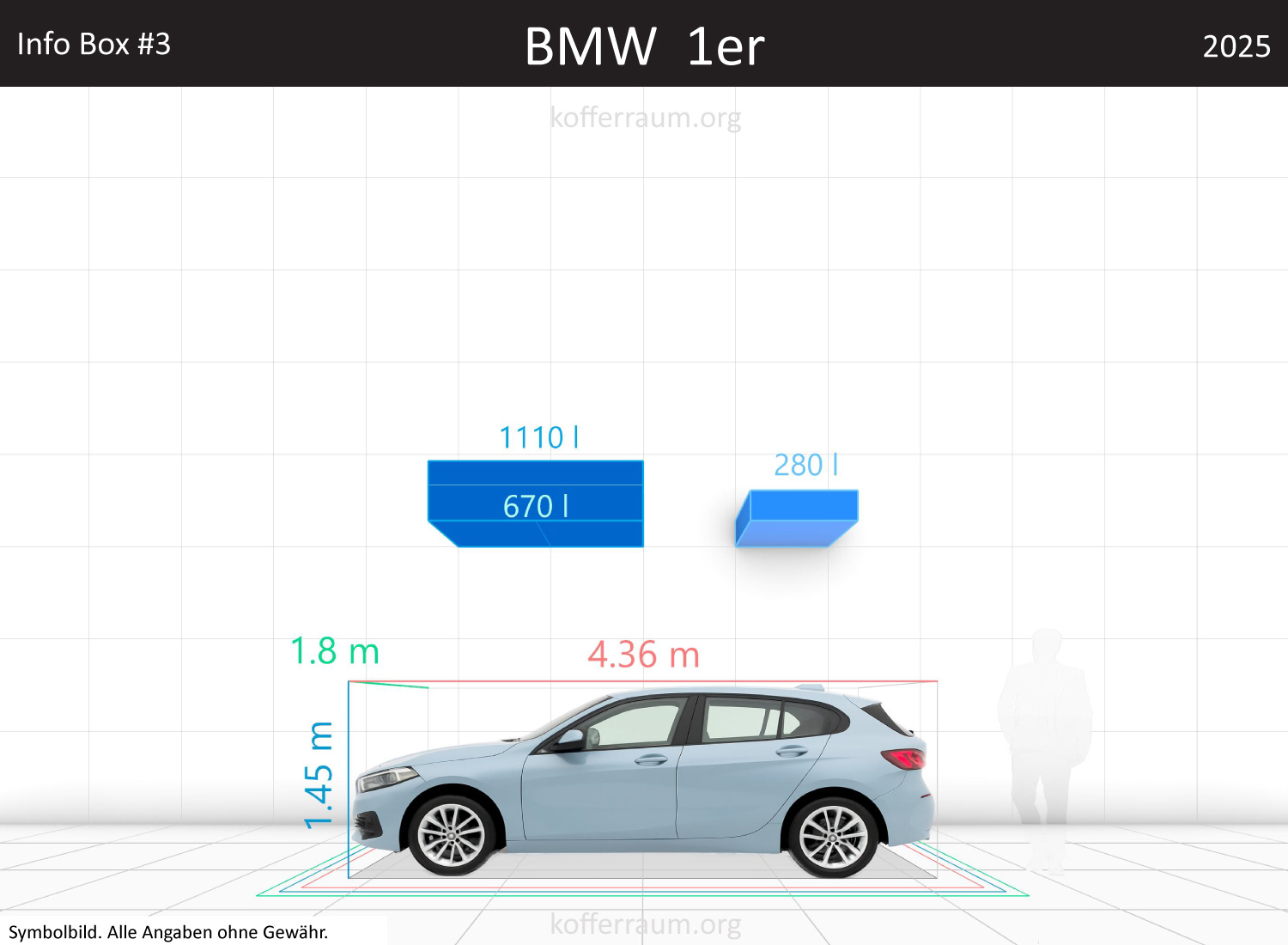

BMW 1 Series trunk space volume — Trunk volume BMW 1 Series

Trunk Volume

The trunk volume of the BMW 1 Series hatchback 2025 ranges depending on measurement between approximately 265 and 10.6 cu ft. One data point lists about 10 cu ft, which is -32.74% below the volume of an average car.

Under the trunk cover, the volume measures 9.4 cu ft; removing the cover and using the space up to the roof edge locally increases the volume to about 11.8 cu ft (fragment data).

With the rear seats folded down, significantly larger spaces result: up to the window sill about 23.5 cu ft (manufacturer-independent), roof-high about 1090–40.1 cu ft (manufacturer-independent / manufacturer data).

Vehicle Size and Parking Friendliness

Exterior dimensions: 171.7 in length, 70.9 in width, 57.5 in height. Compared to an average car, the 1 Series is about 7.9 in shorter, 2 in narrower, and 3.9 in lower. It is significantly more compact than a standard parking space (in the data 25.2 in shorter and 27.6 in narrower than a normal parking spot).

Practical consequence: the compact dimensions make parking and city driving easier. The lower body can slightly limit interior height, while the shorter length is advantageous for maneuvering and utilizing parking spaces.

Trunk Usability and Flexibility

Everyday use:

Sufficient volume for daily shopping or a weekend for two; large luggage for longer vacations or four people is limited.
Practical: up to six beverage crates can fit in the trunk (fragment data).

Operation and limitations:

A manual tailgate is standard; the test vehicle had an electric tailgate. With optional comfort access, operation by foot kick is possible.
The opening height is adjustable and reportedly suitable for persons up to 1.90 m. Caution: protruding hooks may interfere with taller individuals.
The loading edge is at 27.6 in, and the side wall is relatively high at 2.4 in — this complicates loading and unloading heavy items.
The loading opening could be larger; bulky items are limited in loading and unloading due to the opening and loading edge.
The rear seat backrest is asymmetrically split as standard; optionally three-way split. Folding is easy from the rear seats but cumbersome from the trunk.
Fixing points in the trunk are limited, and lighting with only one side LED is weak.

Tips: remove the cover or fold down the backrests when larger volumes are needed; use ramps or aids for heavy items due to the 27.6 in loading edge; recommend electric tailgate/comfort access for better everyday usability.

General Model Information

Familiarity and positioning: The BMW 1 Series is an established model in the premium compact segment. It is known as a city- and everyday-oriented model, offering typical BMW options (e.g., electric tailgate, comfort access) and combining compactness with brand image.

Special features and characteristics:

Compact exterior dimensions with comparatively small trunk — practical in the city, limited for luggage.
Optional equipment (electric tailgate, comfort access, three-way backrest) improves usability but increases price.
Good variability with folded seats (up to >21.2 cu ft to window sill, up to >35.3 cu ft roof-high), but practical use is limited by loading opening and loading edge.

Price-performance assessment: As a BMW, the 1 Series is generally positioned in the premium price range; those valuing brand image, driving dynamics, and equipment options get a compact premium everyday car — those primarily seeking maximum cargo space at a lower price often find better space values in more conventional compact models.

Competitor models: Main competitors are models from the premium and upper compact segment like Audi A3, Mercedes A-Class, and classic compact class candidates like the VW Golf or Mazda3. Buyers should weigh volume, loading opening, and equipment against price and brand expectations.
