BMW · Sedan · 2024

BMW 5 Series Trunk Dimensions

Dimensions
Trunk space

This page shows the 5 Series (Sedan). Other body styles are: 5 Series Gran Turismo (Gran Turismo) , 5 Series Touring (Wagon) .

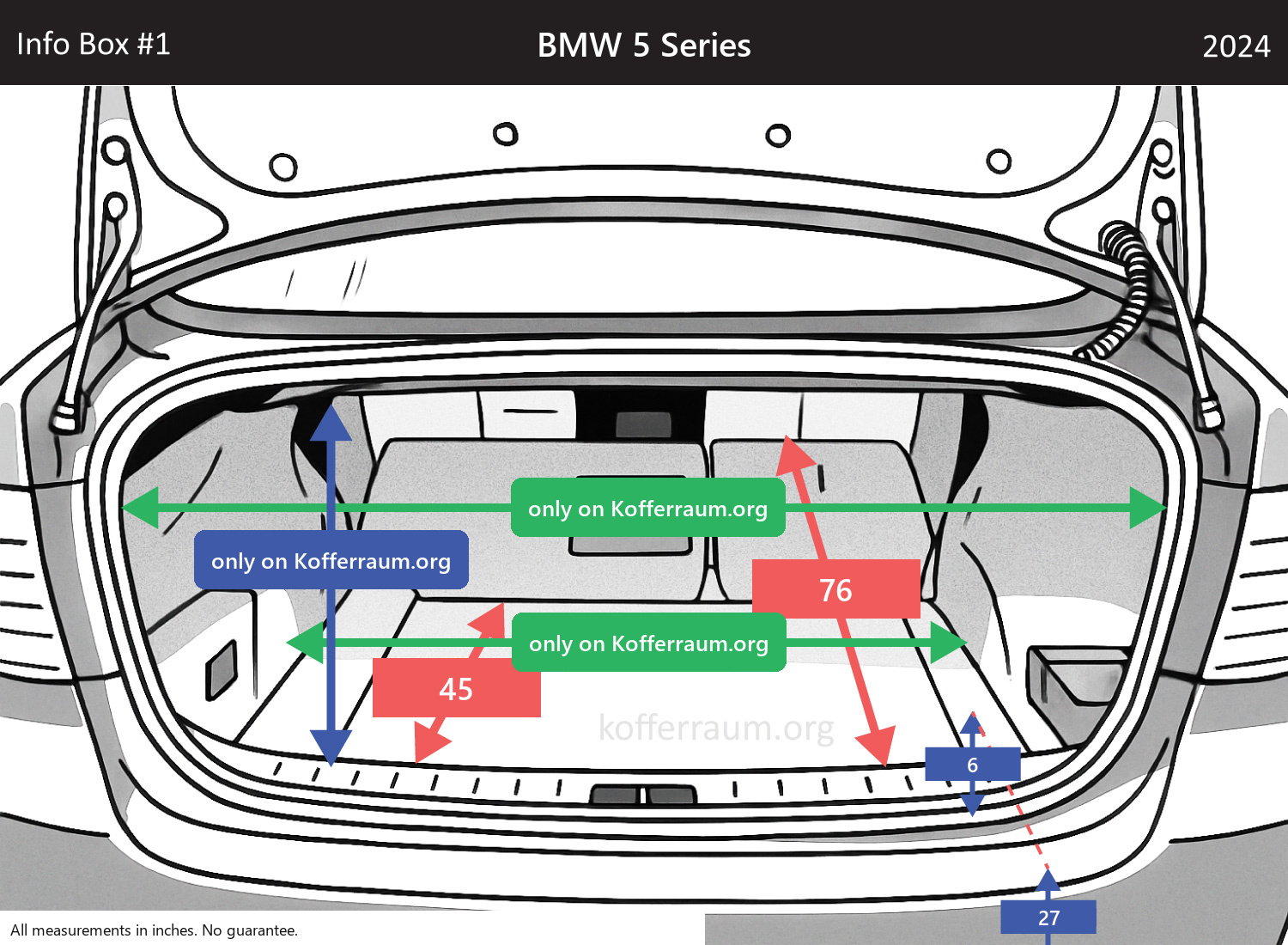

BMW 5 Series - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions BMW 5 Series (Sedan). Access in 3D

Trunk dimensions BMW 5 Series (Sedan). Access in 3D

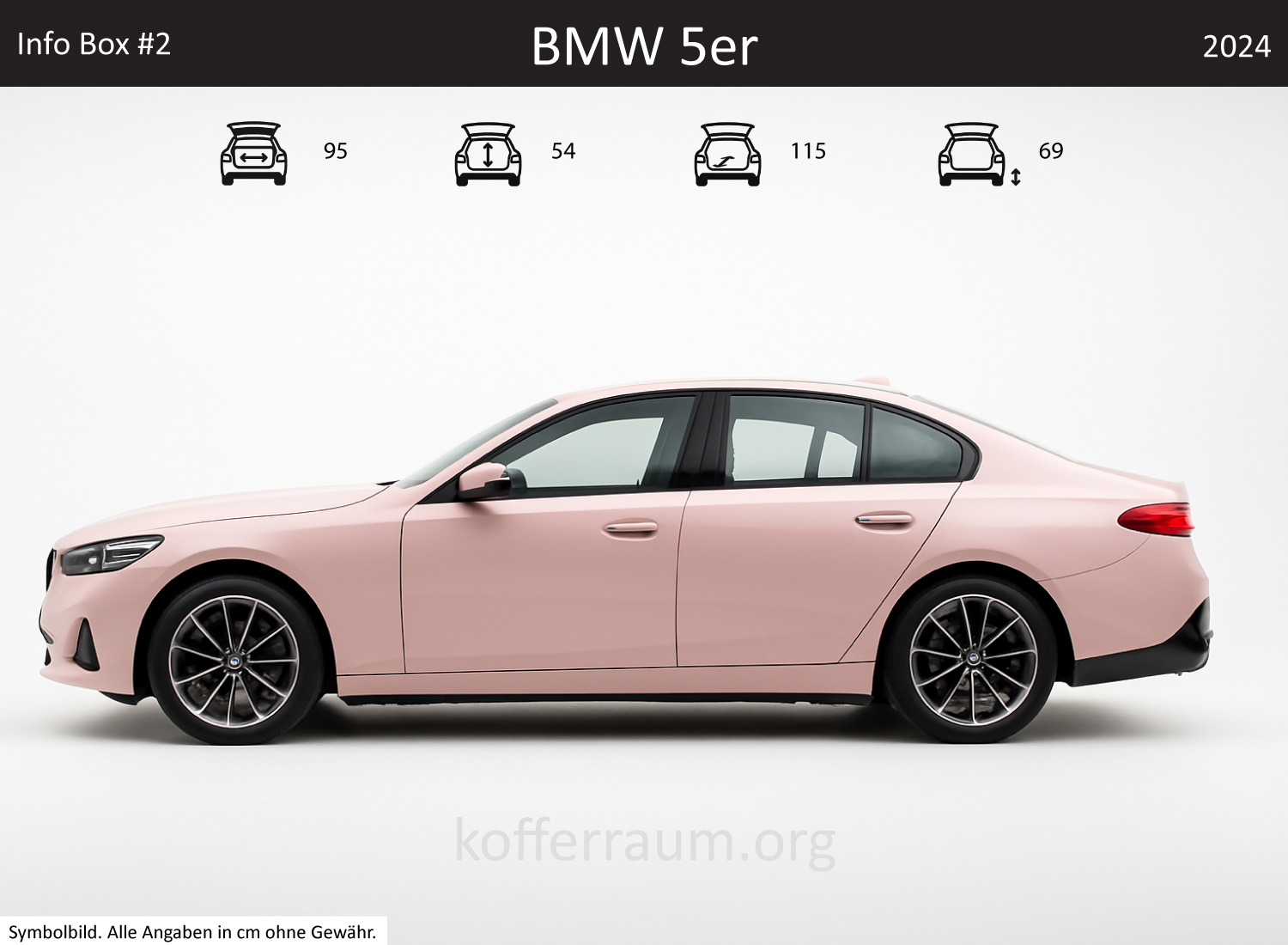

BMW 5 Series trunk dimensions – detail — Detail dimensions BMW 5 Series

BMW 5 Series (Sedan) Trunk Dimensions

BMW 5 Series (Sedan) Trunk Dimensions
Measurement	Value
Width of Trunk	31.7 in
Length of Trunk	45.3 in
Height of Trunk	21.2 in

BMW 5 Series (Sedan) Car Dimensions

BMW 5 Series (Sedan) Car Dimensions
Measurement	Value
Length of Car	199.2 in
Width of Car	74.8 in
Height of Car	59.6 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Maxi-Cosi Zelia Select+

Fits (seats up)

into the BMW 5 Series

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the BMW 5 Series

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the BMW 5 Series

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the BMW 5 Series

All Shop

Mobility aids

Mobiclinic Bolonia

Fits (seats up)

into the BMW 5 Series

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 40cm faltbar

Fits (seats up)

into the BMW 5 Series

All Shop

Ladders

Juskys 3x4 mit 3,6m

Fits (seats up)

into the BMW 5 Series

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the BMW 5 Series

All Shop

Boxes

Auer Packaging 60x40x32

Fits (seats up)

into the BMW 5 Series

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions BMW 5 Series

The trunk of the BMW 5 Series sedan 2024 offers a volume of about 18.7 cu ft, which can be expanded to approximately 60 cu ft by folding down the rear seats.

The rear bench is split 40:20:40, allowing flexibility when transporting luggage. The interior design is high-quality, with a practical loading edge that facilitates access.

The trunk dimensions vary slightly within the model range, but the shape remains consistently functional and spacious. Typical features include a thoughtful arrangement of tie-down points and an optional electric trunk lid for added convenience.

Model Information

The latest series of the BMW 5 Series, known as G30, was first introduced in 2016 and is part of the 7th generation of the 5 Series model. The sedan combines sporty design with luxurious comfort and state-of-the-art technology.

It offers a variety of powertrains, including gasoline, diesel, and hybrid variants. The G30 series is known for its driving dynamics, high-quality interior, and innovative assistance systems.

Variants of the Same Series

Within the 5 Series lineup, there are different variants that should not be confused. Besides the sedan (G30), there is also the BMW 5 Series Touring (G31), designed as a wagon offering more cargo space.

Additionally, the BMW M5 exists, a high-performance sport version of the sedan characterized by aggressive design features and enhanced driving performance. These differences are crucial for buyers with specific requirements regarding space and performance.

Yearly Differences

Model changes affecting body dimensions and trunk measurements mainly occurred between the model years 2016 and 2020. The G30 series received a facelift in 2020, which brought minor adjustments to the body shape and dimensions.

However, these changes did not significantly impact the trunk volume, which remained constant at 18.7 cu ft.

Direct Competitors

In the same price class and size, the BMW 5 Series sedan competes with models such as the Audi A6 and the Mercedes-Benz E-Class. The Audi A6 offers a trunk volume of about 18.7 cu ft, similar to the BMW.

The Mercedes-Benz E-Class, on the other hand, has a slightly larger trunk volume of about 19.1 cu ft. These differences are minor but can be significant for buyers who rely on cargo space.

More Affordable Alternatives

More affordable alternatives with similar trunk dimensions include the Skoda Superb and the Ford Mondeo. The Skoda Superb offers a trunk volume of up to 22.1 cu ft, making it an excellent choice for buyers needing a lot of cargo space.

The Ford Mondeo, meanwhile, has a trunk volume of about 18.5 cu ft, positioning it close to the BMW 5 Series sedan. These models provide good value for money without sacrificing functionality.

Trunk space BMW 5 Series

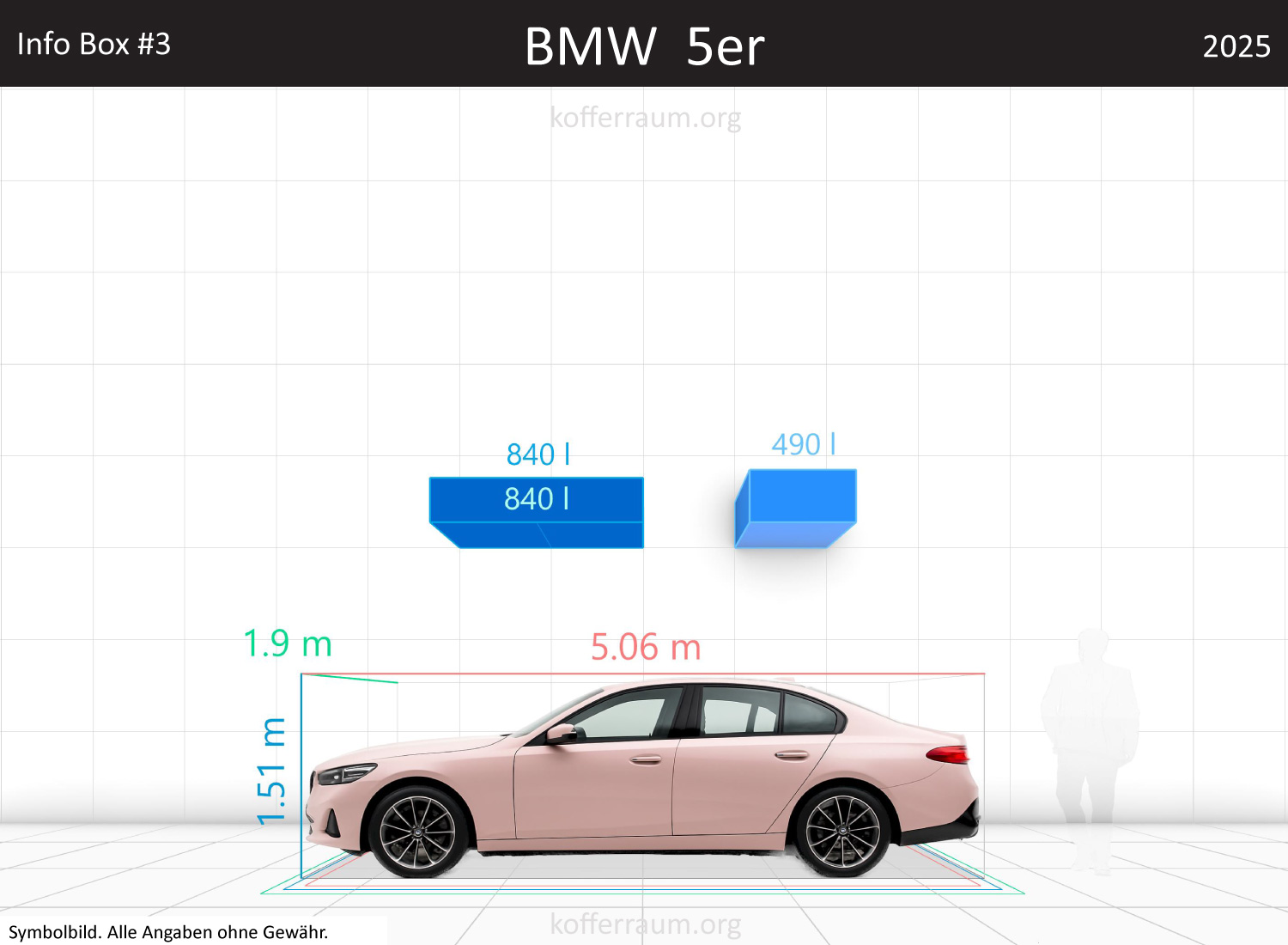

BMW 5 Series trunk space volume — Trunk volume BMW 5 Series

Trunk Volume

The BMW 5 Series sedan 2025 offers a real volume of approximately 16.4 cu ft (manufacturer-independent), manufacturer specification: 18.4 cu ft.

With the rear seats folded down, the volume increases up to the window sill to 29.5 cu ft. Overall, the trunk volume corresponds to about 17.4 cu ft as an average, which is approximately 17.3% more than an average car.

Everyday use: 16.4 cu ft is sufficient for groceries, suitcases for weekend trips, or up to seven beverage crates.

For bulkier or very tall cargo, the capacity up to the window sill (29.5 cu ft) is useful but not enough for very tall items, as the roof-high volume with folded seats is significantly smaller compared to the average.

Vehicle Size and Parking Friendliness

Dimensions: 199.2 in length, 74.8 in width, 59.8 in height. Compared to the average, the 5 Series is about 10.9% longer, slightly wider (+2.7%), and lower (-3.1%).

Everyday use: The longer body requires a bit more space in tight garages or when maneuvering.

The moderate width of 74.8 in is advantageous for parking in standard spaces; according to data, the vehicle is only 2.4 in longer than a typical parking spot but 23.6 in narrower than the parking space – width-wise parking gaps are usually sufficient.

The lower height facilitates underground garage access and improves the appearance.

Trunk Usability and Flexibility

Opening and loading height: The tailgate opens electrically as standard and can be operated by foot gesture if comfort access is ordered. The loading edge is at 27.2 in, with a step to the loading floor of 5.5 in.

Usability: The cargo opening is typically relatively small for sedans, which complicates loading bulky items. Inside, the loading floor is narrow, the side walls are heavily contoured, and the rear seatbacks do not create a flat loading surface (backs rise noticeably).

There is no storage space under the floor compartment, and attachment points are limited to a few relatively high-placed hooks.

Variability: The rear seatbacks fold down in a three-part split (asymmetric opening via levers in the trunk, middle part separately via interior). This facilitates flexible loading but folding back requires some effort; the middle seatbelt can interfere when folding down.

Everyday use: For regular luggage and groceries, the cargo space is practical and generously sized. Those frequently transporting bulky or wide items will encounter limitations due to the small opening, narrow loading area, and uneven loading surface. The electric tailgate and moderate loading edge increase comfort.

General Model Information

Familiarity: The BMW 5 Series is an established mid- to upper mid-range model with sporty comfort character.

Special features/characteristics: Electric tailgate with foot gesture option, three-part split rear seatbacks, no underfloor compartment, contoured interior, and no fully flat loading surface with folded seats. Curb weight is about 1,800 kg, payload 535 kg.

Value assessment: The 5 Series offers a good combination of comfort, variability, and moderate trunk volume in its segment. Strengths are workmanship, equipment, and the practical electric tailgate; weaknesses include limited trunk usability (opening, shape, few attachment options) and lack of underfloor solutions.

Competitors: Direct competitors are the Mercedes E-Class, the Audi A6, and models like the Lexus ES. Compared to these, the BMW offers a comparable balance of comfort and variability but differs in trunk shape and usability.

What fits in the BMW 5 Series trunk?

Tested: 100 products — 78 fit with seats up, 10 only with seats folded.

Info

To check whether products fit the trunk, we use a purpose-built database of 3D models of 800+ trunks.
We offer the same method to online retailers at car-go.fit.
On Trunk 3D you can place these products in your trunk and arrange them with other items.
Missing an important product? Contact us at support@kofferraum.org.
