BMW · Hatchback · 2019

BMW i3 Trunk Dimensions

Dimensions
Trunk space

BMW i3 - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions BMW i3 (Hatchback). Access in 3D

Trunk dimensions BMW i3 (Hatchback). Access in 3D

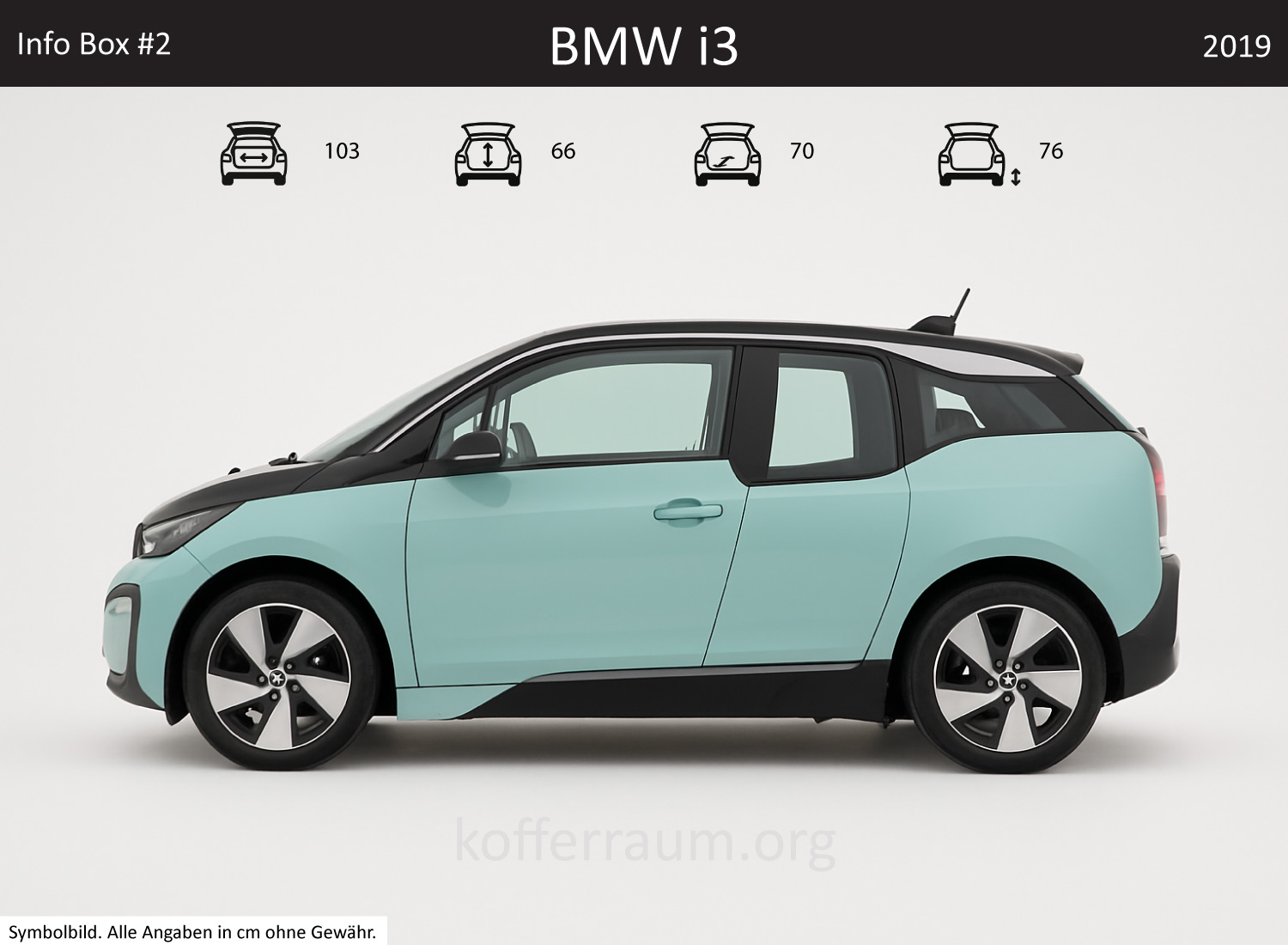

BMW i3 trunk dimensions – detail — Detail dimensions BMW i3

BMW i3 (Hatchback) Trunk Dimensions

BMW i3 (Hatchback) Trunk Dimensions
Measurement	Value
Width of Trunk	38.4 in
Length of Trunk	27.6 in
Height of Trunk	25.9 in

BMW i3 (Hatchback) Car Dimensions

BMW i3 (Hatchback) Car Dimensions
Measurement	Value
Length of Car	157.9 in
Width of Car	69.9 in
Height of Car	62.1 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Inglesina Sketch

Fits (seats up)

into the BMW i3

All Shop

Suitcases

Travelhouse Tokyo 110L

Fits (seats up)

into the BMW i3

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the BMW i3

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the BMW i3

All Shop

Mobility aids

VEEFA lite

Fits (seats up)

into the BMW i3

All Shop

Garden tools

TrendLine 15L

Fits (seats up)

into the BMW i3

All Shop

Ladders

SONGMICS 4 Stufen

Fits (seats up)

into the BMW i3

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the BMW i3

All Shop

Boxes

Auer Packaging 60x40x32

Fits (seats up)

into the BMW i3

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions BMW i3

The BMW i3 (2019) offers a trunk with a volume of about 9.2 cu ft, increasing to approximately 38.8 cu ft when the rear seats are folded down. The rear bench is split 60:40, allowing flexibility for transport. The interior is modernly designed, focusing on sustainability and high-quality materials.

The trunk dimensions vary slightly within the model range, but the shape remains compact and practical. The loading edge is relatively low, facilitating loading and unloading. Typical features include high functionality and thoughtful interior design that support the vehicle's urban use.

Model Information

The BMW i3 is a fully electric vehicle first introduced in 2013. The latest series of the i3 combines innovative technology with modern design. The i3 is known for its compact construction and environmentally friendly drive technology.

With an emission-free electric drive, the i3 offers a range of up to 300 km, depending on driving style and conditions. The vehicle is suitable for both city traffic and short trips and stands out due to its sustainable materials and use of recycled components.

Variants of the Same Series

The BMW i3 is mainly offered in two variants: the i3 and the i3s. The i3s offers a sportier setup with higher performance and a sportier chassis.

Both models are hatchback variants but differ in motor power and driving dynamics. There are no sedan, convertible, or wagon versions of the i3, simplifying the selection and avoiding potential confusion.

Yearly Differences

The BMW i3 has undergone several model changes since its introduction. The most significant changes affecting body and trunk dimensions occurred in 2017 when the vehicle received a facelift.

This update included improved battery technology that increased the vehicle's range and efficiency but did not bring significant changes to the trunk dimensions. Minor adjustments in subsequent years mainly affected equipment and technology, not the basic dimensions.

Direct Competition

In the same price range and size, there are several comparable models, including the Nissan Leaf and Hyundai Kona Electric. The Nissan Leaf offers a trunk volume of about 15.4 cu ft, making it superior in this regard.

The Hyundai Kona Electric, on the other hand, has a volume of about 11.7 cu ft. These differences in trunk volume can be decisive for buyers who need a lot of cargo space.

More Affordable Alternatives

For buyers looking for more affordable alternatives with similar trunk dimensions, models like the Renault Zoe or Kia e-Niro are recommended.

The Renault Zoe has a trunk volume of around 11.9 cu ft, while the Kia e-Niro offers about 15.9 cu ft. These vehicles provide good value for money and are worth considering if trunk space plays an important role.

Trunk space BMW i3

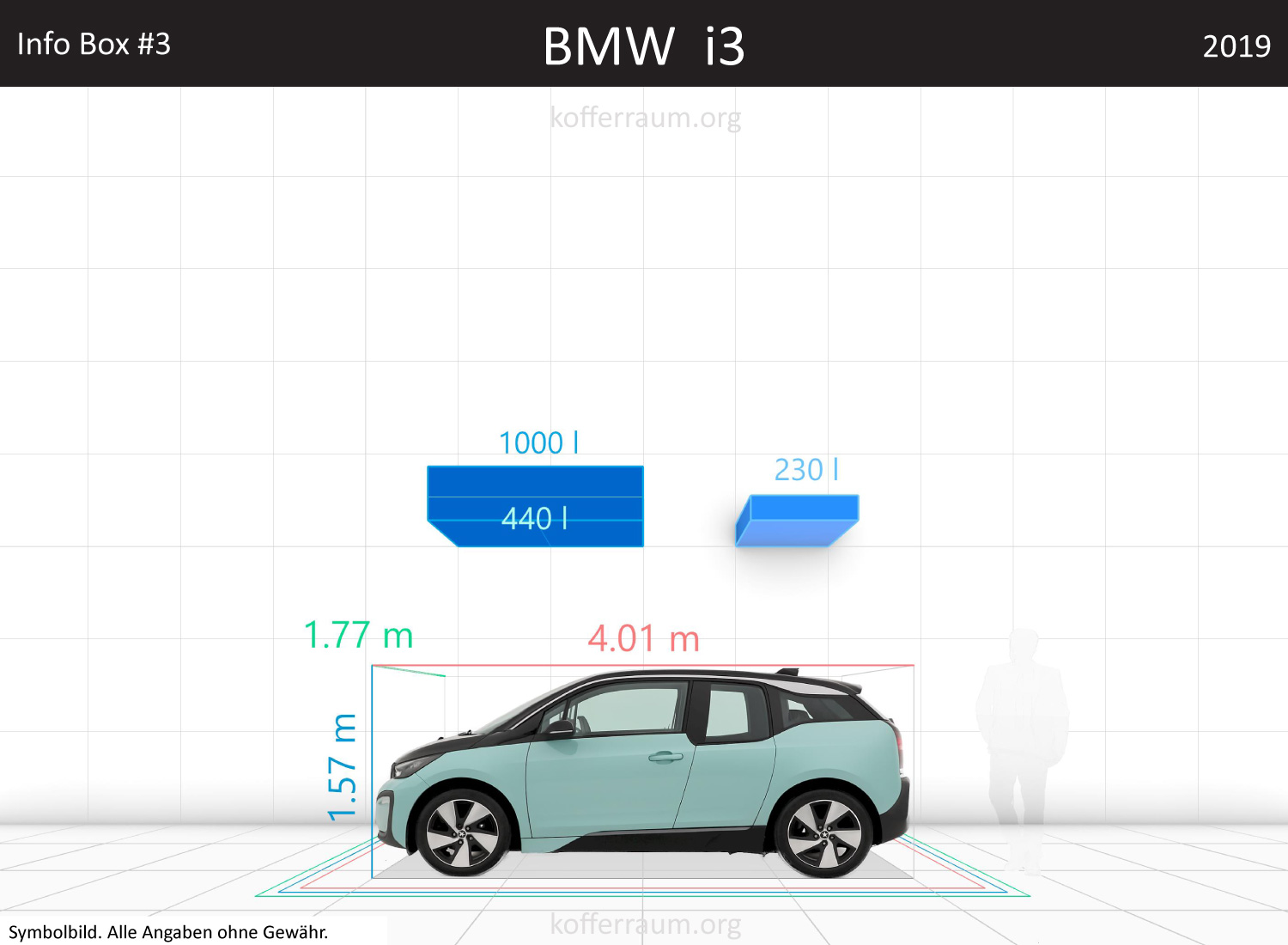

BMW i3 trunk space volume — Trunk volume BMW i3

Trunk Volume

The BMW i3 (2019) offers different values in various measurements: manufacturer specification 9.2 cu ft, independent measurements typically 7.2 cu ft, and an average value of about 8.2 cu ft.

Compared to an average car, the cargo compartment is thus about 44.64% smaller. The trunk accounts for around 4.1% of the total vehicle volume (standard measure LxWxH/2) — also below average.

With the rear seats folded down, the usable space grows significantly: measured up to the window sill 15.4 cu ft (independent), and roof-high between 32 cu ft (independent) and 38.8 cu ft (manufacturer specification).

Practically, this means: the standard cargo space is sufficient for everyday shopping and smaller luggage, while larger or bulky loads are only possible with folded seats.

Vehicle Size and Parking Friendliness

The i3 is compact: 157.9 in long, 70.1 in wide, and 62.2 in high. Compared to the average car, it is 21.7 in shorter, 3.1 in narrower, and about 0.4 in taller.

The compact exterior dimensions make the i3 especially parking-friendly and maneuverable in the city; parking and maneuvering are significantly easier compared to mid-size cars.

Note the loading edge at about 30.3 in above road level — this facilitates loading at hip height but still requires lifting for heavy items. The narrow body helps in tight parking spaces, but wheelbases and large exterior mirrors should still be considered.

Trunk Usability and Flexibility

Everyday use and limitations at a glance:

Practical base area: The trunk floor is at the height of the loading edge and forms a level loading surface with folded rear seats — positive for loading and transporting bulky items.
No underfloor compartment: There is no additional storage space under the trunk floor.
Limited interior lighting: Only one lamp in the trunk, often too little light in darkness.
Tailgate: Manually opened, no electric drive; the hatch does not open very wide — people over about 1.80 m should watch the door lock at the upper area (risk of bumping).
Seat flexibility: The rear seatback is split-folding in the middle and can be easily folded down via pull loops both from the trunk and the interior — good flexibility for combinations of passengers and cargo.
Load capacity: Curb weight 1,345 kg with a payload of 365 kg — long trips with four adults plus lots of luggage can quickly max out the payload.

Conclusion: For daily trips, shopping, and occasional larger transports (with folded rear seats), the i3 is suitable. For regular transport of very large or heavy items, the limited base area, manual (not widely opening) tailgate, and payload limit are restrictive.

General Model Information

Familiarity: The BMW i3 is considered one of the best-known electric small car models with distinctive design and urban concept.
Special features: Lightweight and city electric concept, no center tunnel in the rear (practical for entry and exit), standard LED lights from facelift, optional adaptive LED with cornering light and high beam assistant.
Characteristics / Weaknesses: No electric tailgate, only one interior light in the trunk, no underfloor compartment, optional keyless system with known security concerns (signal extender / vulnerability), missing grab handles in the rear.
Price-performance ratio: As a premium small car, the i3 commands a comparatively high price for the segment; buyers pay more for brand image, electric drive technology, and urban usability than for pure cargo space size.
Competitor models: Comparable electric small cars and compact EVs include Renault ZOE, Nissan Leaf (with somewhat larger interior), and smaller city EVs like Smart EQ. The i3 positions itself more as an urban premium character carrier with a unique concept than as a pure space giant.

In short: The i3 is a very parking-friendly, city-suitable electric small car with limited but variably usable trunk space. Those who frequently transport large or heavy loads should consider the payload and reduced base area; for everyday city use and occasional folded-seat transports, the i3 is well suited.

What fits in the BMW i3 trunk?

Tested: 100 products — 49 fit with seats up, 42 only with seats folded.

Info

To check whether products fit the trunk, we use a purpose-built database of 3D models of 800+ trunks.
We offer the same method to online retailers at car-go.fit.
On Trunk 3D you can place these products in your trunk and arrange them with other items.
Missing an important product? Contact us at support@kofferraum.org.
