Citroen · Minivan · 2016

Citroën C4 Picasso Trunk Dimensions

Dimensions
Trunk space

Citroen C4 Picasso - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Citroen C4 Picasso (Minivan). Access in 3D

Trunk dimensions Citroen C4 Picasso (Minivan). Access in 3D

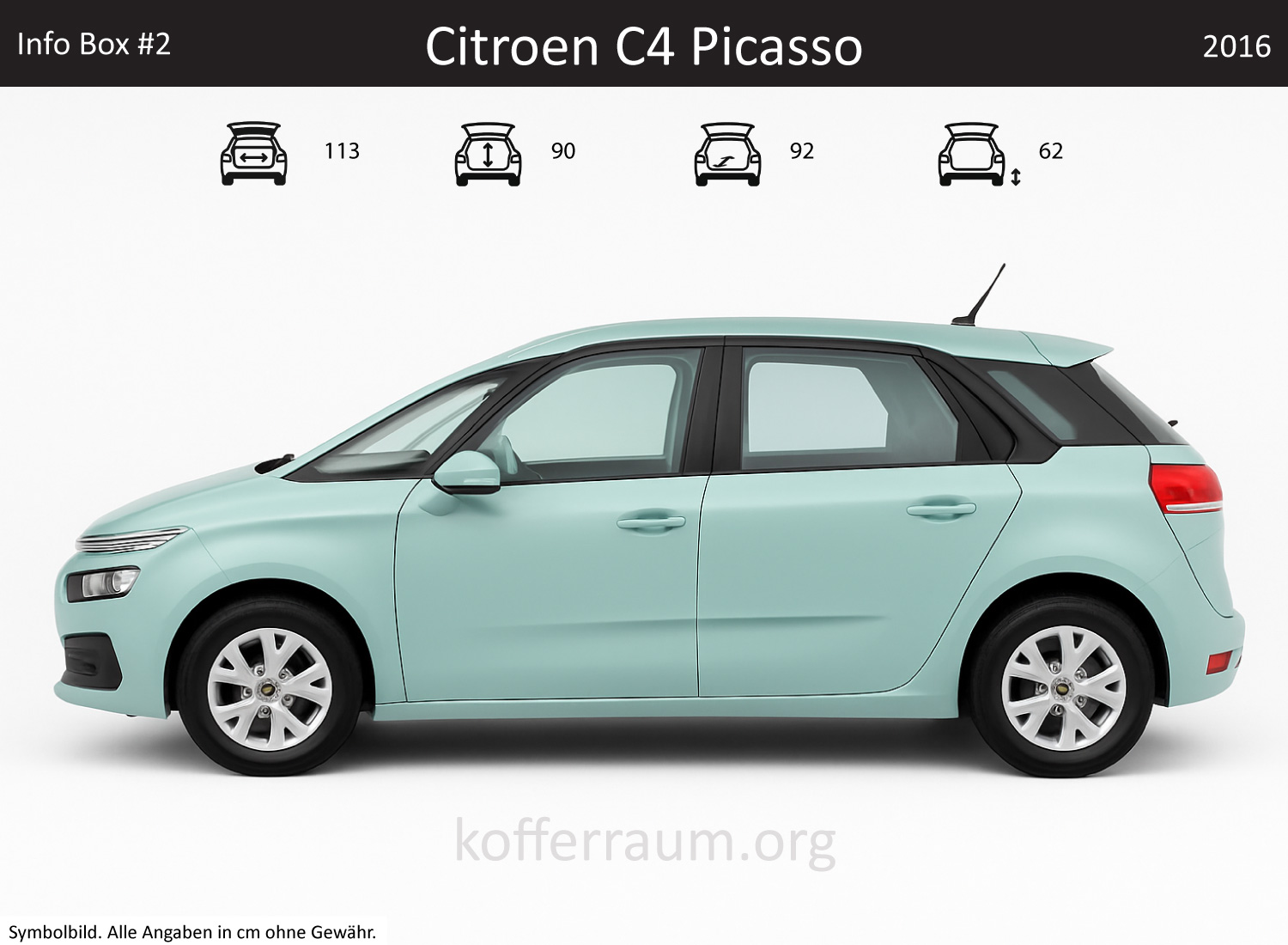

Citroen C4 Picasso trunk dimensions – detail — Detail dimensions Citroen C4 Picasso

Citroen C4 Picasso (Minivan) Trunk Dimensions

Citroen C4 Picasso (Minivan) Trunk Dimensions
Measurement	Value
Width of Trunk	40.2 in
Length of Trunk	36.3 in
Height of Trunk	35.4 in

Citroen C4 Picasso (Minivan) Car Dimensions

Citroen C4 Picasso (Minivan) Car Dimensions
Measurement	Value
Length of Car	174.3 in
Width of Car	71.9 in
Height of Car	63.4 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Bugaboo Cub All-Terrain

Fits (seats up)

into the Citroen C4 Picasso

All Shop

Suitcases

Hanke Reisekoffer 28Inch 114L

Fits (seats up)

into the Citroen C4 Picasso

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the Citroen C4 Picasso

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the Citroen C4 Picasso

All Shop

Camping boxes

squiq Traveler compact

Fits (seats up)

into the Citroen C4 Picasso

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the Citroen C4 Picasso

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 33cm faltbar

Fits (seats up)

into the Citroen C4 Picasso

All Shop

Ladders

Huini 2,5+2,5m

Fits (seats up)

into the Citroen C4 Picasso

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Citroen C4 Picasso

All Shop

Boxes

Auer Packaging 80x60x52

Fits (seats up)

into the Citroen C4 Picasso

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Citroën C4 Picasso

The 2016 Citroën C4 Picasso offers a trunk with a volume of 19 cu ft with the rear seats upright and up to 22.2 cu ft with the seats folded down.

The rear bench is split in a 2-3 seat ratio, allowing flexibility when transporting passengers and cargo. The interior is functionally designed, with a low loading edge that facilitates loading and unloading.

The trunk dimensions vary within the model range, with the shape of the trunk favoring practical use. Typical features include good accessibility and the ability to create additional storage space by folding down seats. The C4 Picasso is thus well suited for families and frequent travelers.

Model Information

The Citroën C4 Picasso is a compact van known for its versatility and family-friendliness. The latest series combines modern design with practical features that make everyday life easier.

The C4 Picasso offers seating for up to seven people and is characterized by a high seating position as well as good all-around visibility. The equipment includes modern technologies that enhance both comfort and safety.

Variants of the Same Series

The Citroën C4 Picasso is offered in various variants that differ in body style. These include the C4 Picasso, designed as a classic van, and the C4 Spacetourer, which uses a similar platform but focuses differently on flexibility and cargo space.

It is important not to confuse these models as they offer different features and equipment.

Yearly Differences

The Citroën C4 Picasso has been revised multiple times since its introduction in 2006. Especially the models from 2013 and 2016 brought significant changes regarding body dimensions and trunk size.

The newer models offer improved space utilization and an optimized shape that makes the trunk more efficient. These changes can affect the overall size and volume of the trunk.

Direct Competitors

In the same price range and size, the Citroën C4 Picasso competes with models like the Renault Scénic and the Volkswagen Touran.

The Renault Scénic offers a trunk volume of about 18.4 cu ft, while the Volkswagen Touran boasts 26.2 cu ft. These differences in trunk volume can be decisive for buyers who place special value on cargo space.

More Affordable Alternatives

For buyers looking for more affordable alternatives with similar trunk dimensions, models like the Dacia Lodgy or the Skoda Roomster are interesting. The Dacia Lodgy offers a trunk volume of up to 29.2 cu ft, while the Skoda Roomster holds about 18.7 cu ft.

These models provide a cost-effective solution for families or individuals who need a lot of cargo space without compromising on quality and functionality.

Cargo space Citroën C4 Picasso

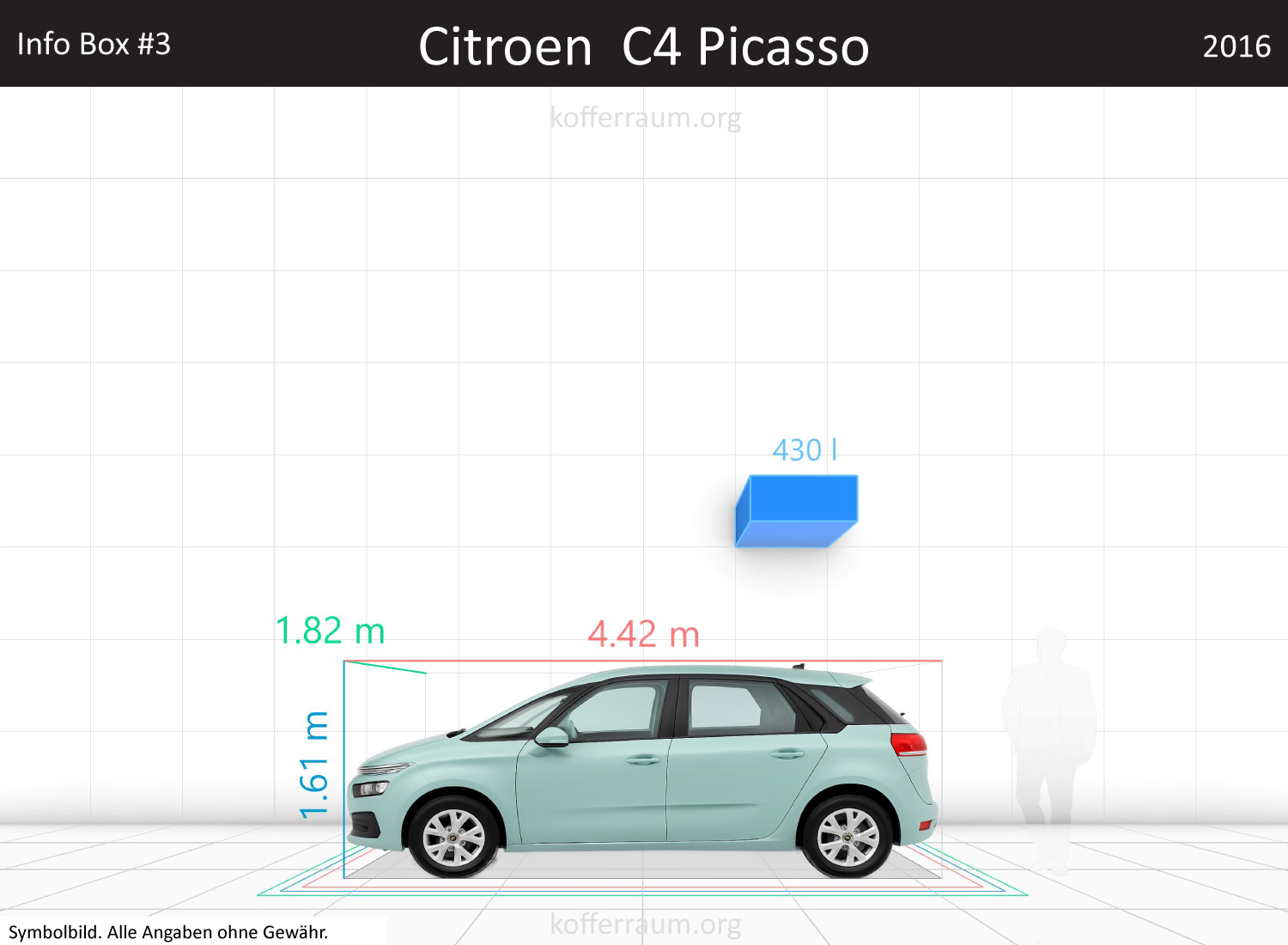

Citroen C4 Picasso trunk space volume — Trunk volume Citroen C4 Picasso

Trunk Volume

The Citroen C4 Picasso offers a trunk volume of 425 liters (manufacturer and independent measurement). This is about 1.19 % larger than the average car and corresponds to around 6.5 % of the total vehicle volume.

Removing the cover and loading up to the roof increases the volume to 575 liters. Folding down the rear seatbacks results in 925 liters up to the window line, and even 1,525 liters up to the roof.

Everyday impact: The standard volume of 425 L is sufficient for daily use (shopping, stroller, suitcases) and can be significantly expanded by simply folding down individual seats or removing the cover — practical for larger shopping trips, vacations, or furniture transport.

Vehicle Size and Parking Friendliness

The C4 Picasso measures 443 cm length, 183 cm width, and 161 cm height with an unladen weight of 1,395 kg. Compared to an average car, it is 13 cm shorter (-2.9 %), 2 cm narrower (-1.3 %), and 5 cm taller (+2.9 %). Compared to a standard parking space, it is significantly shorter (-57 cm) and narrower (-67 cm).

Everyday impact: The reduced length and slight narrowness make parking and maneuvering in the city easier. The slightly greater height should be considered in underground garages or low clearances.

Overall, the vehicle is more parking-friendly than many larger vans, but the width remains sufficient for good interior comfort.

Trunk Usability and Flexibility

Practical features:

Large, well-usable opening; loading edge only 63 cm high (an advantage when loading).
When unloading, there is a disturbing 7 cm high step in the loading floor.
Three individually foldable rear seats (easily released by a strap) offer high variability; the front passenger seatback can also be folded for long items.
Storage space under the trunk floor, four sturdy tie-down rings, a side net, and shopping hooks.
Good interior lighting with a removable lamp that can be used as a flashlight.

Practical limitations:

The straps for folding down are not always optimally reachable when seats are pushed all the way back.
The rear center seatbelt is inconveniently attached to the roof and must be unhooked awkwardly when fully using the trunk.
The belt buckle holders on the C-pillars are magnetic but could hold more firmly.
The tailgate opens wide but swings slowly and sometimes needs to be pushed; an electric tailgate is only optional.
At the side corners of the open tailgate, tall people can bump their heads.

Everyday impact: The C4 Picasso is very versatile and practical — low loading edge and many fixing points make loading and secure strapping easier.

Minor weaknesses (step in the loading floor, inconvenient belt attachment, handle positions on the tailgate) are annoying but do not reduce practical usability for family and leisure.

General Model Information

Familiarity and positioning: The C4 Picasso is a compact family van/MPV focused on variable interior space and everyday usability.

Special features and peculiarities: High variability of the rear seats, low loading edge, versatile interior layout, and good lighting are defining strengths.

Peculiarities include the sometimes inconveniently placed handle recesses on the tailgate, the magnetic but weak belt holders, and the roof-mounted rear center seatbelt.

Price/performance ratio: The combination of flexible interior and practical details makes the C4 Picasso attractive in its class — equipment and electric helpers (e.g., electric tailgate) can significantly influence comfort and price.

Competitor models: Comparable vehicles in this segment include the Renault Scénic, Volkswagen Touran, and Ford C-Max — all also focused on family comfort and variability.

What fits in the Citroen C4 Picasso trunk?

Tested: 100 products — 79 fit with seats up, 17 only with seats folded.

Info

To check whether products fit the trunk, we use a purpose-built database of 3D models of 800+ trunks.
We offer the same method to online retailers at car-go.fit.
On Trunk 3D you can place these products in your trunk and arrange them with other items.
Missing an important product? Contact us at support@kofferraum.org.
