Citroën C5 Tourer Trunk Dimensions

Dimensions
Trunk space

Citroen C5 Tourer - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Citroen C5 Tourer (Wagon). Access in 3D

Trunk dimensions Citroen C5 Tourer (Wagon). Access in 3D

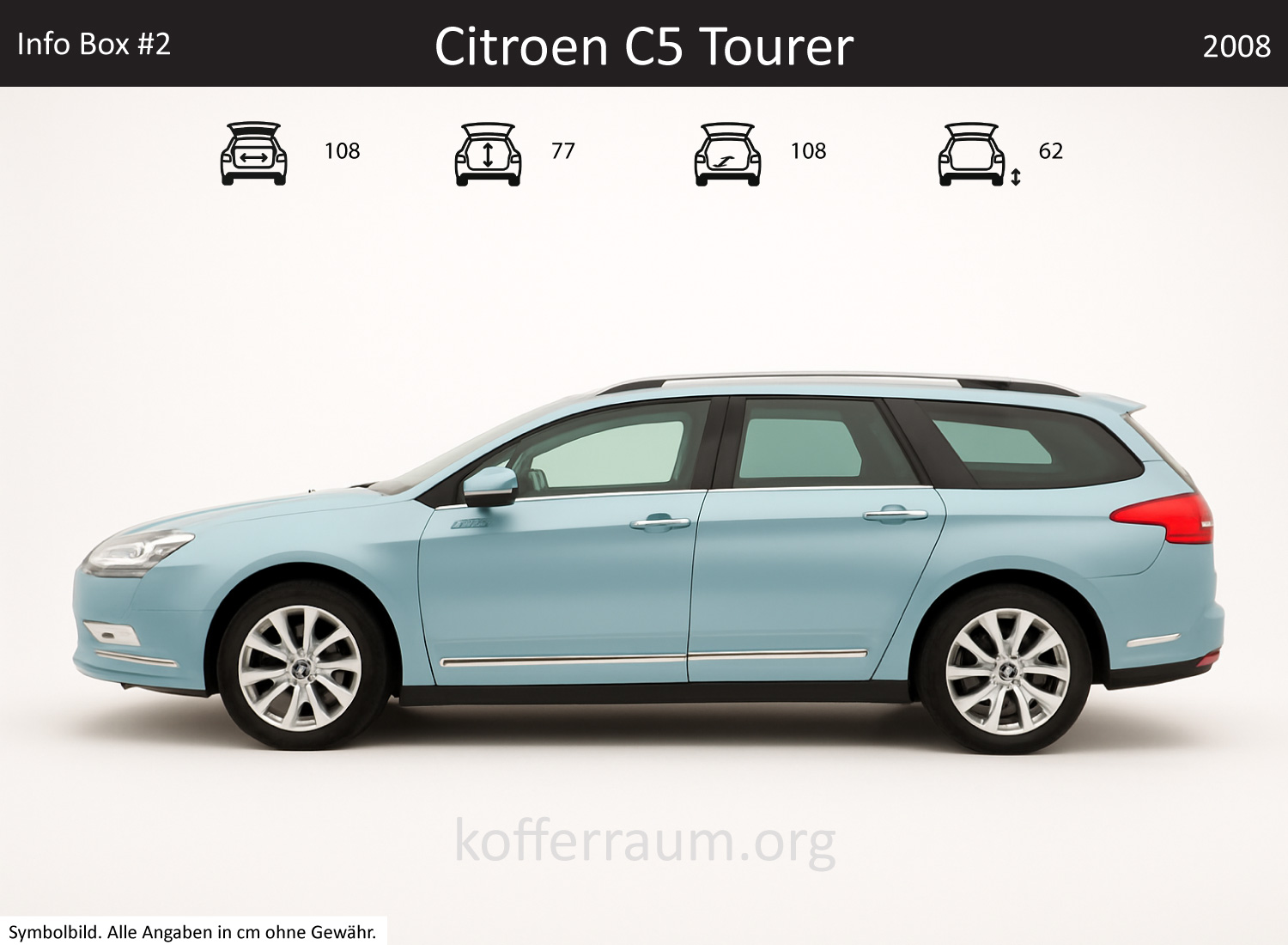

Citroen C5 Tourer trunk dimensions – detail — Detail dimensions Citroen C5 Tourer

Citroen C5 Tourer (Wagon) Trunk Dimensions

Citroen C5 Tourer (Wagon) Trunk Dimensions
Measurement	Value
Width of Trunk	42.1 in
Length of Trunk	42.3 in
Height of Trunk	30.3 in

Citroen C5 Tourer (Wagon) Car Dimensions

Citroen C5 Tourer (Wagon) Car Dimensions
Measurement	Value
Length of Car	190.1 in
Width of Car	73 in
Height of Car	59.5 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Bugaboo Cub All-Terrain

Fits (seats up)

into the Citroen C5 Tourer

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the Citroen C5 Tourer

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the Citroen C5 Tourer

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the Citroen C5 Tourer

All Shop

Camping boxes

squiq Traveler regular

Fits (seats up)

into the Citroen C5 Tourer

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the Citroen C5 Tourer

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 33cm faltbar

Fits (seats up)

into the Citroen C5 Tourer

All Shop

Ladders

Huini 2,5+2,5m

Fits (seats up)

into the Citroen C5 Tourer

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Citroen C5 Tourer

All Shop

Boxes

Auer Packaging 80x60x52

Fits (seats up)

into the Citroen C5 Tourer

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Citroën C5 Tourer

The Citroën C5 Tourer 2008 offers a generous trunk with a volume of about 17.8 cu ft, which can be expanded up to 56.5 cu ft when the rear seats are folded down.

The rear bench is split 60:40, allowing flexibility when transporting luggage. The interior is functionally designed, with a low loading edge that makes loading and unloading easier.

The trunk dimensions vary within the model range, but the shape remains consistently practical and spacious. Typical features include good accessibility and well-thought-out storage compartments that simplify everyday use. The C5 Tourer thus combines a high level of practicality with an appealing design.

Model Information

The Citroen C5 Tourer is a versatile vehicle known for comfort and functionality. The latest series of the C5 Tourer combines elegant lines with practical features and targets buyers who need both style and space.

The hatchback variant offers an attractive look and good aerodynamics, contributing to a pleasant driving experience. The C5 Tourer is available with various engines, including both gasoline and diesel options, and offers a range of trim levels to meet individual buyer needs.

Variants of the Same Series

The Citroen C5 is available in several variants, including sedan, wagon, and hatchback. It is important not to confuse these models, as they have different body styles and characteristics.

While the sedan focuses more on elegance and sporty lines, the wagon offers more storage space and flexibility. The hatchback combines elements of both variants and provides a balanced mix of style and practicality.

Yearly Differences

The Citroen C5 Tourer was introduced in 2008 and received a facelift in 2010, which brought some changes to the body and dimensions. These changes affected both the exterior measurements and the interior design, directly impacting the trunk volume.

The model update also introduced new technologies and comfort features that improved the driving experience. Since 2017, no significant changes have been made, meaning the trunk dimensions have remained constant since then.

Direct Competition

In the same price range and size, the Citroen C5 Tourer competes with models like the Volkswagen Passat Variant and the Ford Mondeo wagon. The Passat Variant offers a trunk volume of about 23 cu ft, making it superior in this regard.

The Ford Mondeo wagon, on the other hand, has a comparable volume of around 18.5 cu ft. These differences can be decisive for buyers who place special emphasis on cargo space.

More Affordable Alternatives

For buyers looking for more affordable alternatives with similar trunk dimensions, models like the Skoda Octavia wagon or the Dacia Logan MCV could be considered.

The Skoda Octavia wagon offers a trunk volume of about 21.5 cu ft, while the Dacia Logan MCV with about 20.2 cu ft is also a good option. Both models offer good value for money and are interesting for buyers seeking a high level of functionality at a lower price.

Trunk space Citroën C5 Tourer

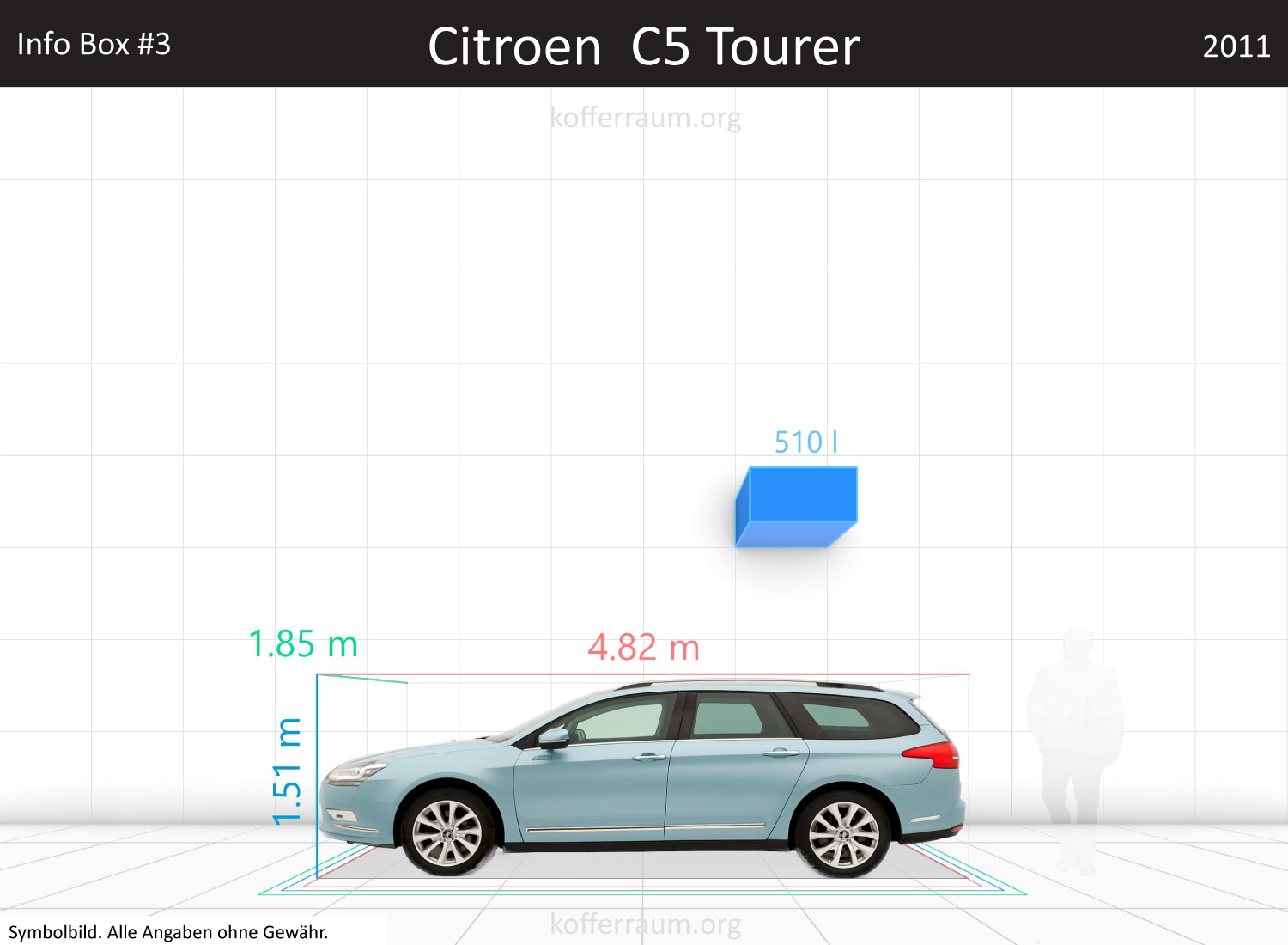

Citroen C5 Tourer trunk space volume — Trunk volume Citroen C5 Tourer

Trunk Volume

The Citroen C5 Tourer wagon (2011) offers a trunk volume of 17.8 cu ft (manufacturer specification and independent measurement identical).

This volume is about 20.24% above average and accounts for around 7.5% of the total vehicle volume (1.1 percentage points more than average). Folding down the rear seat increases the loading volume to 32 cu ft (measured up to the window sill).

Everyday effect: The capacity easily accommodates several large suitcases, strollers, or extensive shopping trips. For long items or very bulky cargo, the folded rear seats are practical, although the measurement up to the window sill means the absolute loading length may be limited depending on shape.

Vehicle Size and Parking Friendliness

Dimensions: 190.2 in length, 72.8 in width, 59.4 in height. Compared to an average car, the C5 Tourer is 10.6 in longer (≈5.9%), practically the same width (+0.1%), and 2 in lower (-3.3%). According to data, it is 6.7 in shorter and 25.6 in narrower than a standard parking space, indicating good parking fit.

Everyday effect: Despite the wagon length, the vehicle remains manageable in normal parking spaces. The slightly lower height can positively affect stability and aerodynamics but makes little difference when loading and unloading.

Trunk Usability and Flexibility

The trunk is quite deep and has a smooth, rectangular floor area, allowing efficient use of space. The outer loading edge is at 24.4 in (only about 2.4 in obstructive from inside), which facilitates lifting heavy items. The tailgate opens to just over 1.80 m – the opening height is rated as only satisfactory.

Practical details: There are asymmetrically foldable rear seats, small nets in the side panels, well-usable underfloor compartments, and a small pass-through in the rear seat backrest (for long but thin items). A partition net is present.

Limitations: The rear seat folding mechanism is cumbersome (the bench must first be raised, then the backrest folded down) and may require pre-adjustment of the front seats; when folding back, seatbelt straps can get pinched. The pass-through is relatively small.

Everyday effect: Very good everyday usability for suitcases, shopping, and bulky items thanks to shape, depth, and low loading edge. For frequent folding of the rear seat or quick transport of very long items, however, the operating comfort and pass-through are suboptimal – handling here may require additional time.

General Model Information

Familiarity/Positioning: The C5 Tourer is considered a spacious wagon in its class and is often praised for its loading capacity. In tests and comparisons, the trunk with 17.8 cu ft is still named as one of the largest in its class.

Special features/peculiarities: Notable are the generous loading volume, rectangular floor area, low loading edge, and additional underfloor compartments. Negative points include the rather cumbersome rear seat folding mechanism and the only moderate tailgate opening height.

Price-performance assessment: Space and practical details are strong arguments for buyers who want to transport a lot. Ergonomic weaknesses in the seat folding mechanism and the small pass-through slightly reduce everyday suitability.

Competitor models: Typical competitors in the same class are e.g. VW Passat Variant, Ford Mondeo wagon, and Opel Insignia Sports Tourer. Compared to these models, the C5 scores especially with a competitive cargo volume and good trunk usability.

What fits in the Citroen C5 Tourer trunk?

Tested: 100 products — 87 fit with seats up, 9 only with seats folded.

Info

To check whether products fit the trunk, we use a purpose-built database of 3D models of 800+ trunks.
We offer the same method to online retailers at car-go.fit.
On Trunk 3D you can place these products in your trunk and arrange them with other items.
Missing an important product? Contact us at support@kofferraum.org.
