Citroen · Wagon · 2024

Citroën C5 X Trunk Dimensions

Dimensions
Trunk space

Citroen C5 X - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Citroen C5 X (Wagon). Access in 3D

Trunk dimensions Citroen C5 X (Wagon). Access in 3D

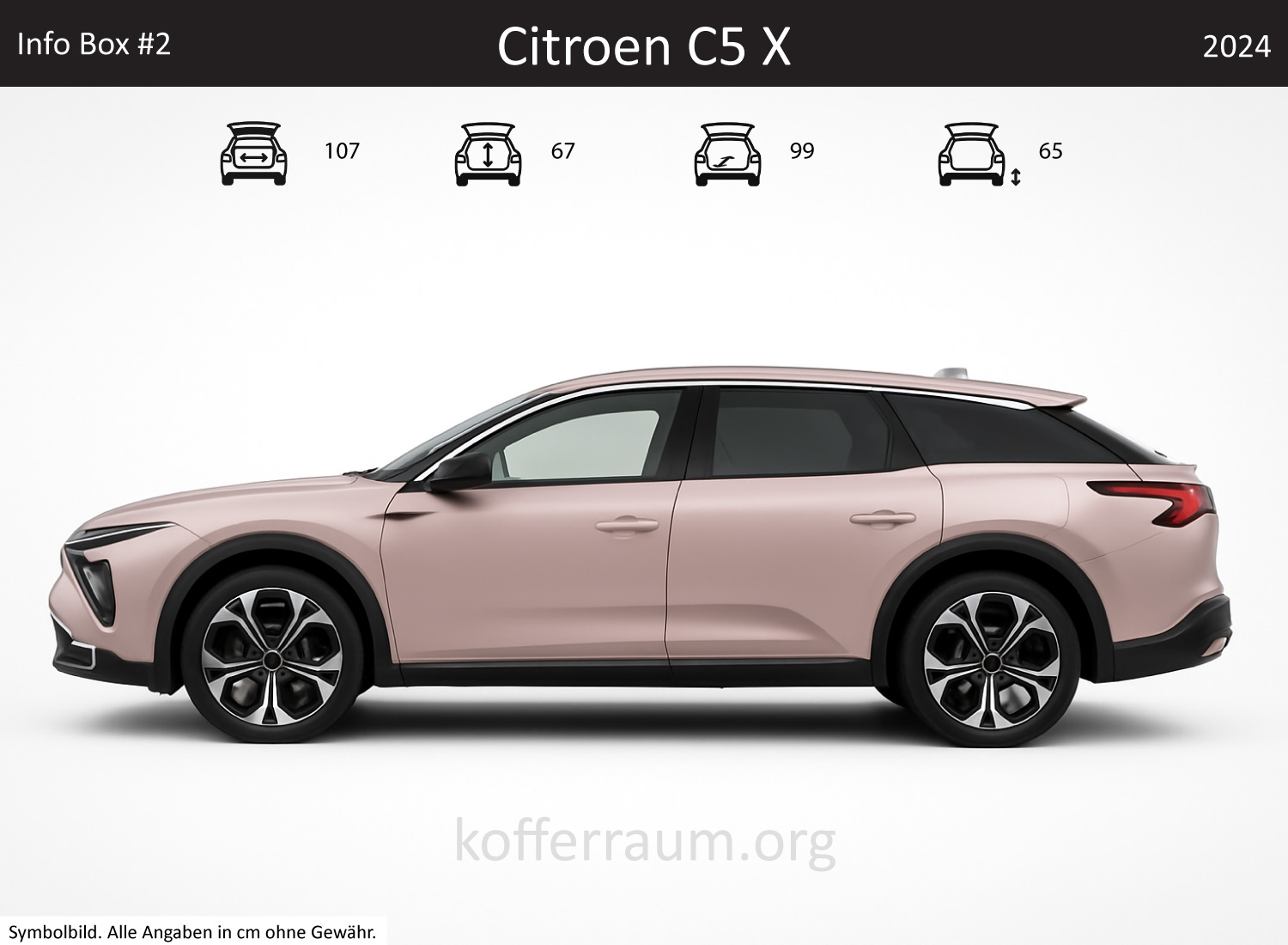

Citroen C5 X trunk dimensions – detail — Detail dimensions Citroen C5 X

Citroen C5 X (Wagon) Trunk Dimensions

Citroen C5 X (Wagon) Trunk Dimensions
Measurement	Value
Width of Trunk	37.2 in
Length of Trunk	39 in
Height of Trunk	26.5 in

Citroen C5 X (Wagon) Car Dimensions

Citroen C5 X (Wagon) Car Dimensions
Measurement	Value
Length of Car	189.2 in
Width of Car	71.5 in
Height of Car	58.5 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Maxi-Cosi Zelia Select+

Fits (seats up)

into the Citroen C5 X

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the Citroen C5 X

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the Citroen C5 X

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the Citroen C5 X

All Shop

Mobility aids

Todimart X11

Fits (seats up)

into the Citroen C5 X

All Shop

Garden tools

TrendLine 85L

Fits (seats up)

into the Citroen C5 X

All Shop

Ladders

SONGMICS 3 Stufen

Fits (seats up)

into the Citroen C5 X

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Citroen C5 X

All Shop

Boxes

Auer Packaging 60x40x32

Fits (seats up)

into the Citroen C5 X

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Citroën C5 X

The Citroen C5 X wagon 2024 offers a trunk volume of about 19.1 cu ft, which can be expanded up to 57.9 cu ft when the rear seats are folded down. The rear bench is split 60:40, allowing flexibility when transporting larger items. The interior is modernly designed, with high-quality materials and a practical layout.

The trunk dimensions vary within the model range, with the shape mostly rectangular, which facilitates loading. The loading edge is relatively low, making access to the trunk comfortable. Overall, the C5 X offers a good combination of practicality and style, ideal for families and frequent travelers.

Model Information

The Citroen C5 X is a modern vehicle that combines the characteristics of a wagon with an elegant design. It was developed to offer both comfort and functionality.

With a length of about 4.80 meters and a wide body, the C5 X is suitable for both city traffic and longer trips. The latest series of the C5 X offers a variety of technological features, including an advanced infotainment system and numerous safety functions.

Variants of the Same Series

The Citroen C5 X is mainly offered as a wagon. However, there are other models in the C5 range, such as the sedan and the hatchback.

These models differ in body style and dimensions, which is important for buyers with specific vehicle type requirements. For example, the sedan offers a sportier silhouette, while the wagon provides more space and flexibility.

Yearly Differences

The Citroen C5 X was introduced in 2021, and since then there have been no significant model changes affecting the body or trunk dimensions.

Previously, the Citroen C5 was available in various generations, with the last generation before the C5 X produced from 2008 to 2017. These models had different trunk volumes, which were smaller compared to the C5 X.

Direct Competitors

In the same price range and size as the Citroen C5 X, models like the Skoda Superb wagon and Volkswagen Passat Variant can be found. The Skoda Superb wagon offers a trunk volume of up to 23.3 cu ft, making it a space marvel in this category.

The Volkswagen Passat Variant offers a volume of about 23 cu ft. In comparison, the C5 X has a smaller trunk volume but scores with a flexible interior and comfortable equipment.

More Affordable Alternatives

More affordable alternatives with similar trunk dimensions are the Dacia Logan MCV and the Kia Ceed wagon. The Dacia Logan MCV offers a trunk volume of about 20.2 cu ft, making it an attractive option for buyers on a limited budget.

The Kia Ceed wagon has a volume of around 22.1 cu ft. Both models offer a good combination of price-performance ratio and functionality but may not match the Citroen C5 X in terms of equipment and comfort.

Cargo space Citroën C5 X

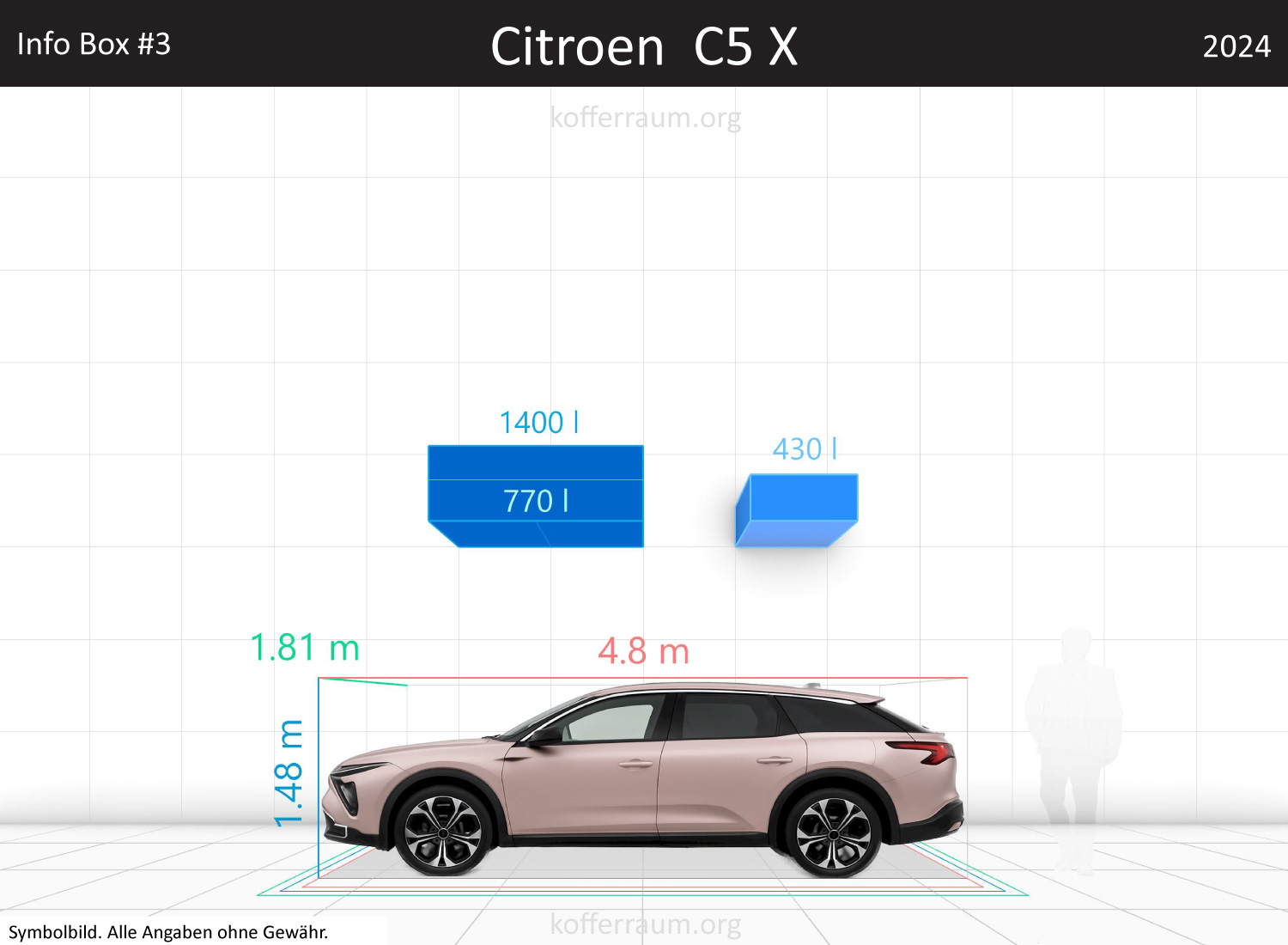

Citroen C5 X trunk space volume — Trunk volume Citroen C5 X

Trunk Volume

The Citroen C5 X shows varying figures for the cargo space. According to the data package, an average value is about 15.3 cu ft (which is +2.98 % compared to an average car). Manufacturer figures state 17.1 cu ft, while independent measurements come to 13.4 cu ft under the cover.

Removing the cover and using the space up to the window sill with the rear seats folded down, measurements show up to 27 cu ft available; fully measured up to behind the front seats, it is up to 43.1 cu ft (manufacturer even states 55.8 cu ft up to roof height).

Practical consequences: For everyday use, the value of 13.4 cu ft under the cover is most relevant – this corresponds to the realistically usable trunk volume in normal use.

Those who regularly transport large or tall loads benefit from folding down the rear seats (up to 27 cu ft to window sill, or up to 43.1 cu ft with full use), but must accept restrictions in height and loading floor.

Vehicle Size and Parking Friendliness

The C5 X is 189.4 in long, 71.7 in wide, and 58.7 in high. This makes it about 9.8 in longer (+5.4 %) than an average car, 1.6 in narrower (-1.9 %), and 3.1 in lower (-5 %). Compared to a standard parking space, it is 7.9 in shorter and 27.2 in narrower.

Everyday effect: The extra length can make maneuvering in tight city areas or parking somewhat more challenging, while the slightly narrower width makes parking in tight spots a bit easier.

Overall, the C5 X remains parkable in its segment but requires a bit more planning in tight parking spaces than shorter compact cars.

Trunk Usability and Flexibility

Important details regarding user-friendliness:

The loading edge is pleasantly low at 25.2 in, making loading and unloading easy.
There is a small step of just under 0.8 in between the loading floor and the loading edge, barely noticeable.
The rear seatback is asymmetrically split and can be easily folded down via a lever in the trunk or from the seatback; the backs fall forward automatically thanks to spring tension.
Folding down does not create a flat loading floor.
The trunk cover (rollo) has no storage option when removed.
Lighting is limited to a single lamp and is rather sparse.
There is a 12-V socket in the trunk and small side compartments, but these only hold small items like a warning triangle or tire repair kit.
Long, narrow cargo (e.g., skis) can be transported via the standard ski hatch (with a maximum of four occupants).
Top trim (Shine Pack) offers an electrically opening tailgate with sensor control — this feature is omitted in lower trims.

Everyday effect: The combination of a low loading edge and practical seat folding makes the C5 X well suited for daily shopping, luggage, and beverage crates (up to nine crates possible).

Limitations include the lack of a flat loading floor, limited lighting, and no storage option for the cover, which is inconvenient when frequently switching between open and closed cargo space. Those who often transport larger, bulky items should consider the non-flat loading floor and the detail about the cover.

General Model Information

Familiarity: The C5 X is Citroen’s representative in the upper mid-size/D-segment with a distinctive body shape (combining sedan, wagon, and coupe elements) and is especially present in Europe.

Special Features and Characteristics: Comfort-oriented suspension, generous interior design, and hybrid powertrain variants (e.g., Hybrid 225) are part of the offering. The top Shine Pack trim includes features like the electrically controlled tailgate with sensor control and ambient lighting.

Price-Performance Ratio: The C5 X offers a comfort-focused alternative to more conservative competitors; the space offering is in the good mid-range, though the manufacturer’s stated volume figures are more optimistic than independent measurements.

For buyers who value comfort, style, and everyday usability, the ratio is attractive — those expecting maximum payload and absolutely generous cargo space should compare with direct competitors.

Competitor Models: Typical competitors are other upper mid-size models like the VW Passat, Skoda Superb, or Peugeot 508. These competitors sometimes offer larger or more practical cargo volumes (depending on model variant) and sometimes more conventional body styles.

What fits in the Citroen C5 X trunk?

Tested: 100 products — 65 fit with seats up, 25 only with seats folded.
