Fiat · Hatchback · 2023

Fiat 500e Trunk Dimensions

Dimensions
Trunk space

Fiat 500e - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Fiat 500e (Hatchback). Access in 3D

Trunk dimensions Fiat 500e (Hatchback). Access in 3D

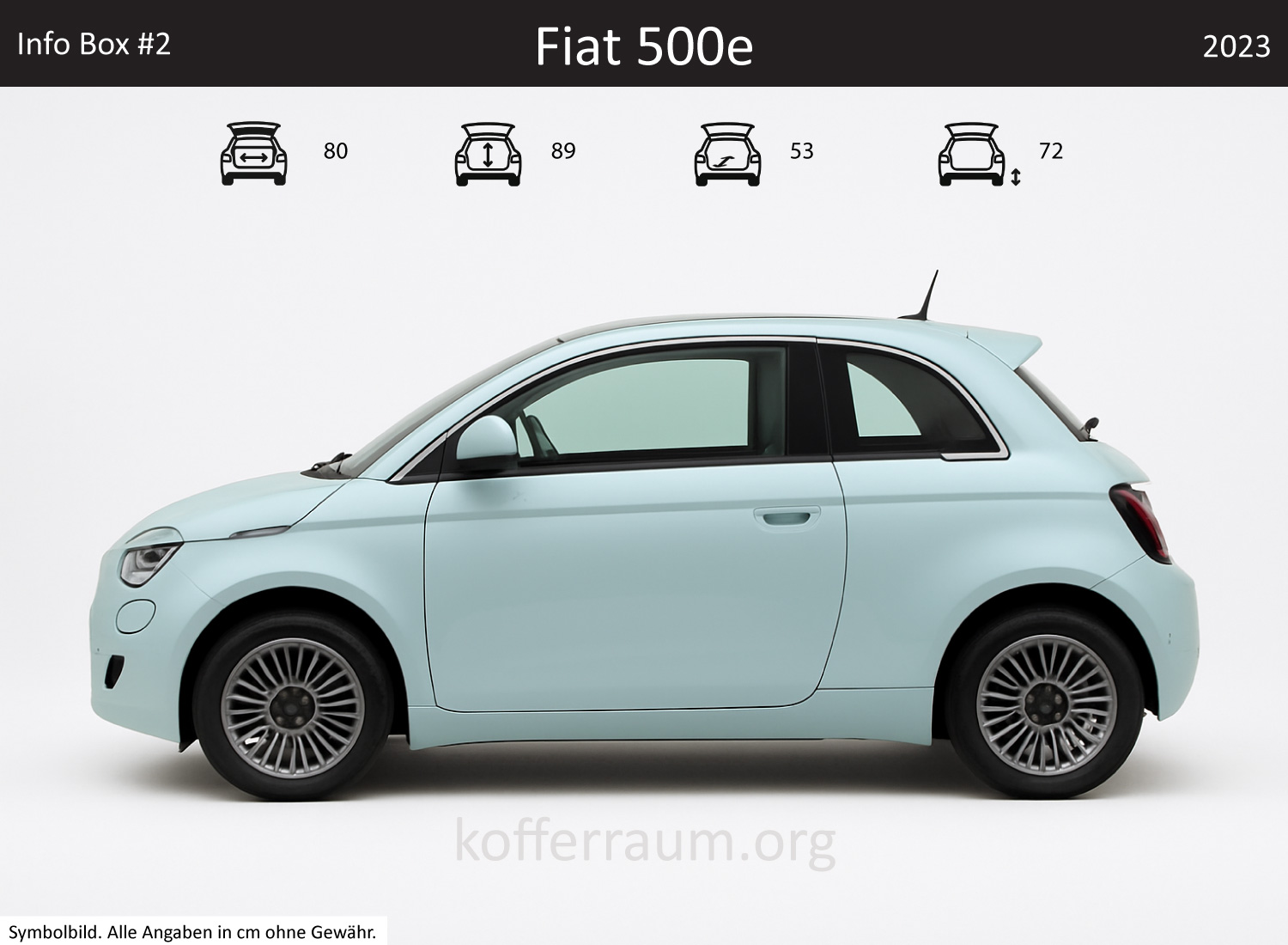

Fiat 500e trunk dimensions – detail — Detail dimensions Fiat 500e

Fiat 500e (Hatchback) Trunk Dimensions

Fiat 500e (Hatchback) Trunk Dimensions
Measurement	Value
Width of Trunk	39.4 in
Length of Trunk	20.9 in
Height of Trunk	34.9 in

Fiat 500e (Hatchback) Car Dimensions

Fiat 500e (Hatchback) Car Dimensions
Measurement	Value
Length of Car	143 in
Width of Car	66.3 in
Height of Car	60.1 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Inglesina Sketch

Fits (seats up)

into the Fiat 500e

All Shop

Suitcases

Travelhouse Tokyo 110L

Fits (seats up)

into the Fiat 500e

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the Fiat 500e

All Shop

Trunk organizers

ATHLON TOOLS XXL

Fits (seats up)

into the Fiat 500e

All Shop

Mobility aids

Vive Mobility

Fits (seats up)

into the Fiat 500e

All Shop

Garden tools

TrendLine 15L

Fits (seats up)

into the Fiat 500e

All Shop

Ladders

SONGMICS 4 Stufen

Fits (seats up)

into the Fiat 500e

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Fiat 500e

All Shop

Boxes

Auer Packaging 60x40x32

Fits (seats up)

into the Fiat 500e

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Fiat 500e

The Fiat 500e 2023 offers a trunk with a volume of about 6.5 cu ft, which can be expanded up to 19.4 cu ft when the rear seats are folded down. The rear bench is split 60:40, allowing flexibility in transport.

The interior design is modern and functional, with a flat loading floor that facilitates loading and unloading. The trunk dimensions vary within the model range, with a rather compact shape and a low loading edge, which increases practicality. The trunk is well usable, although limited compared to larger vehicles.

Model Information

The Fiat 500e is the fully electric version of the classic Fiat 500, characterized by modern design and innovative technology. The latest series offers a combination of stylish exterior and advanced electric mobility.

With a compact format, the Fiat 500e is particularly suitable for urban areas and provides an environmentally friendly alternative to traditional combustion engines. The newest models are equipped with a variety of technologies that enhance both driving comfort and safety.

Variants of the Same Series

The Fiat 500e is offered in various variants, including the sedan and the convertible. It is important not to confuse these models, as they have different features and equipment. While the sedan offers a closed trunk, the convertible has a folding roof, which affects transport options and the sense of space inside.

Yearly Differences

Model changes of the Fiat 500e affecting body dimensions and trunk dimensions mainly occurred with the introduction of the latest generation in 2020. These changes led to a slight increase in interior and trunk space compared to previous models.

Before 2020, the Fiat 500e’s trunk was smaller, limiting transport options.

Direct Competition

In the same price class and size, the Fiat 500e competes with models like the Mini Electric and the Honda e. The Mini Electric offers a trunk volume of about 7.5 cu ft, making it somewhat roomier compared to the Fiat 500e.

The Honda e, on the other hand, has a trunk volume of 6 cu ft, making it slightly smaller. These differences can be decisive for buyers who value storage space.

More Affordable Alternatives

More affordable alternatives to the Fiat 500e with similar trunk dimensions include models like the Dacia Spring Electric and the Renault Twingo Electric. The Dacia Spring offers a trunk volume of about 10.2 cu ft, making it an attractive option for buyers needing more cargo space.

The Renault Twingo Electric has a trunk volume of 7.7 cu ft, also making it a practical choice. These models provide a cost-effective solution for buyers seeking good value for money.

Trunk space Fiat 500e

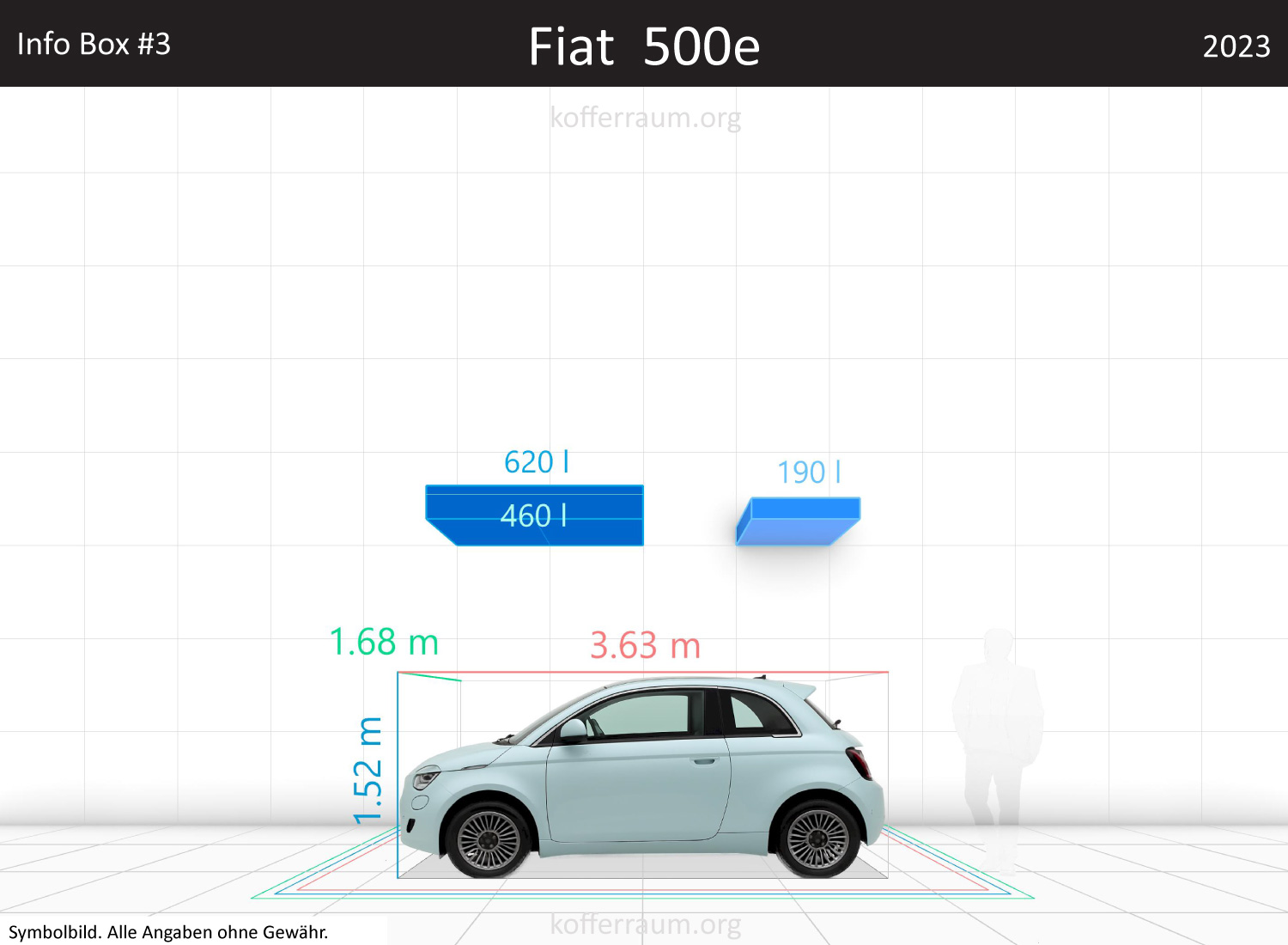

Fiat 500e trunk space volume — Trunk volume Fiat 500e

Trunk Volume

The Fiat 500e subcompact car 2023 has a very small base trunk volume: Manufacturer: 6.5 cu ft, independent measurement: approx. 7.1 cu ft (the fact package also mentions an average of ~6.8 cu ft). This corresponds to about −54% compared to an average car and makes up only around 4.1% of the vehicle volume.

Extended loading variants:

With the parcel shelf raised up to the roof: about 8.3 cu ft (text fragments) or manufacturer specification roof-high with folded rear seats 19.4 cu ft, independent measurement roof-high up to 24 cu ft.
With folded rear seats and loading volume up to the window sill: approx. 16.2 cu ft (independent measurement).

Practical consequences: The standard storage space is sufficient for daily shopping or two small suitcases / two beverage crates, but is limited for vacation luggage or larger shopping.

Folding down the rear seats significantly increases the loading volume — however, this results in compromises regarding loading height, loading surface, and handling (see usability).

Vehicle Size and Parking Friendliness

Dimensions: 142.9 in length, 66.1 in width, 60.2 in height. Compared to an average car, the 500e is 36.6 in shorter, 6.7 in narrower, and 1.6 in lower.

Implications:

Very parking-friendly: short and narrow, fits into tight city spaces, facilitates turning maneuvers and parking in short-term parking spots.
Caution in tight parking spots: the long front doors can be inconvenient when exiting in cramped parking garages.
The limited exterior space comes at the expense of interior and cargo space — the short length limits storage and rear seat space.

Trunk Usability and Flexibility

Important practical details:

Loading edge approx. 28.3 in high, inside additionally a side wall of about 7.9 in — luggage must be lifted, reaching large or heavy items is cumbersome.
After folding down the rear seat backs, a step is created that hinders sliding in cargo.
The trunk lid is manual but easy to handle; with the lid open, the height is just under 1.95 m, thus hardly any risk of bumping for taller persons.
Interior lighting of the cargo area is weak (only one lamp). There are no tie-down hooks, bag hooks, or compartments — small items cannot be securely stored.
No frunk available — possible additional storage space is missing.

Consequences for everyday use: For city driving, short errands, and weekend trips, the small trunk is often sufficient.

For families, longer vacations, or frequent transport of bulky items, the 500e is suboptimal unless the rear seat is regularly folded down. Physical limitations due to the high loading edge should be considered when loading.

General Model Information

Familiarity and special features:

The Fiat 500e is a striking, urban-oriented electric subcompact model (e.g., variant 42 kWh La Prima mentioned in tests).
Design and brand identity are the focus; the car is designed for city users with high design demands.

Characteristics / everyday use:

Good all-around visibility in general, but problems entering the rear (narrow entry area) and cramped trunk access.
Keyless system offers comfort but has a vulnerability to relay attacks (theft risk via signal extender).

Price-performance assessment and competition:

The 500e offers urban mobility with style but involves noticeable practical compromises (very small base loading volume, limited usability). The price-performance ratio strongly depends on the priority given to design/brand versus practicality.
Relevant competitors in the small electric city car segment include Honda e, MINI Electric, Smart EQ ForTwo/ForFour, as well as other micro EVs and microcar variants from established manufacturers. Those needing more cargo volume and family utility will find better alternatives among other small cars or compact EVs.

Conclusion: The Fiat 500e 2023 is an urban, design-oriented subcompact car with a very limited base trunk (~185–7.1 cu ft). Those frequently transporting larger shopping or luggage should pay attention to the foldable rear seat and the resulting compromises or choose a larger vehicle.
