Home » Trunk dimensions » Ford » Edge

Ford · SUV · 2017

Ford Edge Trunk Dimensions

  • Dimensions
  • Trunk space
Trunk dimensions Ford Edge (SUV). Access in 3D
Detail dimensions Ford Edge

Ford Edge (SUV) Trunk Dimensions

MeasurementValue
Width of Trunk44.9 in
Length of Trunk41.3 in
Height of Trunk31.5 in

Ford Edge (SUV) Car Dimensions

MeasurementValue
Length of Car189.3 in
Width of Car75.9 in
Height of Car66.4 in

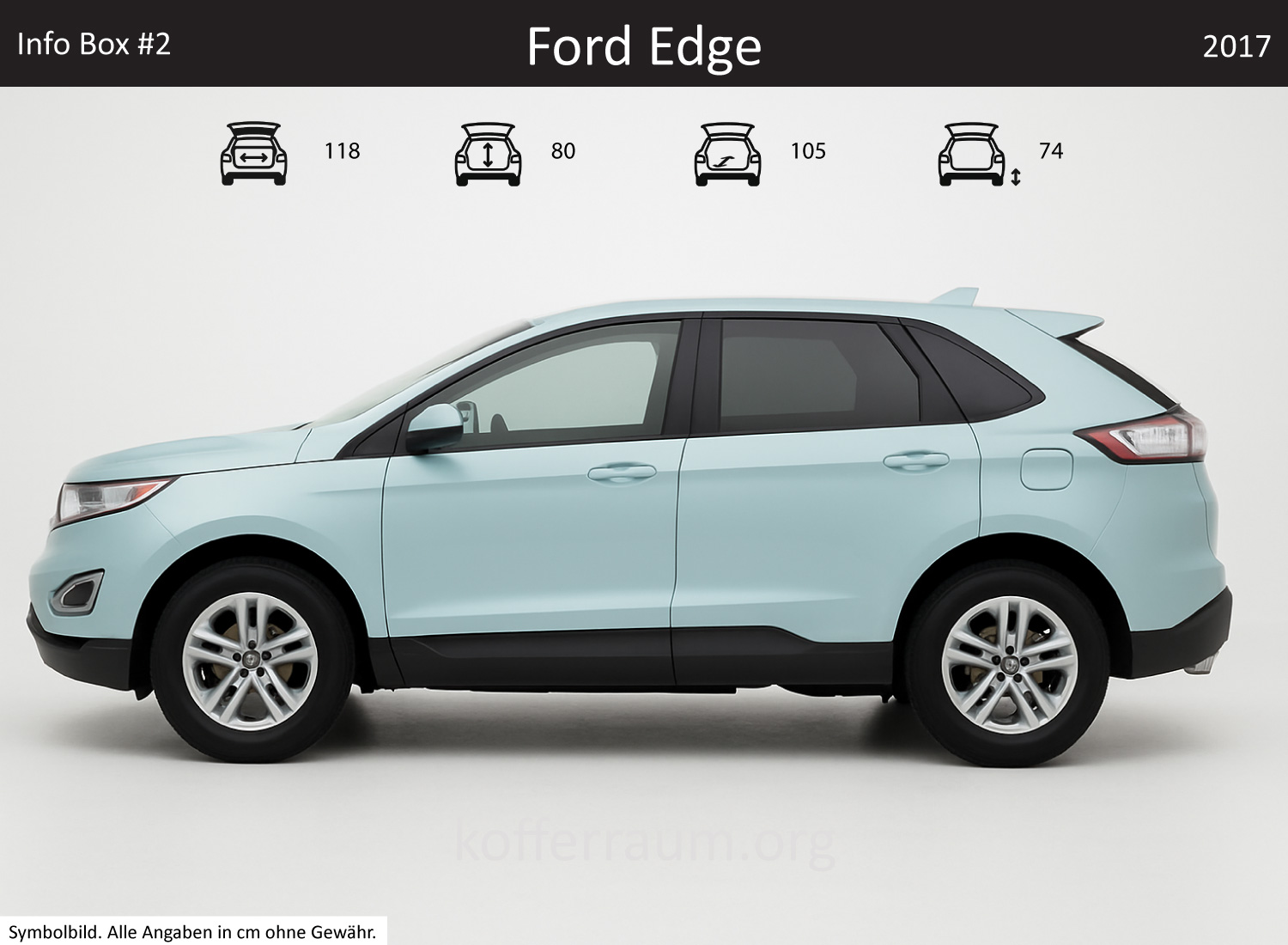

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Ford Edge

The 2017 Ford Edge offers a trunk with a volume of approximately 39.2 cu ft with the rear seats folded down and around 21.3 cu ft with the rear bench upright.

The rear bench is split 60/40, allowing flexibility when transporting luggage. The interior design is functional and features a low loading edge, which makes loading easier.

The trunk dimensions vary within the model range, with the Edge having a well-thought-out shape that enables optimal space utilization.

Practical features such as a flat loading floor and an optional electric tailgate increase user-friendliness. Overall, the trunk of the 2017 Ford Edge is well suited for families and active lifestyles.

Model Information

The Ford Edge is a mid-size SUV characterized by its combination of comfort, performance, and state-of-the-art technology.

The latest series offers a robust build, appealing design, and a variety of safety and infotainment features. The Ford Edge is known for its driving dynamics and provides a pleasant experience for both city driving and longer trips.

Variants of the Same Series

The Ford Edge is offered in various trim levels, including the base version, Titanium, and the sportier ST line. However, there are no other body variants such as convertible or sedan within the Edge range, so buyers mainly choose between different trim levels.

Yearly Differences

The Ford Edge has undergone several model changes over the years. The most significant changes occurred in 2015 and 2019, when the body and design were revised.

These changes led to a slight increase in trunk space and improved overall functionality. The current dimensions are thus the result of these continuous developments.

Direct Competitors

Direct competitors of the Ford Edge include models like the Chevrolet Blazer and Nissan Murano. The Chevrolet Blazer offers a trunk volume of about 64.2 cu ft with the rear seats folded down, making it superior in this regard.

The Nissan Murano, on the other hand, has a trunk volume of about 64 cu ft, also providing more space than the Edge. These differences can be decisive for buyers who need a lot of cargo space.

More Affordable Alternatives

More affordable alternatives with similar trunk dimensions are the Hyundai Tucson and Kia Sportage. The Hyundai Tucson offers a trunk volume of about 60.1 cu ft with the rear seats folded down, while the Kia Sportage offers about 59.5 cu ft.

Both models are generally cheaper than the Ford Edge and still provide comparable trunk functionality.

Cargo space Ford Edge

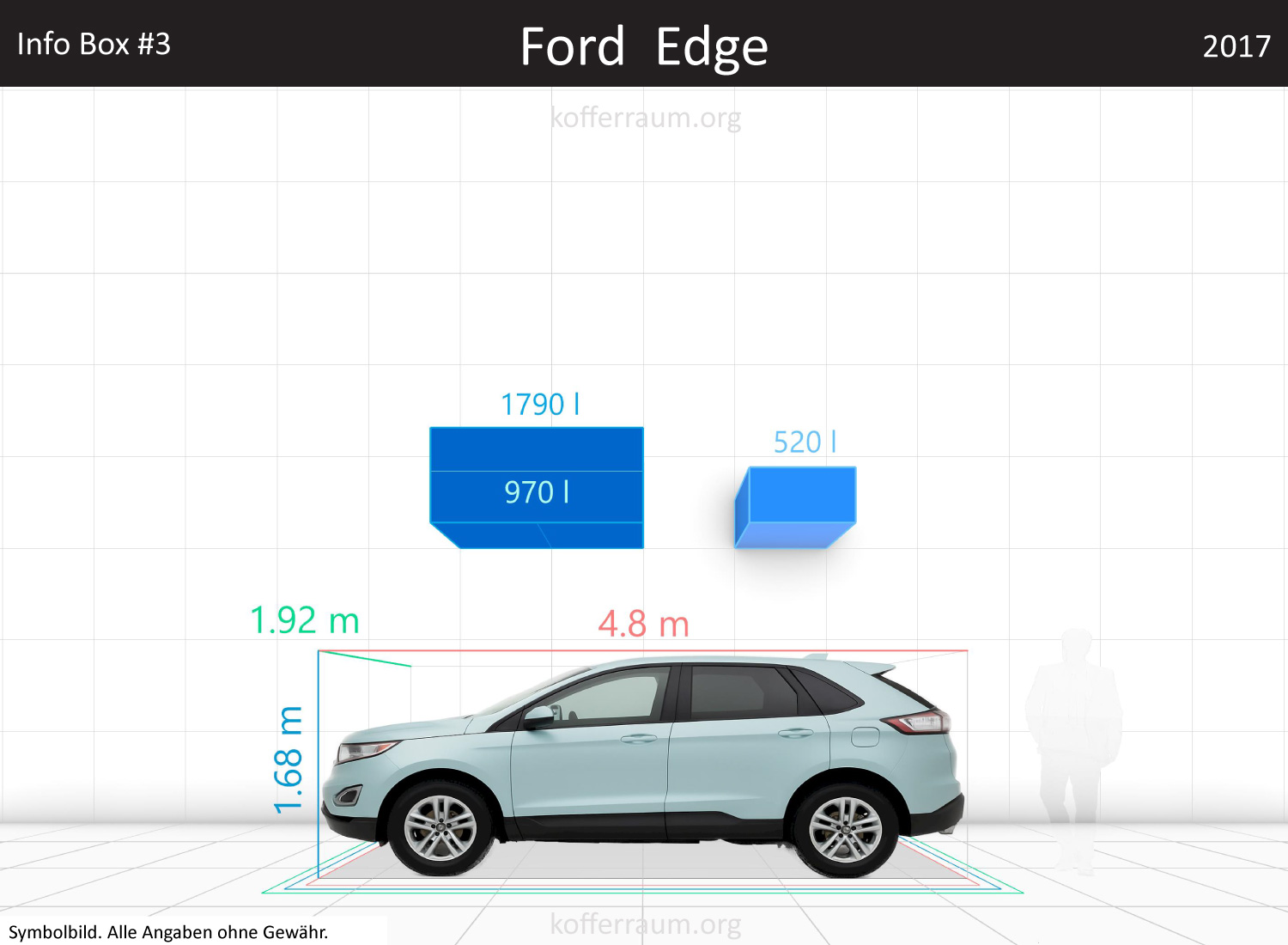

Trunk volume Ford Edge

Trunk Volume

The 2017 Ford Edge shows different values depending on the measurement method. Key figures at a glance:

  • Independent measurements: Standard volume ≈ 15.5 cu ft; up to window sill with folded rear seats 34.1 cu ft; roof-high with folded rear seats ≈ 61.1 cu ft.
  • Manufacturer specifications: Standard 21.3 cu ft; roof-high with folded rear seats 65.2 cu ft.
  • An alternative average/comparison figure in the factsheet states ≈ 18.4 cu ft, which is about 24% above the average car.
  • Additional brief data: up to the roof are also cited in tests 25.6 cu ft (depending on measurement limit) or space for about 15 beverage crates.

Conclusion: For everyday use, the independent value of 15.5 cu ft (typical usable base space) is practical. However, with folded rear seats, very flexible cargo volumes arise up to well over 900–60 cu ft, depending on how high the load is and which measurement limit is applied.

Vehicle Size and Parking Friendliness

Dimensions: 189.4 in length, 76 in width, 66.5 in height. Compared to the average car, the Edge is

  • 9.8 in longer (+5.4%),
  • 3.1 in wider (+4.2%),
  • 4.7 in taller (+7.8%).

Practical: The dimensions provide more interior and cargo space but reduce maneuverability and parking comfort. Compared to a typical parking space, about 7.5 in length and 22.4 in width of “room” remain when parking — so the Edge fits on normal parking spaces but requires more space for maneuvering.

The overall height should be considered for some tight garages; the tailgate opening can be limited adjustably (practical in garages).

Trunk Usability and Flexibility

Everyday relevant points:

  • Loading edge is relatively high at 29.5 in, making loading heavy items more strenuous.
  • The loading floor is almost level with the loading edge, which facilitates lifting/unloading.
  • Rear seatbacks fold 60/40; no pass-through for very long items.
  • The seatbacks can be unlocked from the trunk via button or lever in the rear; setting up the spring-loaded backs requires some force.
  • Practical details: side storage compartments and bag hooks create order; a partition net is only available at extra cost; there is no internal storage option for a removed rear roller blind.
  • Standard in Titanium trim: electric, sensor-controlled tailgate with foot sensor — facilitates loading, especially with bulky purchases.

Practical conclusion: The Edge is very suitable for everyday use for families, vacations, or larger shopping — the high loading edge and lack of pass-through somewhat limit comfort with very long or heavy loads. However, the large volume with folded seats makes it very flexible.

General Model Information

  • Familiarity: The Ford Edge is positioned as a mid-size SUV and known for spacious interior and powerful engine variants.
  • Special features: generous cargo volume (depending on measurement significantly above average), electric tailgate with foot sensor in higher trims, good variability with folded seats.
  • Characteristics / Criticisms: high loading edge (29.5 in), relatively high curb weight (1,949 kg), and a documented weakness in the keyless system (susceptibility to relay attacks), which cannot be disabled.
  • Payload: 606 kg available — with full passenger load, the possible luggage capacity is significantly reduced (about 300–350 kg less available with two adults).
  • Price-performance ratio: The Edge offers a lot of space and comfort features for buyers who value interior and cargo capacity. The practical disadvantages (loading edge, keyless security) and weight are counteracting factors.
  • Competitor models: Hyundai Santa Fe, Kia Sorento, Nissan X-Trail/Murano, Honda CR-V, (depending on market/size) also models like VW Tiguan or Mazda CX-5 as alternatives in the SUV segment.

Overall assessment: The 2017 Ford Edge is a practical, spacious SUV with clear strengths in cargo space (especially with folded rear seats). Buyers should weigh practical usability (loading edge, no pass-through) and safety aspects (keyless system) against the space offered.
