Ford Grand C-MAX Trunk Dimensions

Dimensions
Trunk space

Ford Grand C-MAX - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Ford Grand C-MAX (Wagon). Access in 3D

Trunk dimensions Ford Grand C-MAX (Wagon). Access in 3D

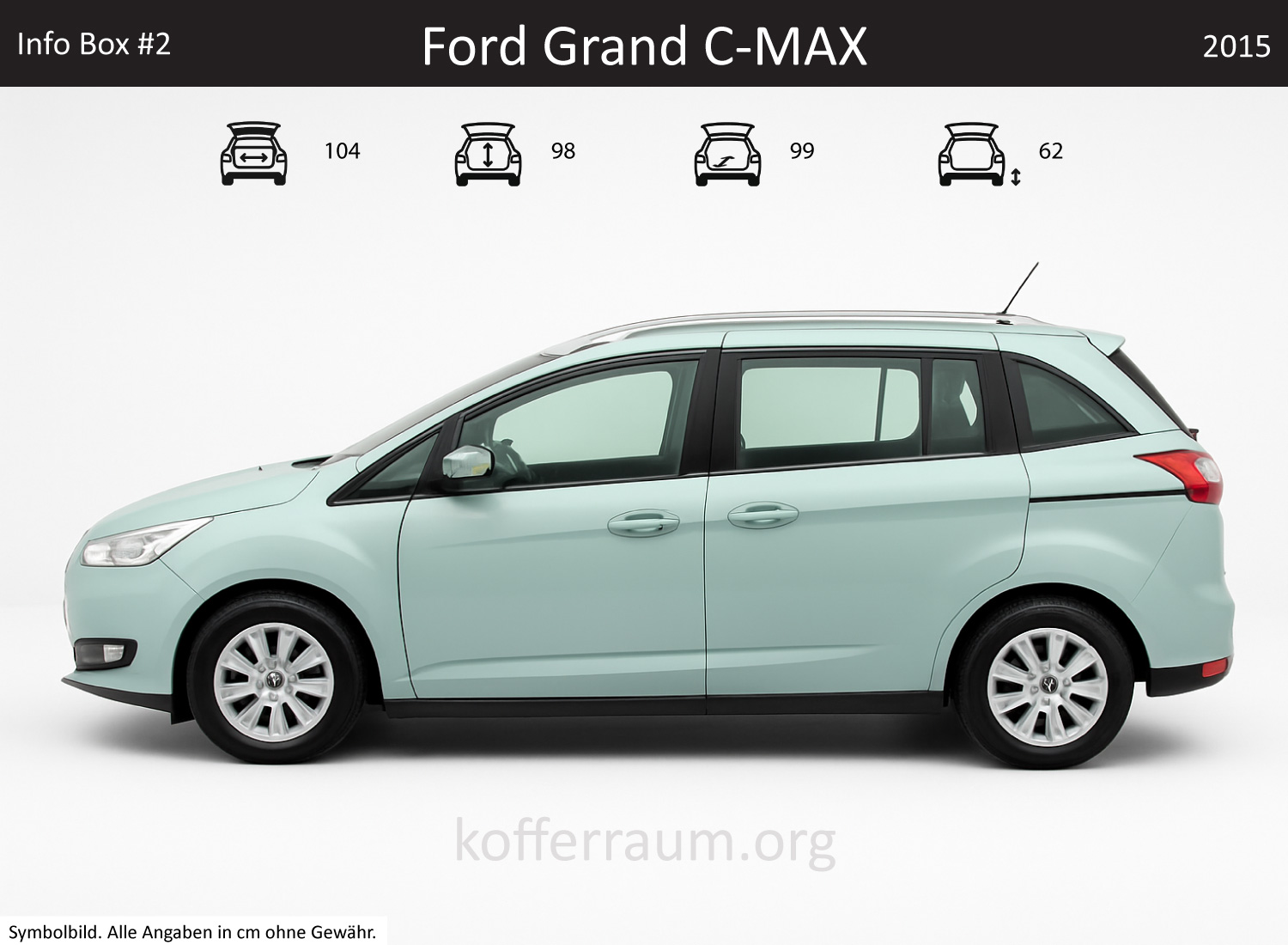

Ford Grand C-MAX trunk dimensions – detail — Detail dimensions Ford Grand C-MAX

Ford Grand C-MAX (Wagon) Trunk Dimensions

Ford Grand C-MAX (Wagon) Trunk Dimensions
Measurement	Value
Width of Trunk	40.5 in
Length of Trunk	38.9 in
Height of Trunk	38.6 in

Ford Grand C-MAX (Wagon) Car Dimensions

Ford Grand C-MAX (Wagon) Car Dimensions
Measurement	Value
Length of Car	177.9 in
Width of Car	72 in
Height of Car	64.6 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Bugaboo Cub All-Terrain

Fits (seats up)

into the Ford Grand C-MAX

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the Ford Grand C-MAX

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the Ford Grand C-MAX

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the Ford Grand C-MAX

All Shop

Camping boxes

squiq Traveler compact

Fits (seats up)

into the Ford Grand C-MAX

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the Ford Grand C-MAX

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 33cm faltbar

Fits (seats up)

into the Ford Grand C-MAX

All Shop

Ladders

Huini 2,5+2,5m

Fits (seats up)

into the Ford Grand C-MAX

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Ford Grand C-MAX

All Shop

Boxes

Auer Packaging 80x60x52

Fits (seats up)

into the Ford Grand C-MAX

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Ford Grand C-MAX

The Ford Grand C-MAX 2015 offers a trunk with a volume of about 5.4 cu ft with the seats upright and up to 59.2 cu ft with the rear seats folded down.

The rear bench is flexible, with a 60:40 split, making it easier to adapt the interior space. The interior design is functional, with a high loading edge that facilitates access to the trunk.

The trunk dimensions vary within the model range, with a focus on practicality and a spacious feel. Typical features include a rectangular shape that makes storing luggage easier and numerous storage compartments inside. The Grand C-MAX is designed to meet the needs of families and users requiring ample space.

Model Information

The Ford Grand C-MAX is a compact van characterized by its versatility and family-friendliness. The latest series offers seating for up to seven people and combines functionality with modern design.

With a focus on safety and comfort, the Grand C-MAX is ideal for families and active lifestyles. The equipment includes advanced technologies that make driving more pleasant and safer.

Variants of the Same Series

The Ford Grand C-MAX is part of the C-MAX series, which also includes the Ford C-MAX. While the Grand C-MAX offers a longer body and additional seating, the C-MAX is designed as a more compact variant. These differences are important to avoid confusing the models, especially regarding space and usage options.

Yearly Differences

The Ford Grand C-MAX has been updated in several model years, with significant changes made in 2015 and 2020. These updates affected both the body dimensions and the trunk dimensions.

In particular, the 2020 version received a revision that optimized the interior and improved the flexibility of the trunk. Such changes can impact the overall evaluation of the trunk.

Direct Competition

In the same price range and size, the Ford Grand C-MAX competes with models like the Volkswagen Touran and the Renault Grand Scénic. The Volkswagen Touran offers a trunk volume of up to 65.6 cu ft, making it somewhat roomier than the Grand C-MAX.

The Renault Grand Scénic, on the other hand, has a volume of up to 18.4 cu ft with seats upright, making it less competitive in this regard.

More Affordable Alternatives

More affordable models with similar trunk dimensions include the Dacia Lodgy and the Citroën Berlingo. The Dacia Lodgy offers a trunk volume of up to 29.2 cu ft, making it an attractive option for buyers on a limited budget.

The Citroën Berlingo, on the other hand, has a volume of up to 37.1 cu ft, positioning it as a practical alternative as well. Both models offer good value for money but differ in features and comfort levels.

Cargo space Ford Grand C-MAX

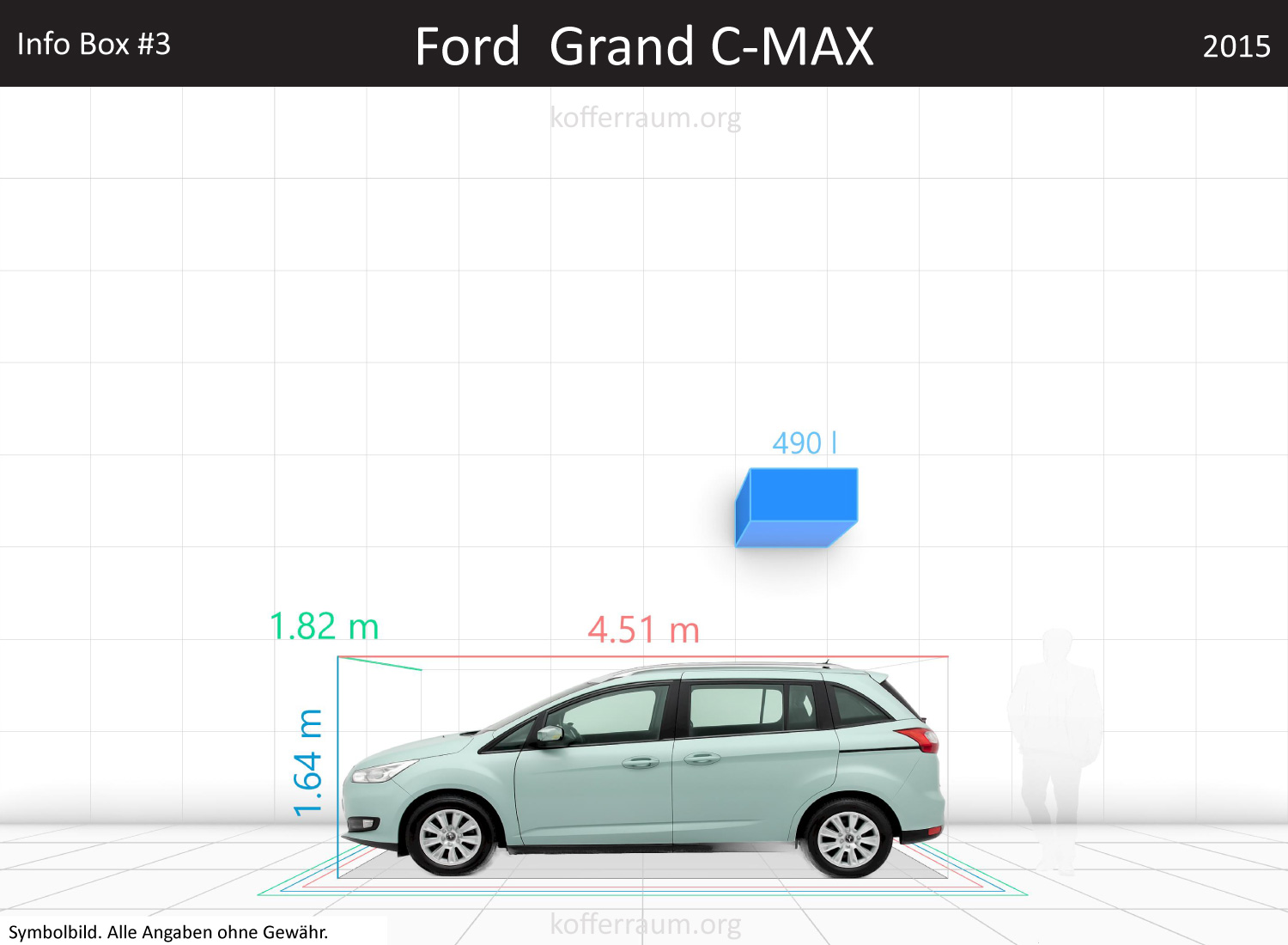

Ford Grand C-MAX trunk space volume — Trunk volume Ford Grand C-MAX

Trunk Volume

The Ford Grand C‑MAX (2015) offers a trunk volume of 17.3 cu ft (manufacturer and independent measurement). This is about 16.67% larger than an average car.

Removing the trunk cover increases the volume to 30.9 cu ft — enough to store up to 14 beverage crates. With the rear seatbacks folded down, depending on fill height, 33.7 cu ft (up to window sill) or even 61.6 cu ft (up to the roof) are available.

Practical implications: The volume makes the Grand C‑MAX a real everyday advantage for families and heavy transport. With seats upright, it comfortably covers usual shopping and luggage; with seats folded down, bulky transports can also be realized.

Vehicle Size and Parking Friendliness

Dimensions: 178 in length, 72 in width, 64.6 in height. Compared to average, the vehicle is 1.6 in shorter (-0.9%), 0.8 in narrower (-1.2%), and 3.1 in taller (+5%).

The car is reportedly 18.9 in shorter and 26.4 in narrower than a typical parking space, which simplifies parking in tight spots. The increased height may need to be considered in very low underground garages or with roof loads (e.g., roof box).

Practical implications: The compact length and moderate width make maneuvering and parking in cities easier. The slightly greater height increases headroom and interior impression but can be limiting in very low clearances.

Trunk Usability and Flexibility

Some notable usage details:

Low loading edge: only 24 in; loading floor and edge are almost level, with only a 0.8 in step when unloading — this facilitates heavy loading and unloading.
Loading opening: high-opening tailgate that swings wide (note: protruding tailgate lock may bother tall persons). Electric tailgate with foot sensor is optionally available.
Interior variability: second row of seats folds down in three parts; middle seat can be folded under the right seat, additional small storage spaces available, but most underfloor compartments are occupied by tools, first aid kit, and Tirefit.
Lighting: cargo area is well illuminated with two lamps.
Practical limitations: folding creates a bothersome step that complicates loading large items. The middle rear seatbelt is attached to the roof and must be awkwardly undone to fold the seatback.

Practical implications: Overall, the trunk is very practical and versatile — ideal for families, shopping, and occasional furniture transport. Small ergonomic weaknesses (step when folding, cramped underfloor compartments, belt attachment) cost time and comfort when frequently changing seat/loading configurations.

General Model Information

Familiarity: The Grand C‑MAX is positioned as a compact van/MPV and is considered a roomier variant of the Ford C‑MAX.

Special features: Significantly larger loading capacity compared to the regular C‑MAX (Grand C‑MAX: 490–61.6 cu ft vs. C‑MAX: 460–49.1 cu ft). Optional comfort feature: electric tailgate with foot sensor.

Characteristics: Practical details like the low loading edge, high tailgate, and three-part rear bench are plus points; awkward aspects include the inconvenient step after folding, roof belt handling, and limited usable underfloor compartments.

Value for money: Due to the variable interior and large trunk volume, the Grand C‑MAX offers an attractive utility profile for families and heavy users. Additional equipment (e.g., electric tailgate) is often chargeable.

Competitors: Typical competitors in the segment include VW Touran, Renault Scenic, and Opel Zafira — all offer similar flexibility but differ in interior layout, comfort details, and loading volume.

What fits in the Ford Grand C-MAX trunk?

Tested: 100 products — 81 fit with seats up, 15 only with seats folded.
