Home » Trunk dimensions » Ford » Transit Courier

Ford · Van · 2015

Ford Transit Courier Trunk Dimensions

  • Dimensions
  • Trunk space
Trunk dimensions Ford Transit Courier (Van). Access in 3D

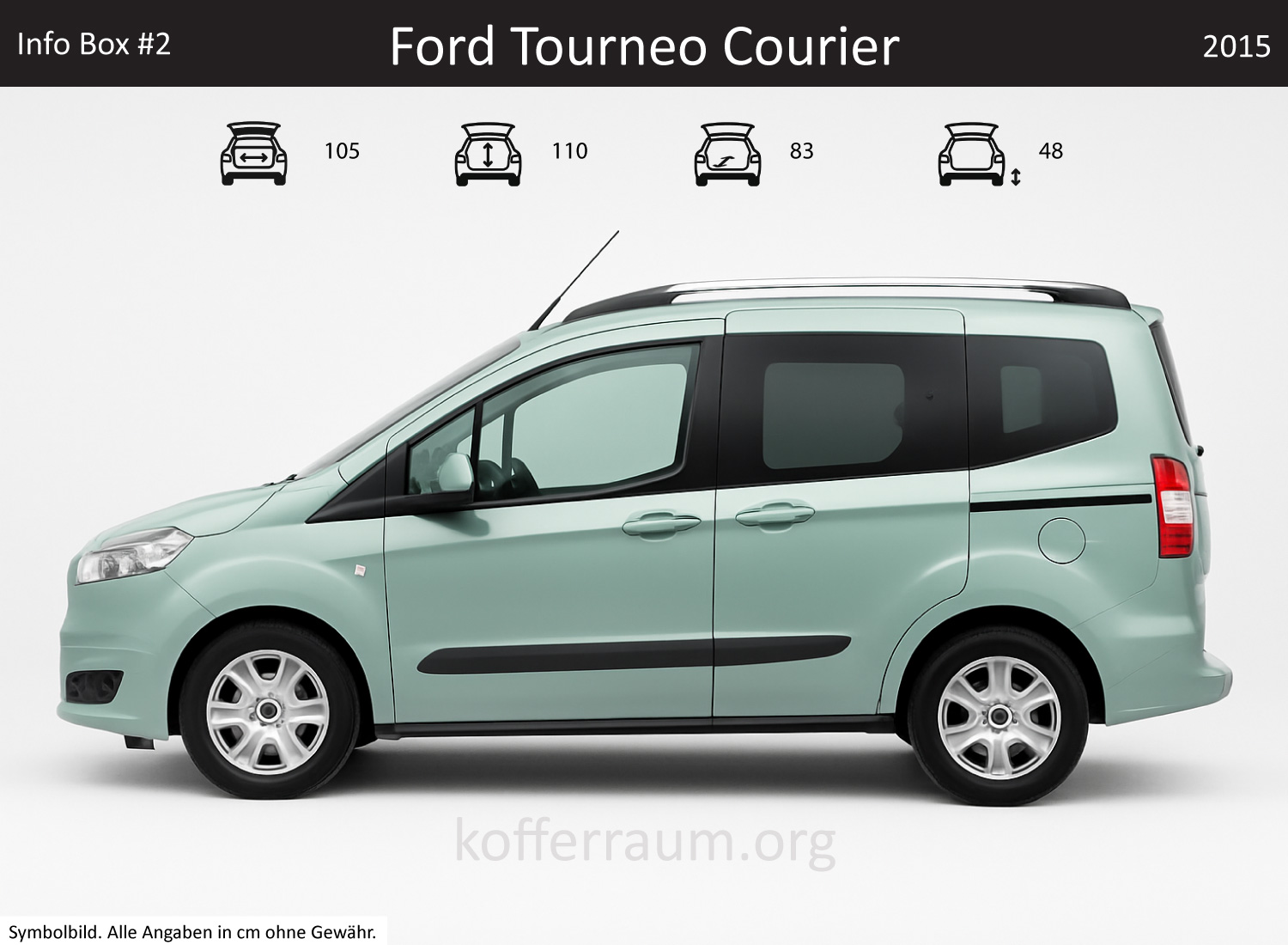

Detail dimensions Ford Transit Courier

Ford Transit Courier (Van) Trunk Dimensions

MeasurementValue
Width of Trunk38.9 in
Length of Trunk32.6 in
Height of Trunk43.3 in

Ford Transit Courier (Van) Car Dimensions

MeasurementValue
Length of Car170.7 in
Width of Car70.9 in
Height of Car71.5 in

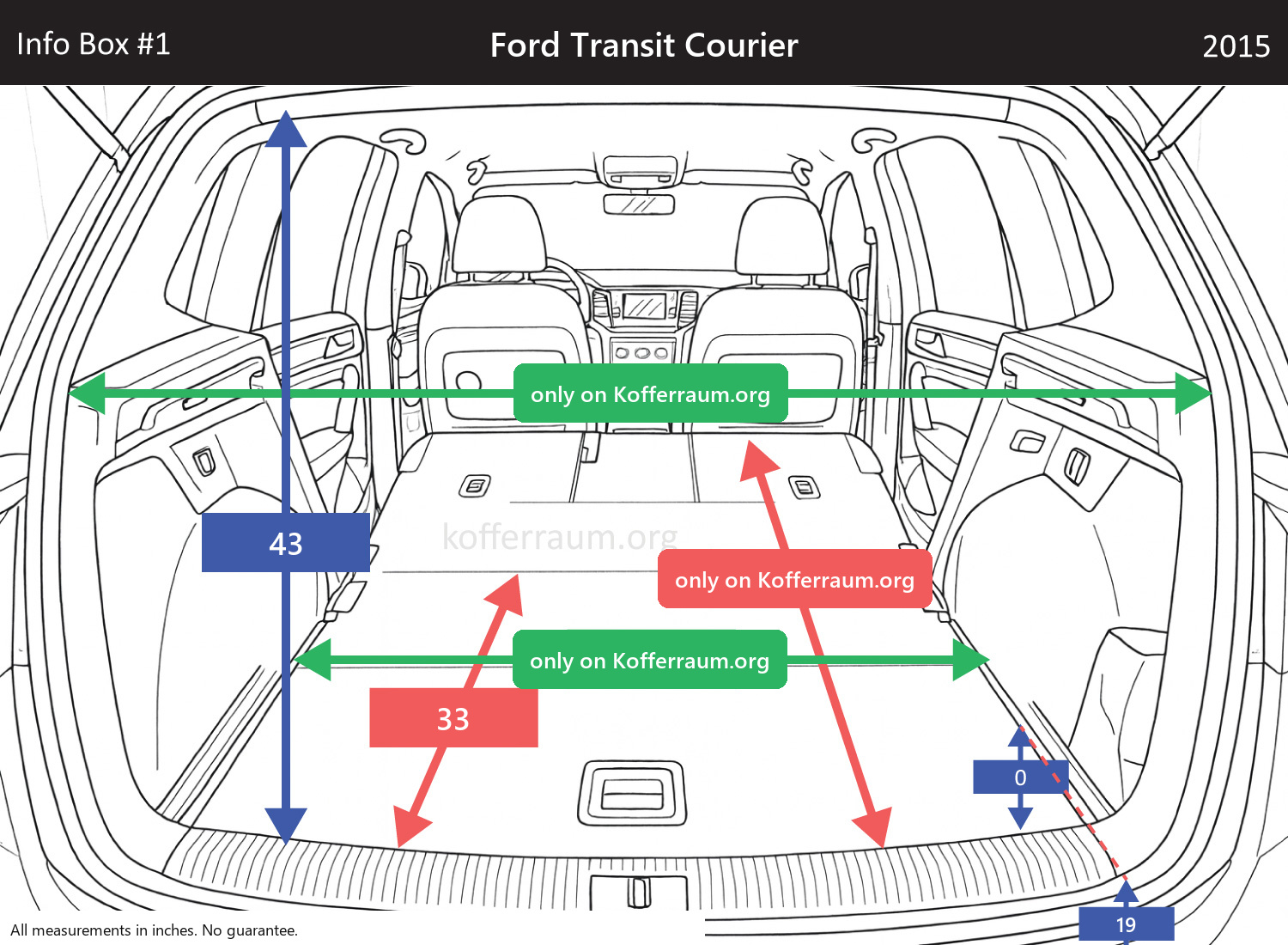

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Ford Transit Courier

The Ford Tourneo Courier from 2015 offers a trunk with a volume of about 25 cu ft with the rear seats folded down and around 6.4 cu ft with the rear bench upright.

The rear bench is split 60:40, allowing flexibility when transporting passengers and cargo. The interior is functionally designed, with a high loading edge that facilitates access but can make loading more difficult.

The trunk dimensions vary depending on equipment and model year, with the trunk shape being rectangular, optimizing the use of storage space. Typical features include a practical arrangement of compartments and good rear visibility, which makes maneuvering easier.

Model Information

The Ford Tourneo Courier is a compact van characterized by its versatility and functionality. It offers seating for up to five people and is suitable for both city driving and longer trips.

The latest series of the Tourneo Courier combines modern design with practical features that simplify everyday life. With a focus on comfort and safety, this model is ideal for families and active lifestyles.

Variants of the Same Series

The Ford Tourneo Courier belongs to the Ford Tourneo series, which includes various models. These include the Tourneo Connect and the larger Tourneo Custom.

These models differ in size, capacity, and equipment. While the Courier is designed as a compact van, the other variants offer more space and additional features tailored to different needs.

Yearly Differences

Changes to the Ford Tourneo Courier affecting body dimensions and trunk measurements have been made in recent model years.

In particular, the 2023 revision brought an increase in interior space and an improved trunk configuration. These adjustments aim to enhance comfort and functionality, positively impacting transport options.

Direct Competitors

In the compact van segment, the Ford Tourneo Courier competes with models such as the Citroën Berlingo and the Peugeot Partner.

The Citroën Berlingo offers a trunk volume of up to 42.4 cu ft, while the Peugeot Partner has similar dimensions. These differences in trunk volume can be decisive for buyers who place special emphasis on cargo space.

More Affordable Alternatives

For buyers looking for more affordable alternatives with similar trunk dimensions, models like the Dacia Dokker and the Renault Kangoo are recommended.

The Dacia Dokker offers a trunk volume of about 35.3 cu ft and is generally less expensive than the Ford Tourneo Courier. These models are worth considering when budget plays a decisive role.

Cargo space Ford Transit Courier

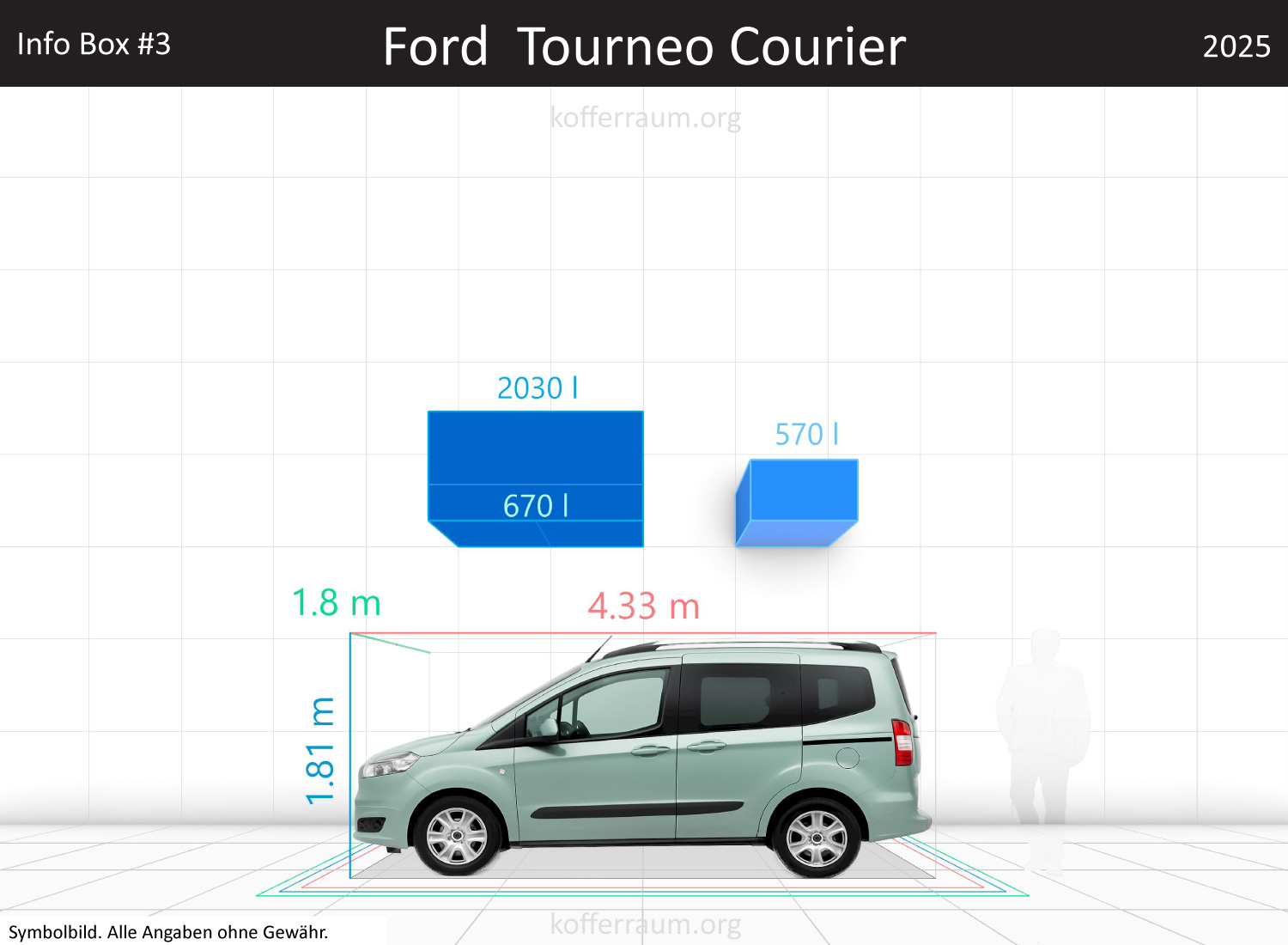

Trunk volume Ford Transit Courier

Trunk Volume

The Ford Tourneo Courier 2025 offers a very large cargo volume for a compact vehicle. Key figures at a glance:

  • Manufacturer specification: 20.1 cu ft (under the luggage compartment cover)
  • Independent measurement: 20 cu ft (under cover)
  • With rear seats folded down up to the bottom edge of the window: approx. 23.8 cu ft (independent measurement)
  • Without cover / up to the roof: around 42.9 cu ft (text specification) — depending on measurement method, roof-high values are given as 1,904–76.4 cu ft (different measurement bases)
  • The trunk accounts for about 8% of the total vehicle volume (1.6 percentage points above average); roof-high with folded rear seats, it is 28.7% (6.9 percentage points above average).

Practically, this means: in everyday use, the volume under the cover (565–20.1 cu ft) is sufficient for a large shopping trip, suitcases, or a stroller. When the seats are folded down or the cover is removed, a significantly larger storage volume is created for bulky items or many beverage crates.

Vehicle Size and Parking Friendliness

  • Exterior dimensions: Length 170.9 in, width 70.9 in, height 71.7 in.
  • Compared to an average car, the Courier is 8.7 in shorter (−4.9%) and 2 in narrower (−2.7%), but 9.8 in taller (+16.2%).
  • It is thus significantly more compact than many sedans, which makes parking and maneuvering in the city easier (compared to a normal parking space, it is described as significantly shorter/narrower).
  • The elevated body style brings advantages in cargo volume but can be relevant in underground garages or tight parking garages with low clearance heights.
  • Empty weight: 1,517 kg; Payload: 483 kg — when fully loaded, attention should be paid to how many passengers plus luggage are transported (four adults at ~75 kg each are already ~300 kg).

Trunk Usability and Flexibility

  • Loading edge: approx. 23.2 in high — comfortable for loading and unloading; level loading possible, but due to the wide bumper, you have to reach somewhat into the trunk.
  • Seat concept: Rear seatbacks and the entire bench can be folded down asymmetrically; the seats are solid but heavy and not designed for removal. When fully folded down, a flat loading floor is created if the seats are pushed all the way forward.
  • Parcel shelf/loading floor: The parcel shelf cannot be stored under the loading floor but can be inserted as an intermediate level to reduce the step when folding down.
  • Interior layout: Practical compartments available (right folding compartment, side compartments), but no additional storage space under the loading floor.
  • Handling of the tailgate: The manual tailgate is generous but cumbersome: it does not open automatically, requires momentum when closing, and does not feel particularly solid. The trunk lighting is only weakly designed.
  • Practical example: under the cover there are 20 cu ft (comparable to a significantly longer VW Passat), without cover or with folded seats, bulky loads or many beverage crates can be transported.

Conclusion: The usability of the cargo space is overall good — large volume meets sensible variability —, with minor comfort and workmanship drawbacks in the tailgate and lighting.

General Model Information

  • Familiarity: The Tourneo Courier positions itself as a compact high-roof wagon/van with unusually large cargo capacity in its vehicle class.
  • Special features: Very good cargo volume on a small footprint; flexible rear seat solutions; low loading edge; many small compartments.
  • Characteristics: Very wide manual tailgate with unfavorable operation and moderate lighting; seats are heavy and non-removable; no underfloor storage compartment.
  • Price-performance ratio: Due to the space offered relative to the compact exterior dimensions, the Courier appears cost-effective for buyers who need high utility with limited vehicle length. Trade-offs exist in operating comfort and detail workmanship in the trunk area.
  • Competitor models: Comparable alternatives are models from the class of compact high-roof wagons/vans such as VW Caddy, Citroën Berlingo / Peugeot Rifter, Opel Combo Life, or Renault Kangoo — each with a similar objective (lots of cargo, compact exterior dimensions).

What fits in the Ford Transit Courier trunk?

Tested: 100 products — 83 fit with seats up, 9 only with seats folded.
