Hyundai · Crossover · 2025

Hyundai IONIQ 5 Trunk Dimensions

Dimensions
Trunk space

Hyundai IONIQ 5 - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Hyundai IONIQ 5 (Crossover). Access in 3D

Trunk dimensions Hyundai IONIQ 5 (Crossover). Access in 3D

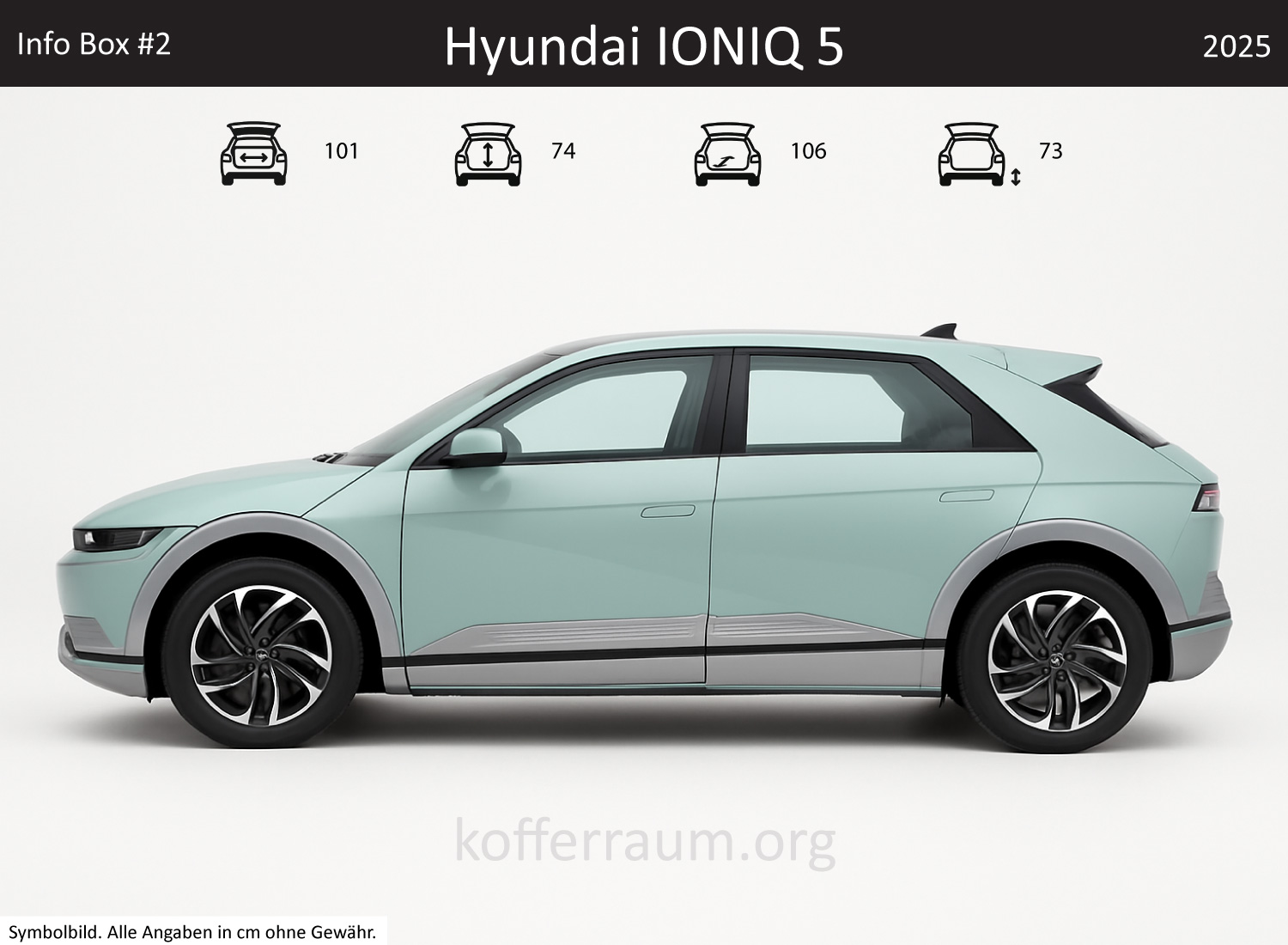

Hyundai IONIQ 5 trunk dimensions – detail — Detail dimensions Hyundai IONIQ 5

Hyundai IONIQ 5 (Crossover) Trunk Dimensions

Hyundai IONIQ 5 (Crossover) Trunk Dimensions
Measurement	Value
Width of Trunk	40.9 in
Length of Trunk	41.7 in
Height of Trunk	29.1 in

Hyundai IONIQ 5 (Crossover) Car Dimensions

Hyundai IONIQ 5 (Crossover) Car Dimensions
Measurement	Value
Length of Car	183.3 in
Width of Car	74.4 in
Height of Car	63.2 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Maxi-Cosi Zelia Select+

Fits (seats up)

into the Hyundai IONIQ 5

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the Hyundai IONIQ 5

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the Hyundai IONIQ 5

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the Hyundai IONIQ 5

All Shop

Camping boxes

squiq Traveler regular

Fits (seats up)

into the Hyundai IONIQ 5

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the Hyundai IONIQ 5

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 33cm faltbar

Fits (seats up)

into the Hyundai IONIQ 5

All Shop

Ladders

Huini 2,5+2,5m

Fits (seats up)

into the Hyundai IONIQ 5

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Hyundai IONIQ 5

All Shop

Boxes

Auer Packaging 60x40x32

Fits (seats up)

into the Hyundai IONIQ 5

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Hyundai IONIQ 5

The Hyundai IONIQ 5 sedan 2025 offers a trunk volume of about 18.6 cu ft, which can be expanded up to 56.5 cu ft by folding down the rear seats. The rear bench is split 60:40, allowing flexibility when transporting luggage. The interior is modernly designed, with high-quality materials and a clear layout.

The trunk dimensions vary slightly within the model range, with the shape mostly rectangular, optimizing usability. The loading edge is low, facilitating loading and unloading. Practical details such as tie-down hooks and a well-thought-out interior design support functionality.

Model Information

The Hyundai IONIQ 5 is a fully electric compact SUV that was first introduced in 2021. It is based on Hyundai's E-GMP platform and offers a combination of modern design, advanced technology, and sustainable mobility.

The IONIQ 5 is characterized by its high range, fast charging times, and a variety of driver assistance systems that enhance the driving experience. With its futuristic look and spacious interior, it appeals to both environmentally conscious drivers and tech enthusiasts.

Variants of the Same Series

The Hyundai IONIQ 5 is offered exclusively as an SUV and is not available in different body styles such as sedan or convertible. However, there are different trim levels that vary in performance, equipment, and price. These variants are important to meet specific buyer needs but do not offer different body forms.

Yearly Differences

Since its launch in 2021, the Hyundai IONIQ 5 has not undergone significant changes regarding body dimensions or trunk volume. Future model years may bring adjustments in equipment or technology that could indirectly affect trunk usability without changing the physical dimensions.

Direct Competitors

Direct competitors of the Hyundai IONIQ 5 include models such as the Kia EV6, Volkswagen ID.4, and Ford Mustang Mach-E. The Kia EV6 offers a trunk volume of about 17.3 cu ft, while the Volkswagen ID.4 provides around 19.2 cu ft.

The Ford Mustang Mach-E has a trunk volume of about 14.2 cu ft. These differences show that the IONIQ 5 offers good volume compared to some competitors but is not always the largest.

More Affordable Alternatives

More affordable models with similar trunk dimensions are the Dacia Duster and the Skoda Kamiq. The Dacia Duster has a trunk volume of about 16.9 cu ft, while the Skoda Kamiq offers around 14.1 cu ft.

These vehicles provide a cost-effective option for buyers seeking good trunk volume but without the benefits of a fully electric drivetrain.

Trunk space Hyundai IONIQ 5

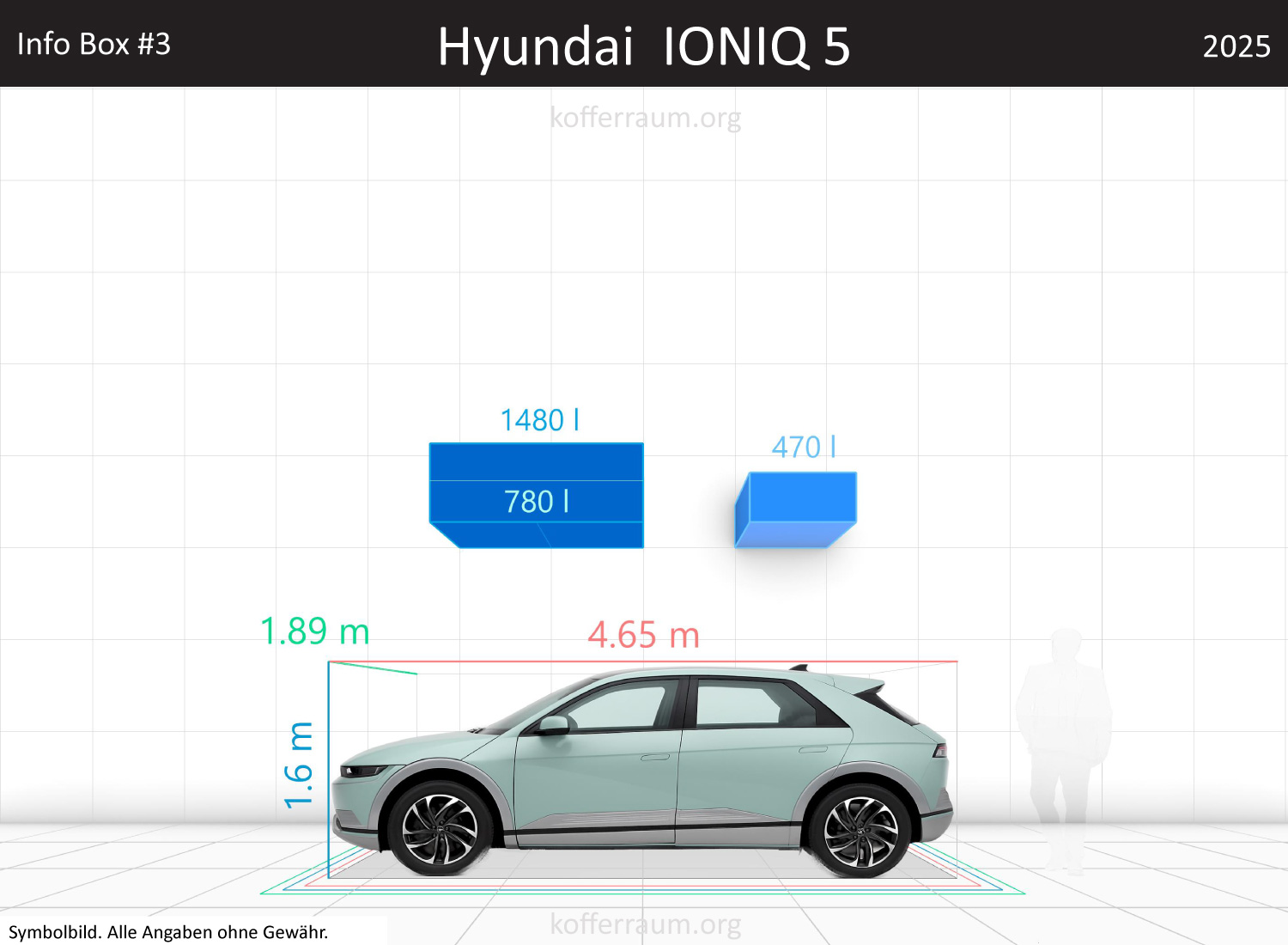

Hyundai IONIQ 5 trunk space volume — Trunk volume Hyundai IONIQ 5

Trunk Volume

The trunk of the Hyundai IONIQ 5 is reported differently in various sources. A representative average value can be set at approximately 16.4 cu ft.

Manufacturer vs. independent measurements differ significantly: manufacturer specification 18.4 cu ft, independent measurements 14.5 cu ft. This difference results from different measurement methods (with/without trunk cover, up to window sill or up to roof).

With trunk cover: 14.5 cu ft (independent measurement).
Without cover up to roof edge: stated 21.2 cu ft (text fragment), another measurement shows up to window sill with folded rear seat 27.5 cu ft.
With folded rear seat up to roof height: manufacturer 55.8 cu ft, independent measurement 48.4 cu ft.
Practical note: according to sources, up to ten beverage crates fit inside.

Compared to the average, the trunk has about 10.7% more volume, making up about 6.6% of the total vehicle volume (a slight advantage over the average). Roof-high with folded seat is slightly below average.

Vehicle Size and Parking Friendliness

The IONIQ 5 measures 183.5 in length, 74.4 in width, 63.4 in height. Compared to an average car, it is about 2.1% longer and wider and 2.6% taller. Compared to a typical parking space, however, it is 13.8 in shorter and 24 in narrower, which usually makes parking easier in everyday use.

Weight and payload affect practical usability: curb weight 2,060 kg, payload 530 kg. This means: with full occupancy and luggage, the usable payload is limited — carrying large bulky loads and passengers can quickly reach payload limits.

Trunk Usability and Flexibility

Loading edge 29.5 in above the road: significantly higher than many compact cars — loading and unloading heavy items is more laborious. Positive: interior step to loading edge only 1.2 in, resulting in little edge offset when loading.
Rear seat bench asymmetrically split and easy to fold; folding can be done by pull or by release buttons from the trunk — this increases flexibility when transporting longer items.
Interior organization: four tie-down hooks on the floor, but no side compartments, bag hooks, or additional holders. The roll cover does not fit under the floor cover.
Lighting: only one LED on the left side in the trunk — sufficient in daylight but uneven at night.
Comfort features: in the UNIQ variant, the tailgate is electric and can be opened/closed by button, key, or gesture; the gesture function can be disabled in the menu. Caution: for body heights over 1.90 m, there is a risk of head impact on the open tailgate.

Practical conclusion: The IONIQ 5 offers a variably usable trunk format with good folding options and attachment points. Limitations are the high loading edge, limited side storage compartments, and weak interior lighting.

General Model Information

Familiarity: The IONIQ 5 is a well-known electric model from Hyundai and is often classified in the compact/mid-size class of electric SUVs/hatchbacks.

Special Features/Characteristics: distinctive styling, variable loading and trunk concepts, electric tailgate (UNIQ variant), and keyless system standard. Note: the keyless system shows a potential security vulnerability due to signal extension in tests.

Price-Performance Ratio: Not specified in the facts; based on equipment (electric tailgate, flexible cargo volume, ample technology), it typically offers a competitive package within the electric compact class.

Competitor Models: Comparable vehicles in the segment include VW ID.4, Kia EV6, and other electric compact/SUV models. Choice depends on priorities: interior flexibility vs. ease of loading vs. price.

What fits in the Hyundai IONIQ 5 trunk?

Tested: 100 products — 80 fit with seats up, 15 only with seats folded.

Info

To check whether products fit the trunk, we use a purpose-built database of 3D models of 800+ trunks.
We offer the same method to online retailers at car-go.fit.
On Trunk 3D you can place these products in your trunk and arrange them with other items.
