Mazda · Sedan · 2014

Mazda Mazda6 Trunk Dimensions

Dimensions
Trunk space

This page shows the Mazda6 (Sedan). Other body styles are: Mazda6 Wagon (Wagon) .

Mazda Mazda6 - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Mazda Mazda6 (Sedan). Access in 3D

Trunk dimensions Mazda Mazda6 (Sedan). Access in 3D

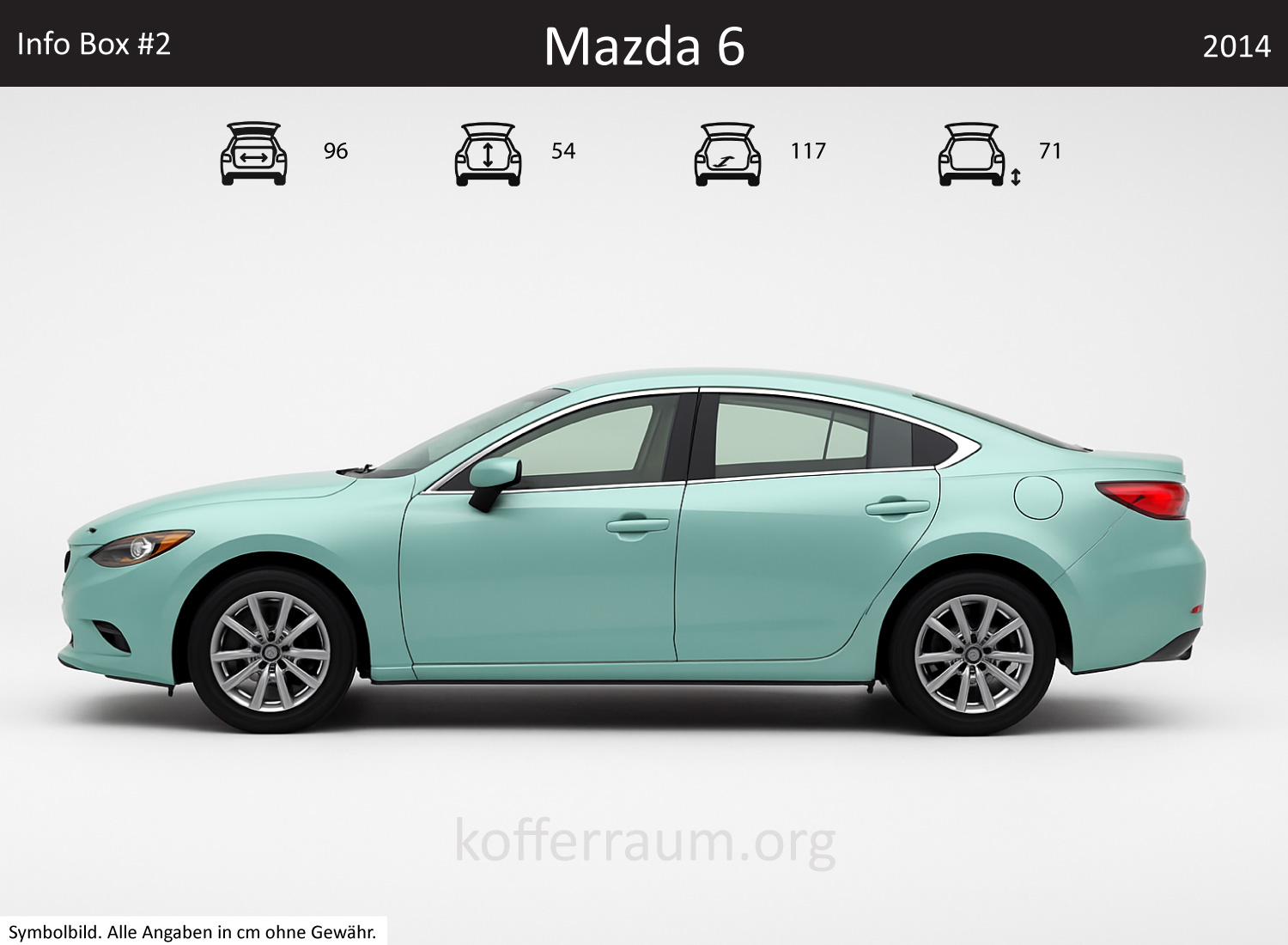

Mazda Mazda6 trunk dimensions – detail — Detail dimensions Mazda Mazda6

Mazda Mazda6 (Sedan) Trunk Dimensions

Mazda Mazda6 (Sedan) Trunk Dimensions
Measurement	Value
Width of Trunk	39.6 in
Length of Trunk	46.1 in
Height of Trunk	21.4 in

Mazda Mazda6 (Sedan) Car Dimensions

Mazda Mazda6 (Sedan) Car Dimensions
Measurement	Value
Length of Car	193.7 in
Width of Car	74.4 in
Height of Car	58.7 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Maxi-Cosi Zelia Select+

Fits (seats up)

into the Mazda Mazda6

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the Mazda Mazda6

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the Mazda Mazda6

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the Mazda Mazda6

All Shop

Camping boxes

squiq Traveler regular

Fits (seats up)

into the Mazda Mazda6

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the Mazda Mazda6

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 40cm faltbar

Fits (seats up)

into the Mazda Mazda6

All Shop

Ladders

Huini 2,5+2,5m

Fits (seats up)

into the Mazda Mazda6

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Mazda Mazda6

All Shop

Boxes

Auer Packaging 60x40x32

Fits (seats up)

into the Mazda Mazda6

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Mazda Mazda6

The trunk of the 2014 Mazda 6 sedan offers a volume of about 17 cu ft, which is good for the mid-size class.

With the rear seats folded down, which can be split in a 60:40 ratio, the cargo space increases significantly but does not provide a continuous loading surface. The interior design is functional, with a low loading lip that makes loading easier.

The rear bench is comfortable and offers sufficient space for passengers. The trunk dimensions vary slightly within the model range but generally remain consistent. Typical features include the practical shape and good accessibility, making the Mazda 6 attractive as an everyday vehicle.

Model Information

The Mazda 6 is a mid-size car known since its introduction in 2002 for its sporty driving dynamics and appealing design. The latest series of the Mazda 6, launched in 2023, offers a combination of state-of-the-art technology, comfort, and efficiency.

The sedan is characterized by an elegant silhouette and a high-quality interior that appeals to both drivers and passengers. With various engine options and trim levels, the Mazda 6 provides a wide range of choices to meet different buyer needs.

Variants of the Same Series

The Mazda 6 is available in several variants, including sedan, wagon, and hatchback. The sedan is particularly designed for sporty driving, while the wagon offers more space for luggage and transport options.

The hatchback, offered in some markets, combines the advantages of both body styles. Buyers should be aware that each variant has different characteristics and dimensions, especially regarding trunk and cargo space.

Yearly Differences

Over the years, there have been several model changes affecting the body and trunk dimensions of the Mazda 6. The first major revision took place in 2012, followed by another update in 2018. These changes led to a slight increase in trunk space and improved the vehicle's aerodynamics, positively impacting fuel consumption.

Buyers should compare specific model years to understand the differences in dimensions and trunk volume.

Direct Competitors

In the same price range and size as the Mazda 6 are models like the Volkswagen Passat, Ford Mondeo, and Toyota Camry. The Volkswagen Passat offers a trunk volume of about 20.7 cu ft, making it the space champion among competitors.

The Ford Mondeo also exceeds the Mazda 6 with about 19.4 cu ft. The Toyota Camry, on the other hand, has a trunk volume of around 15.1 cu ft, making it somewhat less spacious in comparison. These differences can be crucial for buyers who need a lot of cargo space.

More Affordable Alternatives

For buyers looking for more affordable alternatives with similar trunk dimensions, models like the Skoda Octavia or Hyundai i30 might be considered. The Skoda Octavia offers a trunk volume of about 21.2 cu ft, making it an attractive option for buyers with high space requirements.

The Hyundai i30 has a trunk volume of around 13.9 cu ft, making it somewhat smaller compared to the Mazda 6. These models often offer good value for money and are worth considering for budget-conscious buyers.

Trunk space Mazda Mazda6

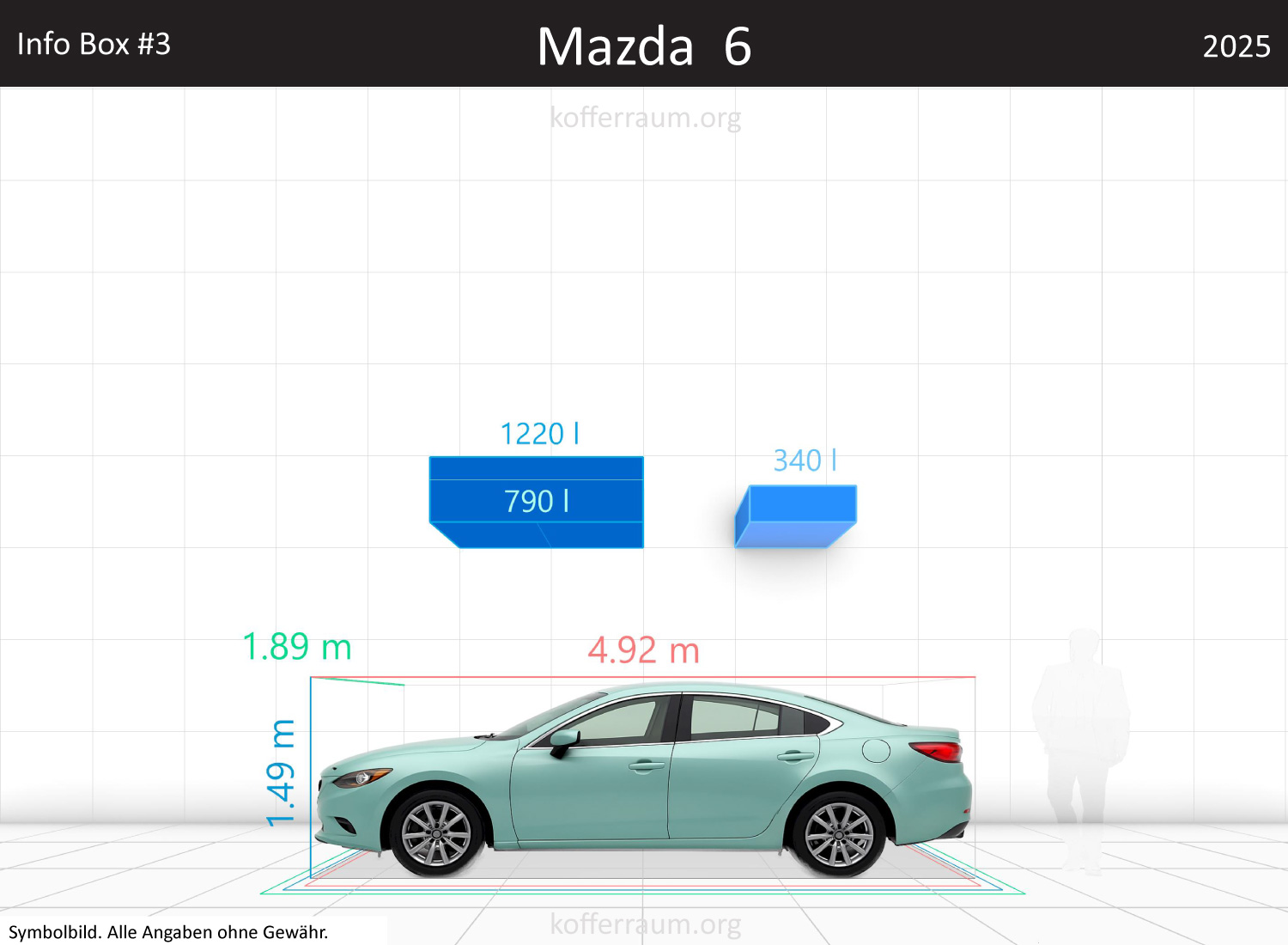

Mazda Mazda6 trunk space volume — Trunk volume Mazda Mazda6

Trunk Volume

The trunk volume of the 2025 Mazda 6 sedan is approximately 12 cu ft (manufacturer specification: 11.9 cu ft, independent measurements: 12.2 cu ft). This is -18.93% smaller than an average car. Relative to the total vehicle volume, the trunk accounts for about 4.9% (‑1.6 percentage points compared to the average).

With the rear seats folded down, the values are significantly larger: up to the window sill, independent measurements recorded 27.7 cu ft, the manufacturer states 37.9 cu ft up to roof height, and independent measurements even up to 48.2 cu ft.

Different measurement methods (manufacturer vs. independent, up to window sill vs. roof height) explain the wide range.

Everyday impact: The trunk is sufficient for groceries, compact strollers, and travel bags for 2–3 people, but does not reach class-best values. For larger moves, bulky furniture, or regular vacations with lots of luggage, the possibilities without folded rear seats are limited.

Vehicle Size and Parking Friendliness

Dimensions: 193.7 in length, 74.4 in width, 58.7 in height. This makes the Mazda 6 14.2 in longer (≈ +7.9%), 1.6 in wider (≈ +2.1%), and 2.8 in lower (≈ −4.7%) than average.

Compared to a standard parking space, the vehicle is 3.1 in shorter and 24 in narrower – meaning it usually fits lengthwise, but there is less space beside it, restricting getting in and out or opening large doors.

Practical consequences: The greater overall length and slightly increased width make maneuvers and tight parking spaces more challenging.

A parking assistant is not available; the standard driver assistance features (e.g., auto-dimming interior mirror) help but do not replace an active parking assistant. The limited rear visibility (high rear window sill) complicates reversing into parking spaces.

Trunk Usability and Flexibility

Opening and Access: The trunk opening is not very large, typical for a sedan, making it difficult to load especially bulky items. An electric tailgate is not available: the tailgate can be unlocked by button or key, but does not open automatically.

Loading Height and Ergonomics: The loading lip is 29.5 in above the ground and 8.7 in above the loading floor. This significantly complicates loading and unloading heavy items.

Equipment and Usability: Folding down the rear seatbacks creates a flat loading floor; the seatbacks can be unlocked asymmetrically from the trunk.

There is no pass-through opening in the center (no ski pass-through). Folding the seats fully back with front seats pushed all the way forward may require removing headrests.

Additionally, the trunk lighting is sparse with only one lamp, and there is no 12V outlet – limiting practicality in darkness or for coolers/compressors.

Everyday impact: The combination of relatively small base volume, narrow opening, high loading lip, and lack of electric tailgate makes handling bulky or heavy loads inconvenient. For families with regularly large luggage or users frequently transporting bulky items, a wagon/variant in the class is more practical.

General Model Information

Recognition: The Mazda 6 sedan is established in the upper mid-size class as a design-focused sedan. Notable features include the low silhouette (low height) and Mazda-typical styling.

Special features / peculiarities: Standard equipment includes comfort access (keyless) and auto-dimming mirrors; the taillights use LED technology. However, the keyless system has a known theft risk disadvantage (susceptibility to relay attacks).

Price-performance assessment: Mazda traditionally offers a good combination of driving dynamics, design, and build quality. Compared to competitors, the sedan is disadvantaged in terms of loading practicality and everyday usability compared to wagon/variant models.

Those who want design and driving feel get a lot; those seeking maximum practicality (large, easily accessible trunk) find more utility in wagons.

Competitors: Competitors in the segment include Volkswagen Passat / Passat Variant, Skoda Superb (especially practical as a wagon), Opel Insignia, as well as upper mid-size sedans (e.g., Audi A4, BMW 3 Series). Compared to wagon variants of these models, the Mazda 6 sedan falls behind in loading volume and usability.

What fits in the Mazda Mazda6 trunk?

Tested: 100 products — 84 fit with seats up, 9 only with seats folded.

Info

To check whether products fit the trunk, we use a purpose-built database of 3D models of 800+ trunks.
We offer the same method to online retailers at car-go.fit.
On Trunk 3D you can place these products in your trunk and arrange them with other items.
Missing an important product? Contact us at support@kofferraum.org.
