Mercedes Benz · Wagon · 2021

Mercedes-Benz E-Class Wagon Trunk Dimensions

Dimensions
Trunk space

Mercedes Benz E-Class Wagon - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Mercedes Benz E-Class Wagon (Wagon). Access in 3D

Trunk dimensions Mercedes Benz E-Class Wagon (Wagon). Access in 3D

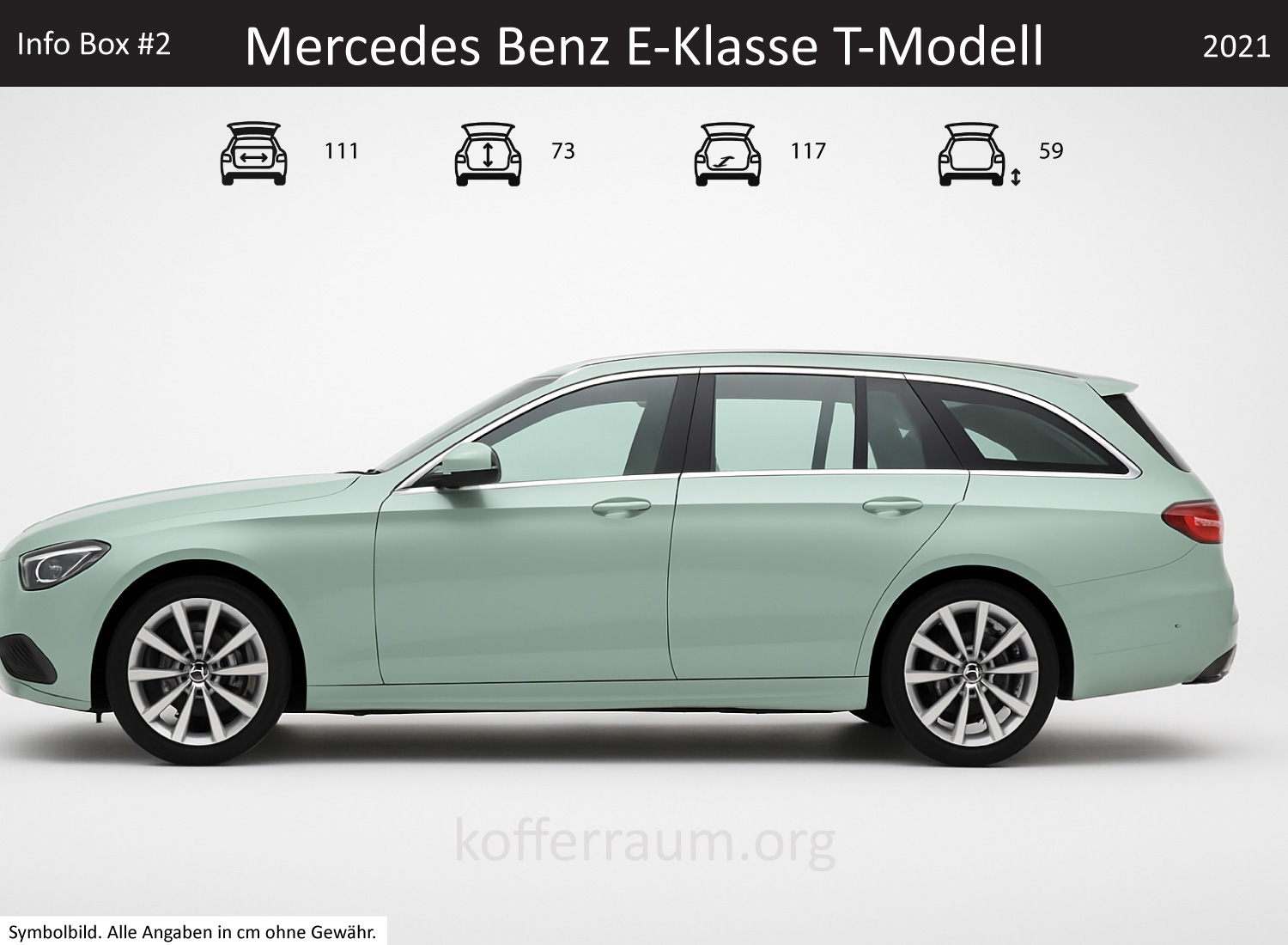

Mercedes Benz E-Class Wagon trunk dimensions – detail — Detail dimensions Mercedes Benz E-Class Wagon

Mercedes Benz E-Class Wagon (Wagon) Trunk Dimensions

Mercedes Benz E-Class Wagon (Wagon) Trunk Dimensions
Measurement	Value
Width of Trunk	43.1 in
Length of Trunk	46.1 in
Height of Trunk	28.7 in

Mercedes Benz E-Class Wagon (Wagon) Car Dimensions

Mercedes Benz E-Class Wagon (Wagon) Car Dimensions
Measurement	Value
Length of Car	194.8 in
Width of Car	74 in
Height of Car	57.8 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Bugaboo Cub All-Terrain

Fits (seats up)

into the Mercedes Benz E-Class Wagon

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the Mercedes Benz E-Class Wagon

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the Mercedes Benz E-Class Wagon

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the Mercedes Benz E-Class Wagon

All Shop

Camping boxes

squiq Traveler regular

Fits (seats up)

into the Mercedes Benz E-Class Wagon

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the Mercedes Benz E-Class Wagon

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 33cm faltbar

Fits (seats up)

into the Mercedes Benz E-Class Wagon

All Shop

Ladders

Huini 2,5+2,5m

Fits (seats up)

into the Mercedes Benz E-Class Wagon

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Mercedes Benz E-Class Wagon

All Shop

Boxes

Auer Packaging 80x60x52

Fits (seats up)

into the Mercedes Benz E-Class Wagon

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Mercedes-Benz E-Class Wagon

The trunk of the Mercedes Benz E-Class Wagon 2021 offers a volume of 22.6 cu ft with the rear seats upright and up to 64.3 cu ft with the seats folded down. The rear bench folds in a 40:20:40 split, allowing flexibility when transporting larger items.

The interior is designed with high quality, featuring a flat loading edge that facilitates loading and unloading. The trunk dimensions vary slightly within the model range but generally remain spacious and practical.

Typical features include good accessibility and a thoughtful layout, making the trunk suitable for both everyday use and travel.

Model Information

The latest series of the Mercedes Benz E-Class Wagon, also known as the estate, combines elegance and functionality. This model offers a harmonious blend of sporty design and generous space.

The E-Class Wagon is equipped with modern technologies that enhance both driving comfort and safety. The engine lineup ranges from efficient diesel to powerful gasoline engines, all meeting Mercedes Benz's high standards.

Variants of the Same Series

The Mercedes Benz E-Class is available in several variants, including sedan, convertible, coupe, and the wagon (estate). These models differ in body style and cargo space.

While the sedan focuses on elegance and comfort, the wagon provides additional storage and flexibility, making it ideal for families and active lifestyles. It is important to consider these differences to choose the right model for individual needs.

Yearly Differences

The current generation of the E-Class Wagon was introduced in 2020. Significant changes occurred in the model years 2017 and 2019, affecting body dimensions and trunk volume.

The previous generation had a slightly smaller trunk volume of around 22.6 cu ft, which meant less flexibility for transporting luggage and other items compared to the current version.

Direct Competitors

In the same price range and size, the E-Class Wagon competes with the Audi A6 Avant and BMW 5 Series Touring. The Audi A6 Avant offers a trunk volume of about 20 cu ft, while the BMW 5 Series Touring provides around 20.1 cu ft.

Thus, the E-Class Wagon offers superior trunk volume compared to its competitors, making it an attractive choice for buyers who value cargo space.

More Affordable Alternatives

For buyers seeking similar trunk dimensions but with a smaller budget, models like the Skoda Octavia Wagon or Ford Focus Wagon are interesting alternatives.

The Skoda Octavia Wagon offers a trunk volume of about 22.6 cu ft, while the Ford Focus Wagon provides around 20.3 cu ft. These models are more affordable but also offer a good combination of space and functionality.

Cargo space Mercedes-Benz E-Class Wagon

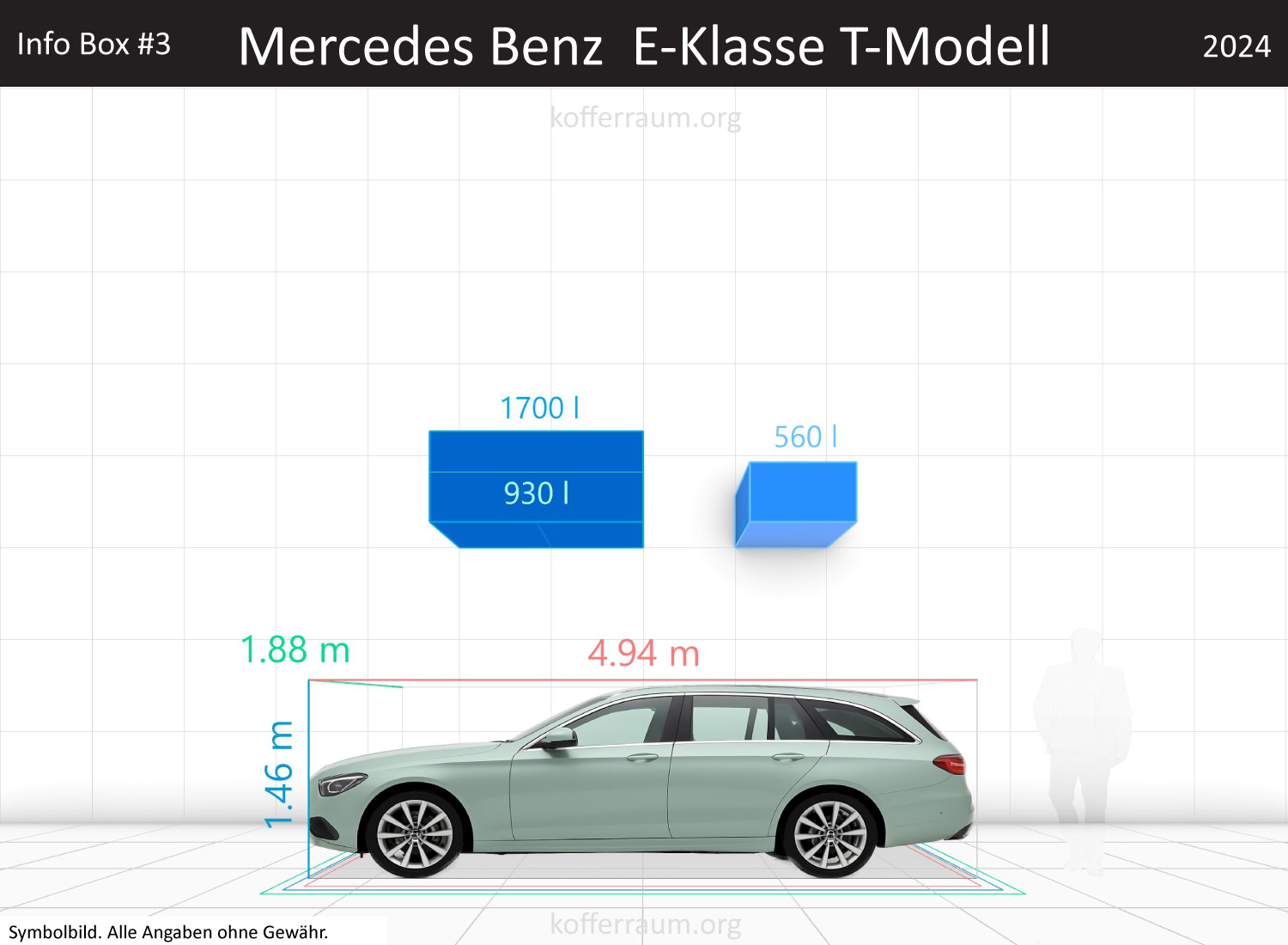

Mercedes Benz E-Class Wagon trunk space volume — Trunk volume Mercedes Benz E-Class Wagon

Trunk Volume

The trunk volume of the Mercedes-Benz E-Class Wagon (2024) ranges depending on measurement method between 17.8 cu ft (independent) and 21.7 cu ft (manufacturer specification).

An intermediate value of around 19.8 cu ft is often cited. This means the wagon offers about 33.3% more volume than an average car and accounts for approximately 8.2% of the total vehicle interior volume.

With the rear seats folded down, significantly larger volumes are achieved: up to the window sill, independent measurements show 32.8 cu ft, while roof-high volumes are stated as 55.4 cu ft (independent) and 64.6 cu ft (manufacturer specification).

Removing the cargo cover and using the space up to the roof, manufacturers and tests also mention intermediate values (e.g., ~26 cu ft in practice).

Practical impact: The E-Class Wagon is thus considerably more spacious than average — ideal for family suitcases, strollers, or larger shopping trips.

For very large or tall loads, one should refer to the roof-high values or independent measurements; real usable volumes (e.g., 17.8 cu ft up to the cover) are often decisive for daily use.

Vehicle Size and Parking Friendliness

Dimensions: 194.9 in length, 74 in width, 57.9 in height. Compared to an average car, the vehicle is 15.4 in longer, 1.2 in wider, and 3.5 in lower.

Parking: According to data, the wagon is 2 in shorter and 24.4 in narrower than a standard parking space — it therefore fits into standard parking spots, although the relative width (74 in) plus side mirrors can be noticeable in tight rows or narrow underground garages.

The lower height is advantageous for low garage clearances.

Visibility & Maneuvering: The relatively wide roof pillars and non-retractable rear headrests impair visibility; 360-degree visibility was rated moderate in tests. Practical aids (e.g., parking sensors or cameras) are therefore useful.

Trunk Usability and Flexibility

Loading works practically: The loading edge is low (about 23.6 in above road level) and the loading floor is flat, facilitating loading and unloading. The tailgate opens electrically as standard (adjustable opening angle) and can be operated by foot gesture if the key is accessible.

Organization: Standard features include an integrated cargo cover with partition net, multiple interior lights (three lamps), hooks, nets, and a foldable box under the loading floor. In practice, the trunk can hold up to 14 beverage crates — an indication of good everyday practicality.

Rear seat flexibility: The rear seats fold in a three-part split and can be folded automatically via buttons in the trunk or interior. Drawbacks: Folding does not create a completely flat loading surface (small step, rising backrests), which can complicate loading long, flat items through.

Payload: Curb weight 2060 kg, payload 605 kg. This limits the combined load capacity of passengers and heavy cargo — with full occupancy, the remaining space for heavy luggage is significantly reduced.

General Model Information

Reputation & Character: The E-Class Wagon is traditionally regarded as a serious, practical estate — not a pure lifestyle transporter. The new generation continues this claim: comfortable, well-equipped, and focused on utility.

Special features and peculiarities: Standard features like Keyless-Go, automatically dimming interior mirrors, aspherical exterior mirrors, automatic tailgate with adjustable opening angle, and good interior lighting increase comfort.

Criticisms from tests include missing headlight washers, moderate all-around visibility due to wide pillars, and the known Keyless-Go vulnerability to relay theft (temporary deactivation possible).

Price-performance: As a premium wagon, the E-Class offers high build quality, comfort, and equipment but also commands a corresponding price.

Those who value spaciousness, comfort features, and classic estate virtues receive a balanced package; main competitors in direct comparison are models from BMW (5 Series Touring), Audi (A6 Avant), and Volvo (V90).

Conclusion: The 2024 E-Class Wagon is especially suitable for users seeking a spacious, practical premium estate: large, well-usable trunk, low loading edge, many practical details — compromises include rear visibility, the not entirely flat loading floor when folding seats, and limited payload with full occupancy.

What fits in the Mercedes Benz E-Class Wagon trunk?

Tested: 100 products — 87 fit with seats up, 8 only with seats folded.

Info

To check whether products fit the trunk, we use a purpose-built database of 3D models of 800+ trunks.
We offer the same method to online retailers at car-go.fit.
On Trunk 3D you can place these products in your trunk and arrange them with other items.
Missing an important product? Contact us at support@kofferraum.org.
