Renault · Minivan · 2024

Renault Grand Kangoo Trunk Dimensions

Dimensions
Trunk space

Renault Grand Kangoo - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Renault Grand Kangoo (Minivan). Access in 3D

Trunk dimensions Renault Grand Kangoo (Minivan). Access in 3D

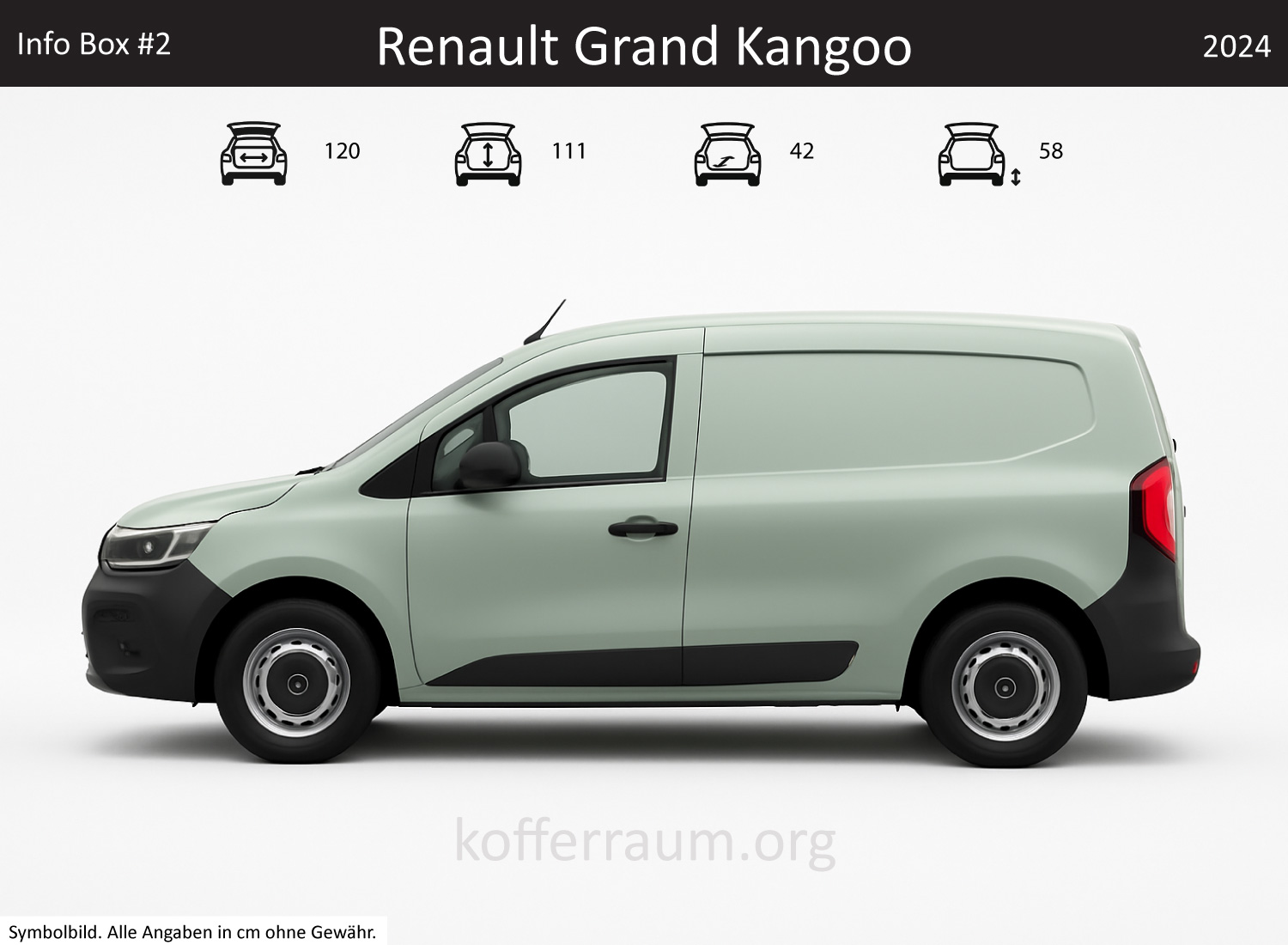

Renault Grand Kangoo trunk dimensions – detail — Detail dimensions Renault Grand Kangoo

Renault Grand Kangoo (Minivan) Trunk Dimensions

Renault Grand Kangoo (Minivan) Trunk Dimensions
Measurement	Value
Width of Trunk	47 in
Length of Trunk	16.5 in
Height of Trunk	43.7 in

Renault Grand Kangoo (Minivan) Car Dimensions

Renault Grand Kangoo (Minivan) Car Dimensions
Measurement	Value
Length of Car	193.3 in
Width of Car	73.2 in
Height of Car	73.6 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Suitcases

Travelhouse Tokyo 42L

Fits (seats up)

into the Renault Grand Kangoo

All Shop

Travel bags

Columbia Landroamer 60L Duffel

Fits (seats up)

into the Renault Grand Kangoo

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the Renault Grand Kangoo

All Shop

Garden tools

TrendLine 15L

Fits (seats up)

into the Renault Grand Kangoo

All Shop

Ladders

LOUAK&HIRON 4,7m

Fits (seats up)

into the Renault Grand Kangoo

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Renault Grand Kangoo

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Renault Grand Kangoo

The Renault Grand Kangoo 2024 offers a spacious trunk with a volume of about 30 cu ft with the seats up and up to 123.6 cu ft with the seats folded down. The rear bench is flexible and can be folded in a 60:40 ratio, which facilitates adapting the cargo space.

The interior design is functional, with a low loading edge for easy loading and unloading. The trunk dimensions vary within the model range, with the shape mostly rectangular, optimizing the use of space.

Typical features include high practicality and the possibility to use various loading configurations to meet user needs.

Model Information

The Renault Grand Kangoo is a versatile van, especially suitable for families and commercial users. With a generous interior and high flexibility, it offers numerous options for transporting passengers and cargo.

The latest series of the Grand Kangoo is characterized by modern technologies, appealing design, and improved efficiency. The equipment includes both comfort and safety features that enhance driving comfort and ensure occupant safety.

Variants of the Same Series

The Renault Grand Kangoo is mainly offered as a van. However, there are other models within the Renault lineup that should not be confused with the Grand Kangoo, such as the Renault Kangoo, which is a shorter version.

Additionally, there is the Renault Trafic, which also operates in the transport sector but targets a different audience. It is important to note the differences in size and functionality to make the right choice.

Yearly Differences

Changes to the Renault Grand Kangoo affecting body dimensions and trunk measurements have been made in various model years.

In particular, the introduction of the latest generation in 2021 brought significant improvements in interior design and trunk capacity. Previous models had smaller volumes and less flexible loading options, increasing the appeal of the new model.

Direct Competitors

In the van segment, there are several comparable models with similar prices and sizes. These include the Citroën Berlingo and the Peugeot Rifter.

The Citroën Berlingo offers a trunk volume of up to 105.9 cu ft, while the Peugeot Rifter has similar dimensions. Differences in trunk volume are minimal, but interior configuration and equipment may vary, influencing the choice of the suitable vehicle.

More Affordable Alternatives

For buyers looking for more affordable alternatives with similar trunk dimensions, models like the Dacia Dokker or the Fiat Doblo are interesting. The Dacia Dokker offers a trunk volume of up to 105.9 cu ft and is generally cheaper than the Grand Kangoo.

The Fiat Doblo also has comparable dimensions, but equipment and build quality may differ, which should be considered when making a purchase decision.

Cargo space Renault Grand Kangoo

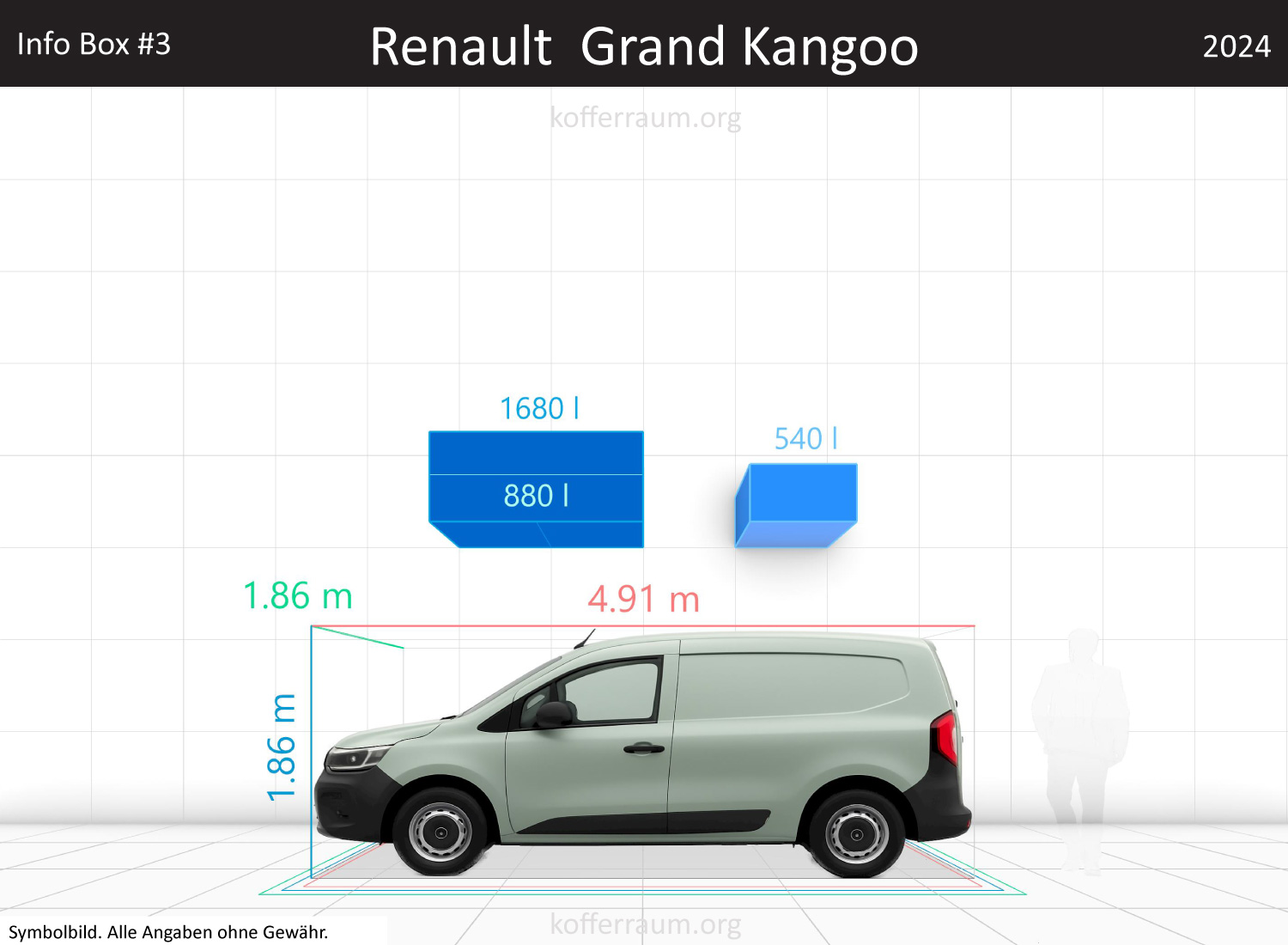

Renault Grand Kangoo trunk space volume — Trunk volume Renault Grand Kangoo

Trunk Volume

The Renault Grand Kangoo Transporter 2024 offers a very variable cargo volume. Various measurements serve as orientation: Manufacturer: 18.1 cu ft, independent measurements: 20 cu ft, average stated in the fact package: approx.

19 cu ft. Up to the window sill with the rear bench folded down, 31.1 cu ft are possible.

When folding the second row and loading up to the roof, figures range from 45.8 cu ft (manufacturer) to 73.1 cu ft (independent measurement). Without removing the second row, using seats 6 and 7 leaves a trunk volume of about 15.2 cu ft.

Relative to the vehicle volume, the trunk accounts for about 6.3% of the total volume (−0.2 percentage points compared to average). Roof-high with folded rear bench, it is about 19.7% (−2.1 percentage points compared to average).

Vehicle Size and Parking Friendliness

Dimensions: 193.3 in length, 73.2 in width, 73.6 in height. Compared to an average car, the Grand Kangoo is about 13.8 in longer, 0.4 in wider, and 12.2 in taller.

Compared to a standard parking space, it is 3.5 in shorter and 25.2 in narrower — so it basically fits in a standard parking spot but offers less lateral space for exiting or loading bulky items.

Practical consequences: The increased exterior height facilitates loading tall items but can be problematic in tight underground garages or with low entrances. The moderate width still allows maneuvering in tight parking rows but provides less lateral tolerance.

Trunk Usability and Flexibility

Practical details:

Loading opening and handling: Large trunk opening, the hatch is manually opened and swings wide — you often have to step back when opening. Under the open hatch, people up to about 1.95 m can stand upright. The gas struts are somewhat in the way on the sides.
Loading edge: The loading surface is only 22.8 in above the ground, reducing lifting effort when loading and unloading.
Seat concept: The middle row consists of three individually sliding and folding seats; the third row is also sliding and foldable. Folding and tilting forward works easily; complete removal of seats is possible but cumbersome due to weight and bulk.
Volume variants: Between 565–31.1 cu ft are achievable up to the luggage cover or window sill; without cover and with roof-high loading, 40.4 cu ft (fragment data) up to 73.1 cu ft (independently measured, with folded rear seats and optional net partition) are realistic. This allows transporting bulky or tall loads.
Payload: Curb weight 1,767 kg, payload 603 kg — good potential for passengers plus luggage, but the curb weight reduces remaining payload for very heavy loads.

Everyday effect: The Grand Kangoo is well suited for families, transport tasks, and leisure gear. The low loading edge, wide opening, and high interior height facilitate loading bulky items. Those regularly needing seven people plus luggage must accept compromises in trunk volume (≈ 15.2 cu ft).

General Model Information

Familiarity and positioning: The Grand Kangoo is positioned as a spacious, variably usable vehicle — clearly closer to commercial vehicles/comfort wagons than classic compact vans.

Special features and peculiarities:

Boxy basic shape with high interior height and large trunk opening.
Standard rearview camera is practical since rear visibility is only moderate.
Keyless system: practical but according to tests vulnerable to signal extenders; the system can be deactivated.
Sliding doors do not lock firmly in the end position but remain open only with resistance.

Price-performance ratio: The model offers high utility and flexibility, especially for users with frequently changing loading requirements or families. Exact statements on price-performance depend on equipment and market prices; from a utility perspective, the space offer is a clear plus.

Competitors: Comparable vehicles include the VW Caddy Maxi, Citroën Berlingo / Peugeot Rifter (long versions), and Mercedes alternatives (Citan / T-Class). These competitors offer similar concepts: variable interior layouts and strong usability with comparable length/height.

Conclusion: The Grand Kangoo scores with extensive, variably usable cargo volume (up to >70.6 cu ft according to independent measurements), easy loading, and family/commercial vehicle character. Usage purpose and seat occupancy largely determine how much usable space actually remains.
