Toyota · Compact SUV · 2023

Toyota bZ4X Trunk Dimensions

Dimensions
Trunk space

Toyota bZ4X - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions Toyota bZ4X (Compact SUV). Access in 3D

Trunk dimensions Toyota bZ4X (Compact SUV). Access in 3D

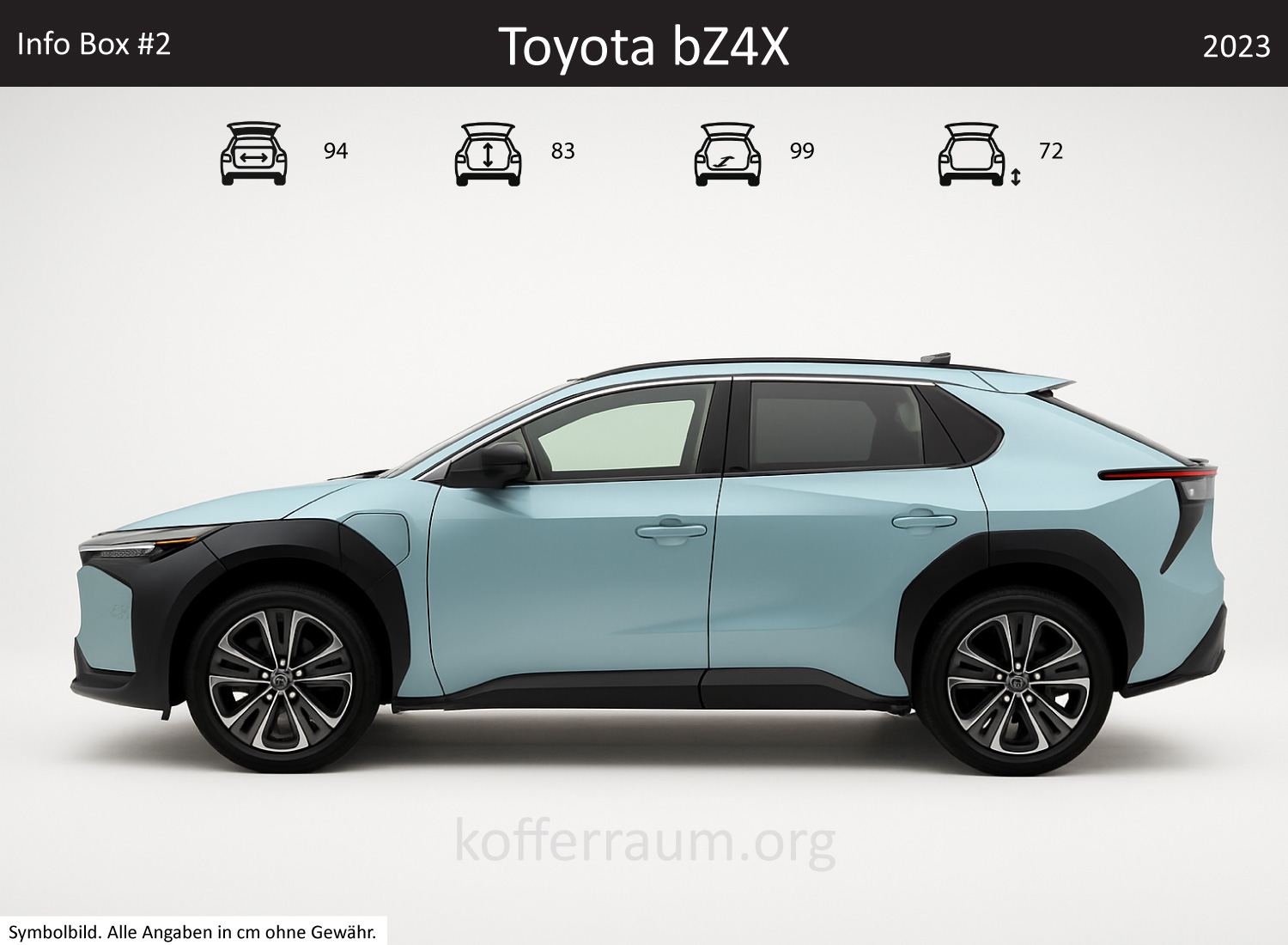

Toyota bZ4X trunk dimensions – detail — Detail dimensions Toyota bZ4X

Toyota bZ4X (Compact SUV) Trunk Dimensions

Toyota bZ4X (Compact SUV) Trunk Dimensions
Measurement	Value
Width of Trunk	38.5 in
Length of Trunk	38.8 in
Height of Trunk	32.8 in

Toyota bZ4X (Compact SUV) Car Dimensions

Toyota bZ4X (Compact SUV) Car Dimensions
Measurement	Value
Length of Car	184.6 in
Width of Car	73.2 in
Height of Car	65 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Bugaboo Cub All-Terrain

Fits (seats up)

into the Toyota bZ4X

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the Toyota bZ4X

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the Toyota bZ4X

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the Toyota bZ4X

All Shop

Camping boxes

squiq Traveler regular

Fits (seats up)

into the Toyota bZ4X

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the Toyota bZ4X

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 33cm faltbar

Fits (seats up)

into the Toyota bZ4X

All Shop

Ladders

SONGMICS 4 Stufen

Fits (seats up)

into the Toyota bZ4X

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the Toyota bZ4X

All Shop

Boxes

Auer Packaging 80x60x52

Fits (seats up)

into the Toyota bZ4X

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions Toyota bZ4X

The Toyota bZ4X 2023 offers a trunk volume of about 16 cu ft, which can be expanded to approximately 53 cu ft by folding down the rear seats. The rear bench is split 60:40, allowing flexibility when transporting luggage. The interior is designed with a modern look, focusing clearly on functionality and ergonomics.

The trunk dimensions vary depending on the equipment, but the shape remains consistently practical, with a low loading edge for easy loading and unloading. Typical features include good accessibility and a well-thought-out interior layout that makes everyday life easier.

Model Information

The Toyota bZ4X is a fully electric compact SUV that is part of Toyota's new bZ series. This model range stands for "Beyond Zero" and aims to promote emission-free mobility.

The bZ4X combines modern design with advanced technology and offers a range of up to 500 km, depending on battery size and driving style. The platform is based on Toyota's e-TNGA architecture, which allows flexible interior design and improved driving dynamics.

Variants of the Same Series

The bZ4X is offered as a single model and is not available in different variants such as sedan or convertible. However, there are different trim levels that vary in terms of performance, equipment, and price.

These variants are generally tailored to the needs of different buyer groups but all share the same basic characteristics of the bZ4X.

Yearly Differences

The Toyota bZ4X was introduced in 2021, and since then there have been no significant model changes affecting the body dimensions or trunk volume. Future model years may bring adjustments in equipment or technology that could also affect the interior or cargo area.

Direct Competitors

Direct competitors of the Toyota bZ4X include models such as the Ford Mustang Mach-E, Volkswagen ID.4, and Hyundai Ioniq 5. These vehicles offer similar sizes and price ranges.

The Ford Mustang Mach-E has a trunk volume of about 14.2 cu ft, while the Volkswagen ID.4 offers 19.2 cu ft and the Hyundai Ioniq 5 18.6 cu ft. The bZ4X thus positions itself in the mid-range regarding trunk space.

More Affordable Alternatives

More affordable alternatives with similar trunk dimensions include the Dacia Duster and the Skoda Kamiq. The Dacia Duster offers a trunk volume of about 16.9 cu ft, while the Skoda Kamiq provides 14.1 cu ft.

These models are generally cheaper to purchase but may not offer the same electric range or advanced technology as the bZ4X.

Cargo space Toyota bZ4X

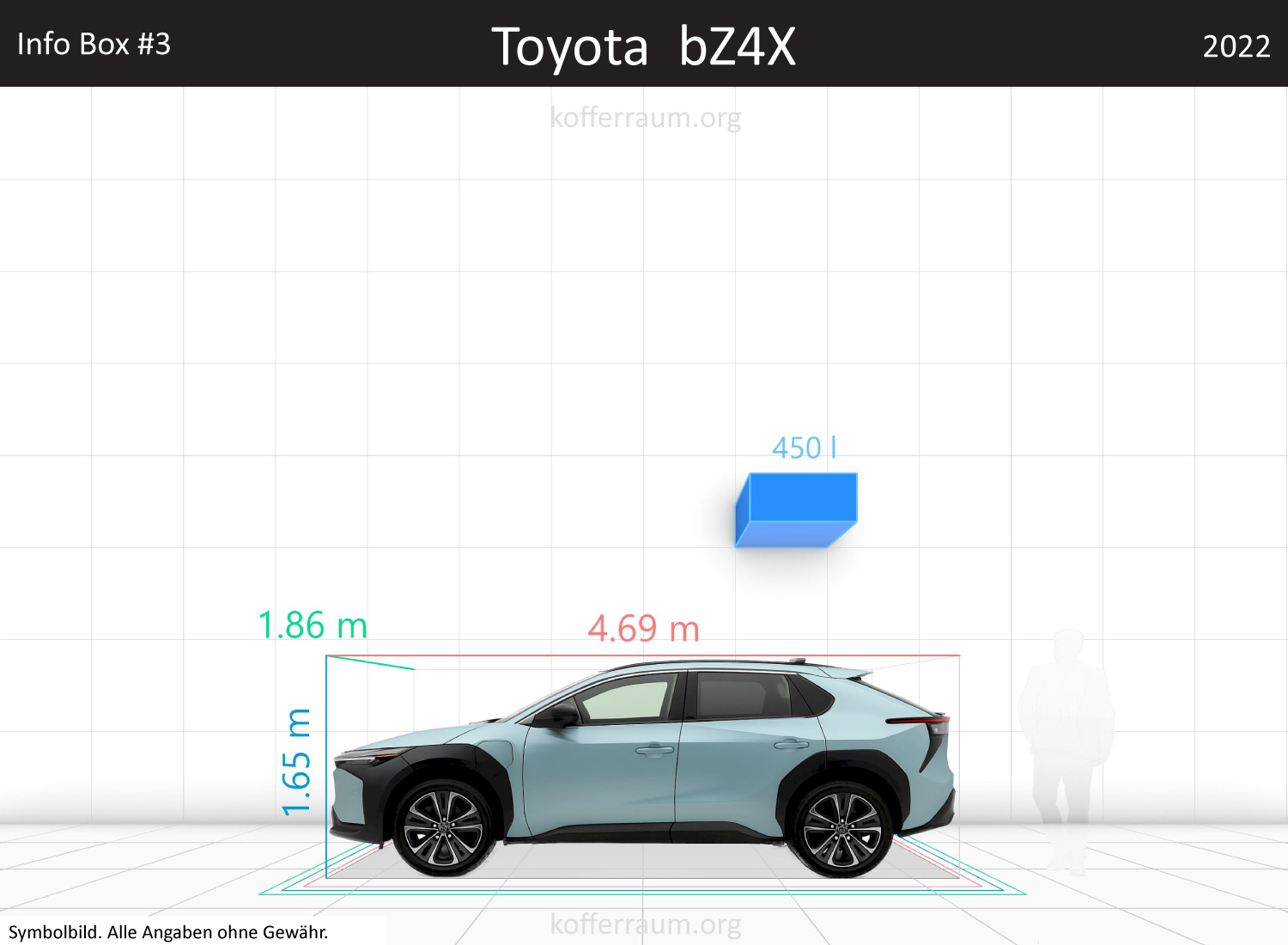

Toyota bZ4X trunk space volume — Trunk volume Toyota bZ4X

Trunk Volume

The Toyota bZ4X SUV 2022 has a trunk volume of 16 cu ft (manufacturer specification). This is about 7.62% larger than an average car. Relative to the total vehicle volume, the trunk accounts for about 6.3%, which is 0.2 percentage points lower than average.

Everyday effect: The volume of 16 cu ft practically means enough space for the weekly grocery shopping, a stroller, or luggage for short trips (typically: 2–3 larger suitcases or several bags).

Because the vehicle is overall larger, the absolute trunk space is above average, but the proportional share of the vehicle volume is slightly lower.

Vehicle Size and Parking Friendliness

Dimensions: 184.6 in long, 73.2 in wide, 65 in high.

Comparison to average car: +5.1 in (2.8%) length, +0.4 in (0.5%) width, +3.5 in (5.5%) height.

Parking space reference: According to the fact package, the bZ4X is 12.2 in shorter and 25.2 in narrower than a “normal” parking space (which is typically about 500 × 98.4 in).

This means the vehicle basically fits in standard parking spots and still leaves some room in length and width, but the remaining free side spaces are moderate.

Everyday effect: The slightly greater length can make maneuvering in tight city streets or during turning maneuvers somewhat more difficult.

The width of 73.2 in is rather large compared to average, which can limit door opening space when parking in tight garages or next to adjacent vehicles. The increased vehicle height tends to offer more headroom and loading capacity upwards.

Trunk Usability and Flexibility

From the pure liter figures, it can be inferred that the trunk volume is competitive. However, for actual usability, further details are decisive (not included in the fact package): foldable rear bench, loading floor height, pass-through opening, wheel arch shapes, and loading edge height.

Recommendations for everyday use:

If frequently using bulky cargo, check the pass-through width and seat folding options before purchase.
Pay attention to a flat loading floor and low loading edge height if strollers or heavy boxes are often loaded.
In the city, note that the width (73.2 in) limits door openings compared to neighboring cars — plan door clearance when regularly parking next to other vehicles.

General Model Information

Note: The fact package contains only volume and dimension data. Information on popularity, equipment scope, prices, drivetrain variants, or test reports are not included. Below are general orientation points that do not come from the fact package and should be checked before purchase:

Popularity: bZ4X is Toyota’s electric SUV model (2022 model year) – market presence and dealer network vary by country.
Special features / peculiarities: Check drivetrain variant (front/all-wheel drive), range, charging power, and assistance systems in specific trims.
Price-performance ratio: Cannot be assessed solely from trunk and dimensions — instead compare overall equipment, range, and incentives in the respective market.
Competitor models: Typical competitors in the segment include Volkswagen ID.4, Hyundai Ioniq 5, Kia EV6, Ford Mustang Mach-E, or Tesla Model Y — compare loading volume, interior flexibility, and parking dimensions.

Conclusion: The bZ4X offers an above-average trunk volume of 16 cu ft and is usable in standard parking spaces. Before purchase, you should check additional details on seat bench function, loading floor, and equipment/price structure to finally assess everyday suitability.

What fits in the Toyota bZ4X trunk?

Tested: 100 products — 78 fit with seats up, 17 only with seats folded.

Info

To check whether products fit the trunk, we use a purpose-built database of 3D models of 800+ trunks.
We offer the same method to online retailers at car-go.fit.
On Trunk 3D you can place these products in your trunk and arrange them with other items.
Missing an important product? Contact us at support@kofferraum.org.

Which strollers fit in the Toyota bZ4X?

10 fit upright, 3 folded-only, 0 do not fit.
