Home » Trunk dimensions » BMW » 3 Series Gran Turismo

BMW · Gran Turismo · 2016

BMW 3 Series Gran Turismo Trunk Dimensions

  • Dimensions
  • Trunk space

This page shows the 3 Series Gran Turismo (Gran Turismo). Other body styles are: 3 Series (Sedan) , 3 Series Convertible (Convertible) , 3 Series Coupe (Coupe) , 3 Series Touring (Wagon) .

Trunk dimensions BMW 3 Series Gran Turismo (Gran Turismo). Access in 3D

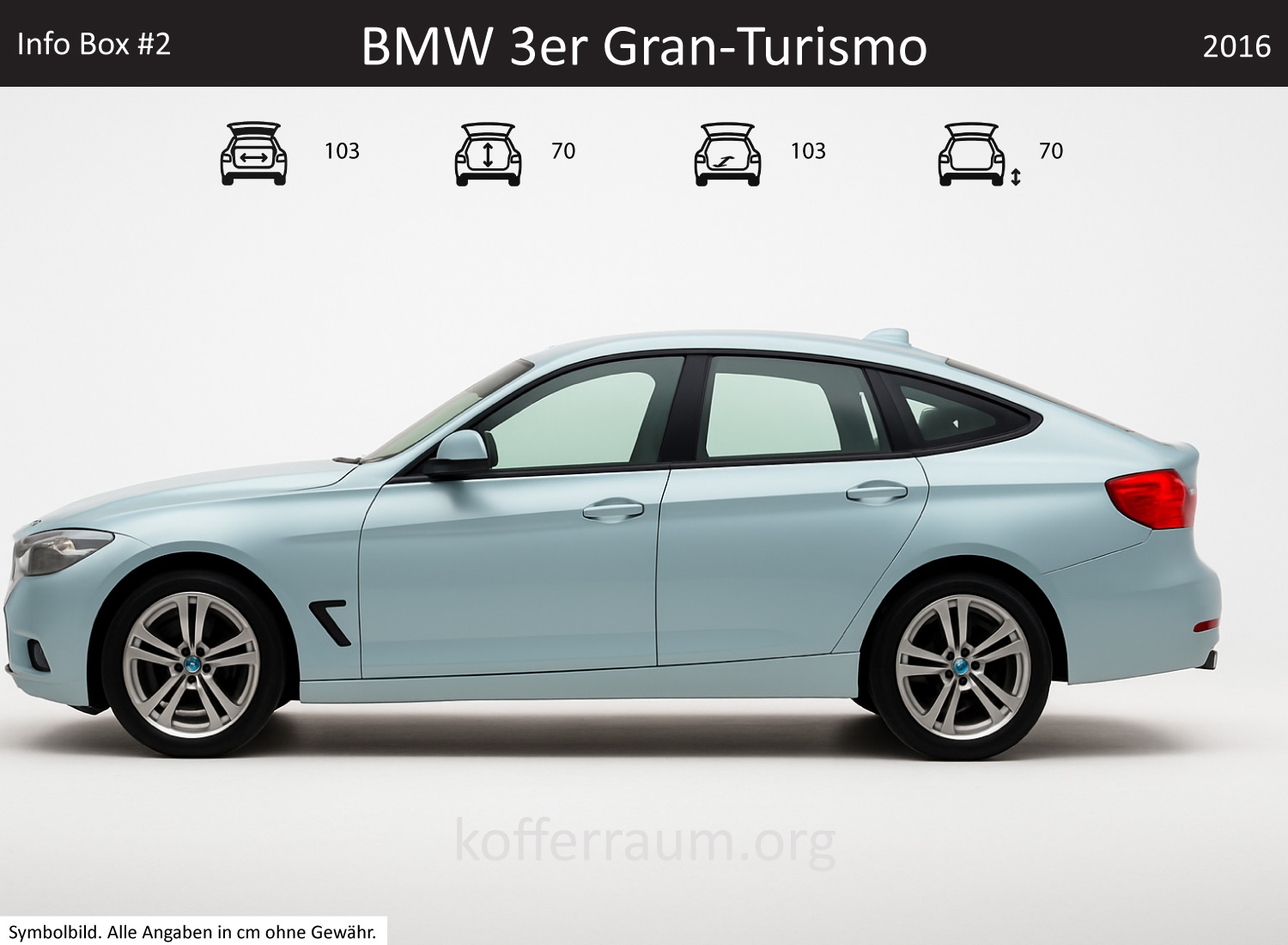

Detail dimensions BMW 3 Series Gran Turismo

BMW 3 Series Gran Turismo (Gran Turismo) Trunk Dimensions

MeasurementValue
Width of Trunk37.3 in
Length of Trunk40.5 in
Height of Trunk27.5 in

BMW 3 Series Gran Turismo (Gran Turismo) Car Dimensions

MeasurementValue
Length of Car189.9 in
Width of Car72 in
Height of Car59.4 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions BMW 3 Series Gran Turismo

The BMW 3 Series Gran Turismo 2016 offers a trunk with a volume of 17.7 cu ft, expandable up to 56.5 cu ft when the rear seats are folded down.

The rear bench is split 40:20:40, allowing flexibility in transporting luggage. The interior is designed with high quality, featuring a practical loading edge and an easily accessible trunk.

The trunk dimensions vary slightly within the model range, but the shape remains consistently hatchback-typical, supporting aerodynamics. Practicality is enhanced by a low loading edge and a wide opening, facilitating loading and unloading.

Model Information

The BMW 3 Series Gran Turismo is a sporty hatchback version of the popular 3 Series. This model line combines the elegance of a sedan with the practical functionality of a wagon.

The Gran Turismo offers a raised roofline and an extended rear, optimizing not only the design but also the interior and trunk space. The latest generation of the 3 Series Gran Turismo features modern technologies, comfortable interiors, and efficient engines that provide both performance and economy.

Variants of the Same Series

The BMW 3 Series includes several variants differing in design and functionality. Besides the Gran Turismo, there is the sedan, convertible, and wagon (Touring). While the sedan focuses on sporty elegance, the Touring offers more space and flexibility.

The Gran Turismo combines elements of both models and should not be confused with the Touring or sedan, as it has a unique body style and specific characteristics.

Model Year Differences

Model changes to the BMW 3 Series Gran Turismo affecting body and trunk dimensions mainly occurred between the 2013 and 2023 generations.

The first generation was introduced in 2013, while the current generation launched in 2020. During these years, both dimensions and design were optimized, resulting in improved trunk space. The latest generation offers enhanced aerodynamics and optimized interior space.

Direct Competitors

In the same price and size class, the BMW 3 Series Gran Turismo competes with models like the Audi A5 Sportback and the Mercedes-Benz C-Class Coupe.

The Audi A5 offers a trunk volume of about 17 cu ft, while the C-Class Coupe provides around 15.9 cu ft, slightly less space. These differences in trunk volume can be decisive for buyers valuing maximum cargo space.

More Affordable Alternatives

For buyers seeking similar trunk dimensions as the BMW 3 Series Gran Turismo but with a smaller budget, models like the Skoda Octavia Combi or Ford Focus Turnier might be interesting. The Skoda Octavia Combi offers a trunk volume of up to 22.6 cu ft, making it an excellent more affordable alternative.

The Ford Focus Turnier also provides generous volume of about 20.3 cu ft. Both models offer a good combination of price-performance ratio and functionality, making them attractive options for buyers looking for a practical vehicle.

Trunk space BMW 3 Series Gran Turismo

Trunk volume BMW 3 Series Gran Turismo

Trunk Volume

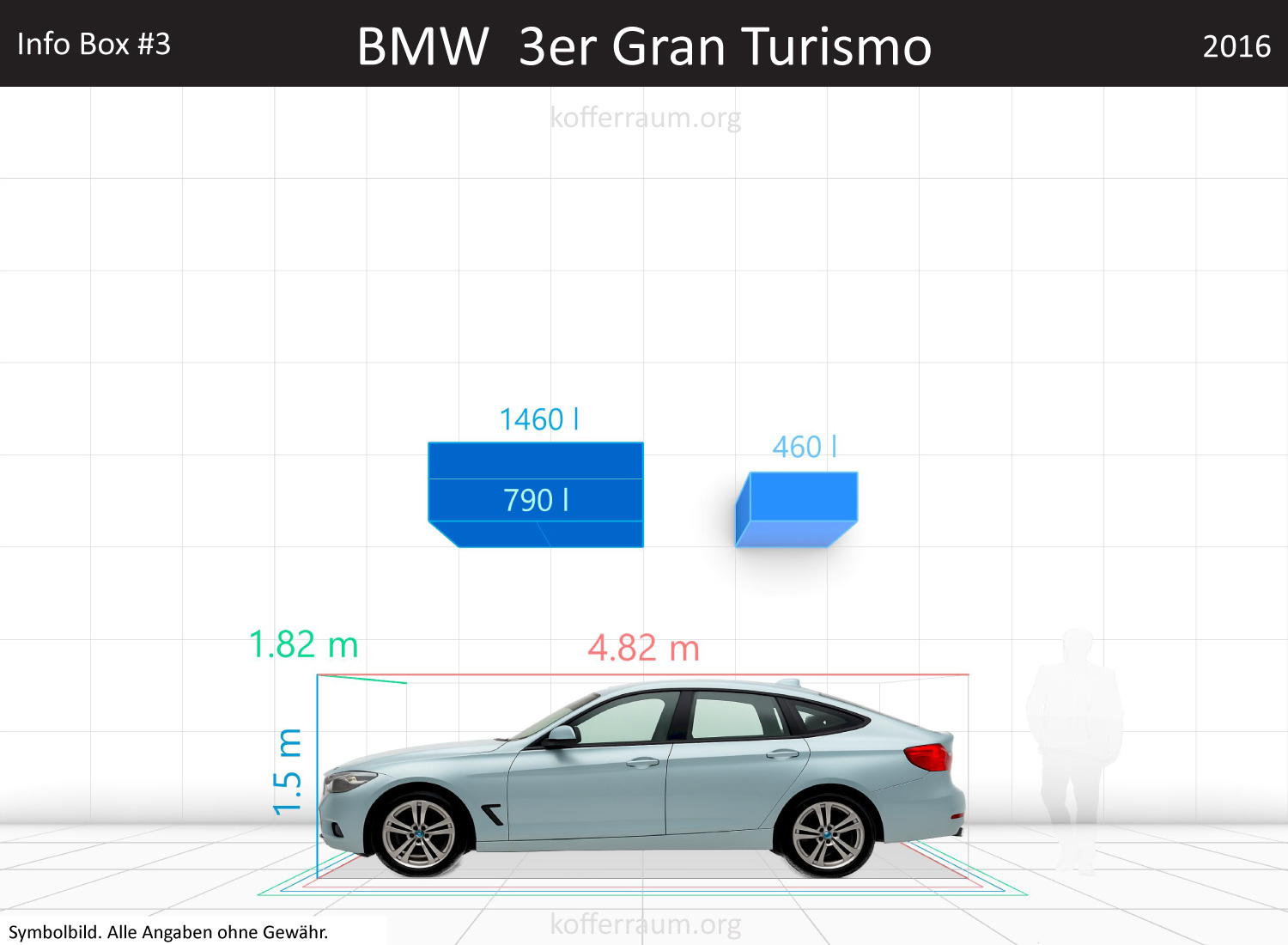

The trunk volume of the BMW 3 Series Gran Turismo (2016) varies significantly depending on the measurement method. Manufacturer specification: 18.4 cu ft. Independent measurements show 13.8 cu ft under the trunk cover and 18.7 cu ft up to the rear window (equivalent to about ten beverage crates).

An average value often cited is about 16.1 cu ft, which is roughly 8.3% above the average car. The volume accounts for about 6.8% of the vehicle's total volume — slightly above the average.

With the rear seats folded down, the volume up to the window sill increases to 27.7 cu ft (independently measured). Measured up to the roof, the range spans from the manufacturer’s 56.5 cu ft to independent measurements of 46.8 cu ft.

Vehicle Size and Parking Friendliness

Dimensions: 189.8 in length, 72 in width, 59.4 in height. Compared to an average car, the 3 Series GT is 10.2 in longer (≈ +5.8%), 0.8 in narrower (≈ −1.2%), and 2.4 in lower (≈ −3.6%).

Practical consequences: The greater length makes parking and tight parking spaces more challenging, while the moderate width positively affects maneuverability in narrow parking spots. The lower overall height combined with the adjustable tailgate opening is advantageous for low garages.

Note: The vehicle is about 7.1 in shorter and 26.4 in narrower than a “standard” parking space — so it fits comfortably in width in many parking garages, with length remaining the limiting factor in small parking spots.

Trunk Usability and Flexibility

Practical features:

  • Loading edge 27.6 in height: This makes lifting heavy items onto the loading floor more difficult. Positive: The loading floor is only 3.5 in below the loading edge, reducing small steps when loading and unloading.
  • Electric tailgate standard, adjustable opening height (useful in low garages), and optional comfort access foot swipe for hands-free opening.
  • Rear seatbacks fold in three parts (foldable from the trunk) — good flexibility for long items while still transporting passengers.
  • Under the trunk floor, storage compartments, LED lighting, tie-down rails, net, and tension strap (depending on equipment) improve organization and securing of cargo.
  • No available partition net for occupant protection in case of an accident.

Everyday impact: For normal weekly shopping and weekend luggage, the trunk offers sufficient capacity; those regularly transporting very large or bulky loads benefit from the great variability with folded rear seats. The high loading edge is the main comfort disadvantage when loading and unloading heavy loads.

General Model Information

Familiarity and special features: The 3 Series Gran Turismo combines the driving dynamics of the 3 Series with a larger, more practical rear section — targeting buyers who want more cargo space than the sedan but do not prefer a classic wagon layout.

Notable are the long roofline and wide roof pillars, which somewhat limit rear visibility.

Characteristics and safety: Comfort features like electric tailgate with adjustment and comfort access are standard; however, there are reports of vulnerabilities in keyless systems (ADAC note on insufficient protection against relay attacks).

Price-performance and competition: Strengths include the flexible loading area, practical equipment (storage compartments, LEDs, electric tailgate), and sportier driving feel compared to classic wagons.

Competitors include compact wagons and sporty mid-size combinations such as Audi A4 Avant, Mercedes C-Class T-Model, or VW Passat Variant — classic wagons sometimes offer better usable lengths and lower loading edges, while the 3 Series GT scores in style and the combination of comfort and driving dynamics.

Weights and payload: Curb weight 1670 kg, payload 495 kg — this significantly limits additional transportable luggage when multiple passengers ride (with four persons at ~75 kg each, only about ≈195 kg remain for luggage).

What fits in the BMW 3 Series Gran Turismo trunk?

Tested: 100 products — 67 fit with seats up, 23 only with seats folded.
