BMW · Wagon · 2023

BMW 3 Series Touring Trunk Dimensions

Dimensions
Trunk space

This page shows the 3 Series Touring (Wagon). Other body styles are: 3 Series (Sedan) , 3 Series Convertible (Convertible) , 3 Series Coupe (Coupe) , 3 Series Gran Turismo (Gran Turismo) .

BMW 3 Series Touring - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions BMW 3 Series Touring (Wagon). Access in 3D

Trunk dimensions BMW 3 Series Touring (Wagon). Access in 3D

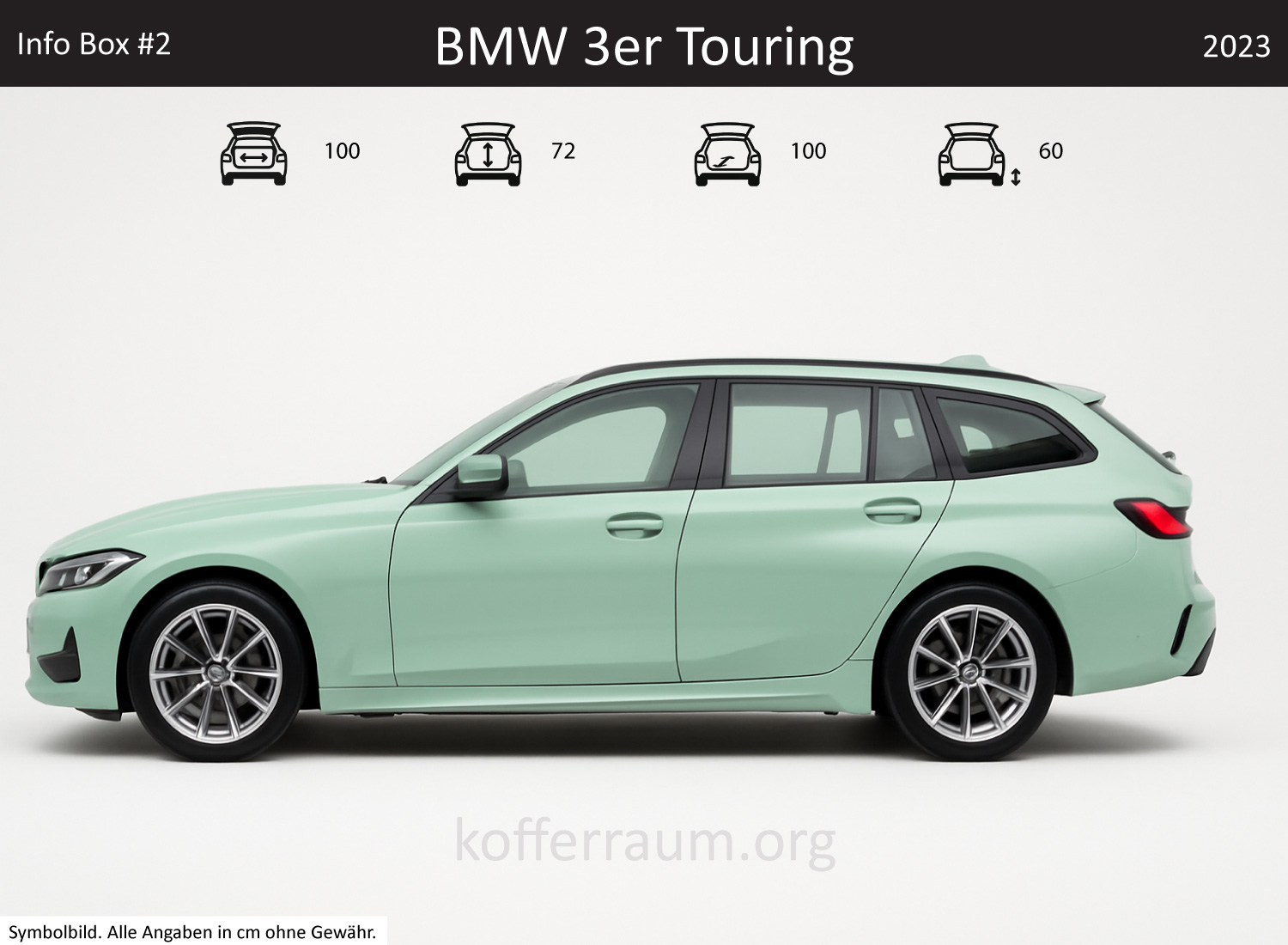

BMW 3 Series Touring trunk dimensions – detail — Detail dimensions BMW 3 Series Touring

BMW 3 Series Touring (Wagon) Trunk Dimensions

BMW 3 Series Touring (Wagon) Trunk Dimensions
Measurement	Value
Width of Trunk	37.4 in
Length of Trunk	39.4 in
Height of Trunk	28.1 in

BMW 3 Series Touring (Wagon) Car Dimensions

BMW 3 Series Touring (Wagon) Car Dimensions
Measurement	Value
Length of Car	185.6 in
Width of Car	71.9 in
Height of Car	57 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Maxi-Cosi Zelia Select+

Fits (seats up)

into the BMW 3 Series Touring

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the BMW 3 Series Touring

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the BMW 3 Series Touring

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the BMW 3 Series Touring

All Shop

Mobility aids

Todimart X11

Fits (seats up)

into the BMW 3 Series Touring

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 40cm faltbar

Fits (seats up)

into the BMW 3 Series Touring

All Shop

Ladders

SONGMICS 3 Stufen

Fits (seats up)

into the BMW 3 Series Touring

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the BMW 3 Series Touring

All Shop

Boxes

Auer Packaging 80x60x52

Fits (seats up)

into the BMW 3 Series Touring

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Compare 3 Series Touring with…

Trunk dimensions BMW 3 Series Touring

The BMW 3 Series Touring 2023 offers a trunk volume of about 17.7 cu ft, which can be expanded up to 60 cu ft when the rear seats are folded down.

The rear bench is split 40:20:40, allowing flexibility when transporting luggage. The interior is designed with high quality, featuring a practical loading edge that facilitates access.

The trunk dimensions vary slightly within the model range, but the shape remains consistently rectangular, optimizing usability. The practical design and thoughtful details make the BMW 3 Series Touring's trunk an attractive option for families and frequent travelers.

Model Information

The BMW 3 Series Touring is the wagon version of BMW's popular 3 Series. The latest generation offers a combination of sporty design, high functionality, and state-of-the-art technology.

The Touring is known for its agility and driving dynamics typical of the 3 Series, while also providing the additional cargo space and flexibility of a wagon. The newest series was developed with a focus on efficiency, comfort, and innovative assistance systems.

Variants of the Same Series

The BMW 3 Series includes several variants, including the sedan, convertible, and hatchback. Each variant has its own characteristic features. The sedan is designed for sporty driving, while the convertible stands for open-air driving enjoyment.

The hatchback offers a sporty silhouette with practical trunk access. The Touring differs by its increased functionality and larger cargo space, making it ideal for families and active lifestyles.

Model Year Differences

The current model changes for the BMW 3 Series Touring were made in 2019 with the introduction of the G21 generation. These changes included an enlargement of the body, which also affected the trunk dimensions.

Previous generations, such as the F31, had slightly smaller trunk volumes and different dimensions. Continuous development has helped make the Touring even more practical and user-friendly.

Direct Competitors

In the same price class and size, models like the Audi A4 Avant and the Mercedes-Benz C-Class T-Model compete with the BMW 3 Series Touring. The Audi A4 Avant offers a trunk volume of about 17.8 cu ft, while the C-Class T-Model provides around 17.3 cu ft.

These differences in trunk volume are minor but can be decisive depending on individual needs. The BMW 3 Series Touring offers a balanced combination of cargo space and driving pleasure.

More Affordable Alternatives

More affordable models with similar trunk dimensions include the Skoda Octavia wagon and the Ford Focus Turnier. The Skoda Octavia wagon offers a trunk volume of about 22.6 cu ft, making it an attractive option for buyers who need a lot of cargo space.

The Ford Focus Turnier has a volume of around 20.3 cu ft. These models provide a good mix of functionality and value for money, making them interesting alternatives to the BMW 3 Series Touring.

Cargo space BMW 3 Series Touring

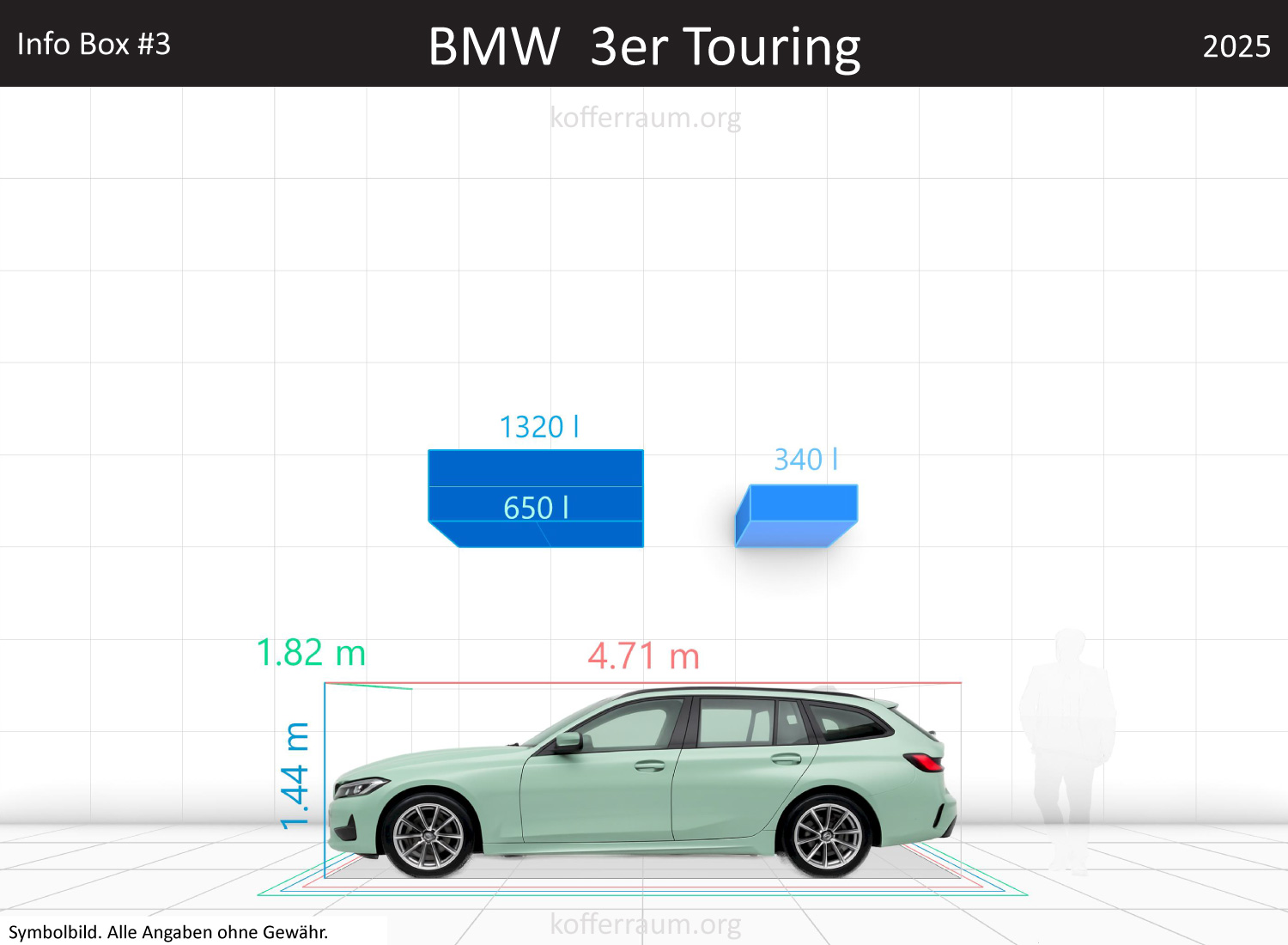

BMW 3 Series Touring trunk space volume — Trunk volume BMW 3 Series Touring

Trunk Volume

The stated cargo volume of the BMW 3 Series Touring 2025 varies significantly depending on the source. Manufacturer specification: 14.5 cu ft.

Independent measurements are considerably lower: 9.4 cu ft (under the trunk cover) or on average about 11.9 cu ft (given as a comparison value). Compared to an average car, the volume is thus about −19.6 % smaller.

With the rear seat folded down, there are strong differences depending on the measurement method: up to the window sill 22.8 cu ft (independently measured), roof-high 43.3 cu ft (independent) or 50.1 cu ft (manufacturer specification).

Additionally, about 1.1 cu ft are available under the trunk floor (e.g., for charging cables or partition nets).

Practical consequences: the volume is sufficient for everyday shopping and moderate luggage amounts. For vacation trips with a lot of luggage or for families with much cargo, the standard cargo volume is tight unless the rear seat is folded down.

Vehicle Size and Parking Friendliness

Dimensions: 185.4 in length, 72 in width, 57.1 in height. Compared to the average: +5.9 in length, −0.8 in width, −4.7 in height. Compared to a normal parking space, the vehicle is 11.4 in shorter and 26.4 in narrower.

Impact in everyday use: The length is slightly above average but remains manageable for a wagon; the car fits well into parking spaces (parking space significantly larger).

The low overall height helps when entering garages and maneuvering under underground parking ceilings but reduces the available vertical cargo space.

Empty weight and payload: Empty weight 2,025 kg, payload 450 kg (maximum permissible gross weight ≈ 2,475 kg). This limits the combined load capacity for passengers plus cargo — with full loading or large additional batteries (plug-in), the remaining payload can quickly become tight.

Trunk Usability and Flexibility

The Touring offers several practical details: large, electrically operated tailgate (standard), three-part folding rear seatbacks (40/20/40), and optional cargo package (about €140), which allows unlocking the seatbacks from the trunk at the push of a button.

Underfloor compartment (~1.1 cu ft) and a variable cargo floor increase everyday usability.

Usage specifics:

In plug-in hybrid variants (e.g., 330e), the large battery noticeably reduces volume — measured: only 9.4 cu ft under the cover; without cover up to the roof edge about 17.3 cu ft.
Loading only up to the window sill (recommended for safety reasons) yields 22.8 cu ft; completely behind the front seats up to 43.3 cu ft are usable.
The cargo space can accommodate up to nine beverage crates if needed — an indicator of practical usability despite smaller nominal values.

Conclusion: The combination of a low build and variable seatbacks makes the Touring flexible in everyday use. For large, bulky loads (e.g., furniture), the maximum usable height is limited; for suitcases and everyday goods, the flexibility is high.

General Model Information

Familiarity: The BMW 3 Series Touring is an established model in the compact/mid-size wagon segment and targets customers who want to combine sporty driving with a practical wagon concept.

Special features / characteristics:

Sporty driving dynamics combined with practicality (typical BMW).
Plug-in variants offer efficiency advantages but reduce trunk space.
Electric tailgate and standard 3-part rear seat increase everyday usability.
High empty weight and limited payload affect load capacity and consumption.

Price-performance assessment: As a premium model, the 3 Series Touring is priced above many compact wagons; equipment, driving dynamics, and build quality often justify the premium, but those seeking maximum cargo space will find cheaper volume in competitors.

Important competitors: Audi A4 Avant, Mercedes-Benz C-Class T-Model, Volvo V60, Skoda Superb Combi (as a particularly cargo-capable and more competitively priced rival).

In summary: The 3 Series Touring 2025 is a dynamic, well-usable wagon with variable loading options but smaller standard trunk volume than average — in plug-in hybrids, usable space decreases significantly further. Suitable for most everyday cases; better alternatives exist for maximum loading requirements.
