NIO · Wagon · 2023

NIO ET5 Touring Trunk Dimensions

Dimensions
Trunk space

This page shows the ET5 Touring (Wagon). Other body styles are: ET5 (Hatchback) .

NIO ET5 Touring - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions NIO ET5 Touring (Wagon). Access in 3D

Trunk dimensions NIO ET5 Touring (Wagon). Access in 3D

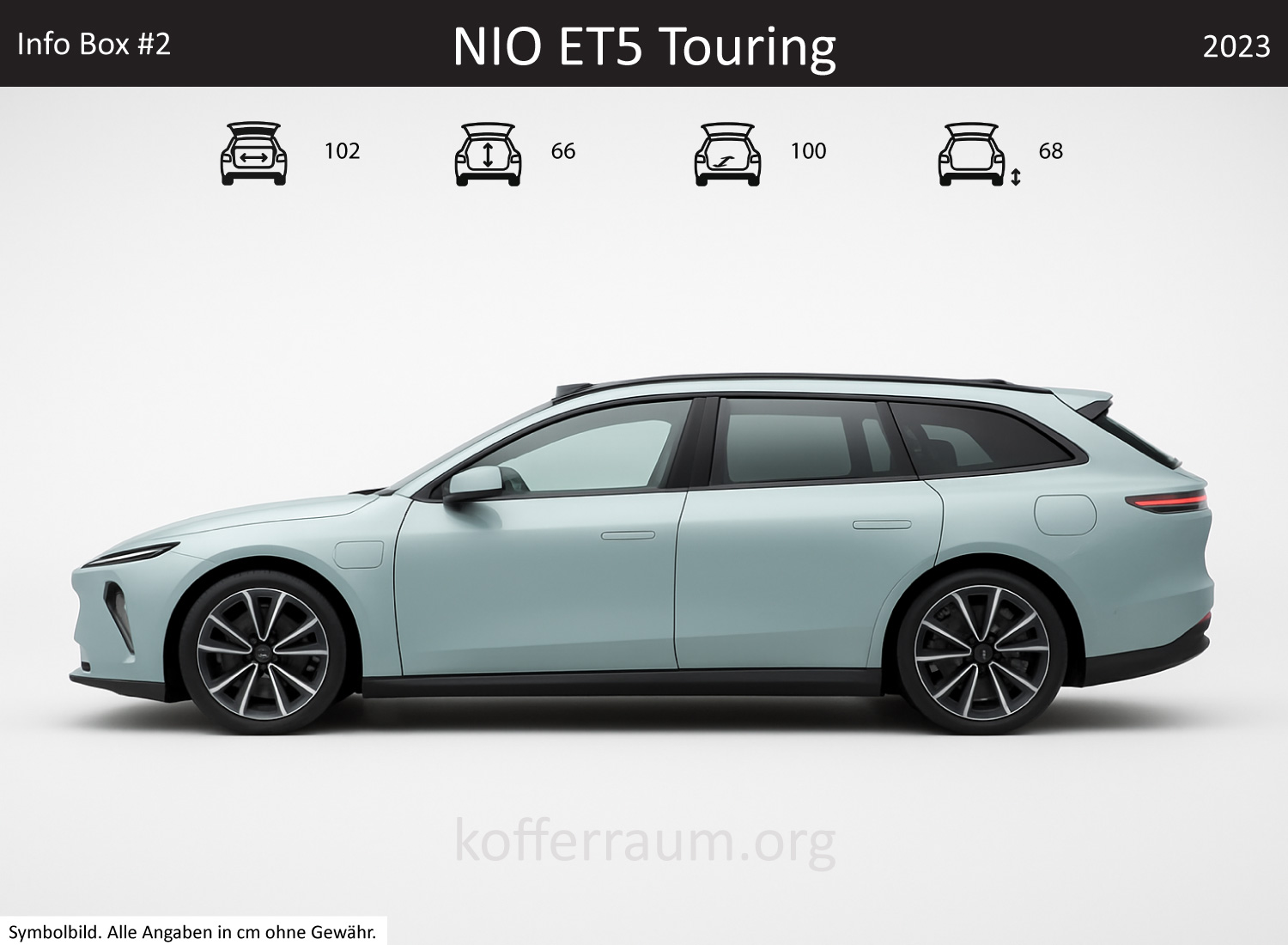

NIO ET5 Touring trunk dimensions – detail — Detail dimensions NIO ET5 Touring

NIO ET5 Touring (Wagon) Trunk Dimensions

NIO ET5 Touring (Wagon) Trunk Dimensions
Measurement	Value
Width of Trunk	41.4 in
Length of Trunk	39.4 in
Height of Trunk	26 in

NIO ET5 Touring (Wagon) Car Dimensions

NIO ET5 Touring (Wagon) Car Dimensions
Measurement	Value
Length of Car	188.6 in
Width of Car	77.2 in
Height of Car	59 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Maxi-Cosi Zelia Select+

Fits (seats up)

into the NIO ET5 Touring

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the NIO ET5 Touring

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the NIO ET5 Touring

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the NIO ET5 Touring

All Shop

Camping boxes

squiq Traveler compact

Fits (seats up)

into the NIO ET5 Touring

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the NIO ET5 Touring

All Shop

Garden tools

HYUNDAI Elektro-Rasenmäher 33cm faltbar

Fits (seats up)

into the NIO ET5 Touring

All Shop

Ladders

Huini 2,5+2,5m

Fits (seats up)

into the NIO ET5 Touring

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the NIO ET5 Touring

All Shop

Boxes

Auer Packaging 80x60x52

Fits (seats up)

into the NIO ET5 Touring

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions NIO ET5 Touring

The NIO ET5 Touring 2023 offers a variable trunk, with a volume of about 17.7 cu ft. When the rear seats are folded down, the volume can be expanded up to 53 cu ft.

The rear bench is split 60:40, allowing flexibility when transporting luggage. The interior design is modern and functional, with high-quality materials and a clear layout.

The trunk dimensions vary within the model range, with the shape usually rectangular, optimizing usability. The loading edge is low, facilitating loading and unloading.

Practical features such as tie-down rings and a removable cover are also present. Overall, the ET5 Touring offers a well-thought-out combination of space and functionality.

Model Information

The NIO ET5 Touring is a fully electric wagon distinguished by its modern technology and appealing design. It belongs to the NIO family, known for innovative electric vehicles.

The ET5 Touring combines sporty performance with a high level of comfort and functionality, making it an attractive choice for environmentally conscious buyers. With a range of up to 1000 km and advanced driver assistance systems, the ET5 Touring offers a successful blend of everyday usability and driving pleasure.

Variants of the Same Series

The NIO ET5 is available in various versions, including the sedan and the wagon. It is important not to confuse these variants, as they have different body styles and thus different characteristics.

While the sedan appears sportier and more elegant, the wagon offers more space and flexibility, making it ideal for families or active lifestyles.

Yearly Differences

The NIO ET5 Touring was introduced in 2022, and since then there have been no significant changes to the body or trunk dimensions.

Future model years could, however, bring adjustments in size or design that might affect the trunk. It is advisable to check the specifications of the latest models to ensure you have the most current information.

Direct Competition

In the same price range and size, there are several comparable car models, including the Tesla Model 3 and the BMW i4. The Tesla Model 3 offers a trunk volume of about 15 cu ft, making it somewhat smaller compared to the NIO ET5 Touring.

The BMW i4, on the other hand, has a trunk volume of around 16.6 cu ft. These differences can be decisive for buyers who value cargo space.

More Affordable Alternatives

For buyers looking for more affordable alternatives with similar trunk dimensions, models like the Skoda Enyaq or the Hyundai Ioniq 5 could be considered.

The Skoda Enyaq offers a trunk volume of about 20.7 cu ft and is thus an interesting option for buyers who want more cargo space at a lower price. The Hyundai Ioniq 5 also has a comparable volume of around 18.6 cu ft. These models offer good value for money and are worth considering.

Cargo space NIO ET5 Touring

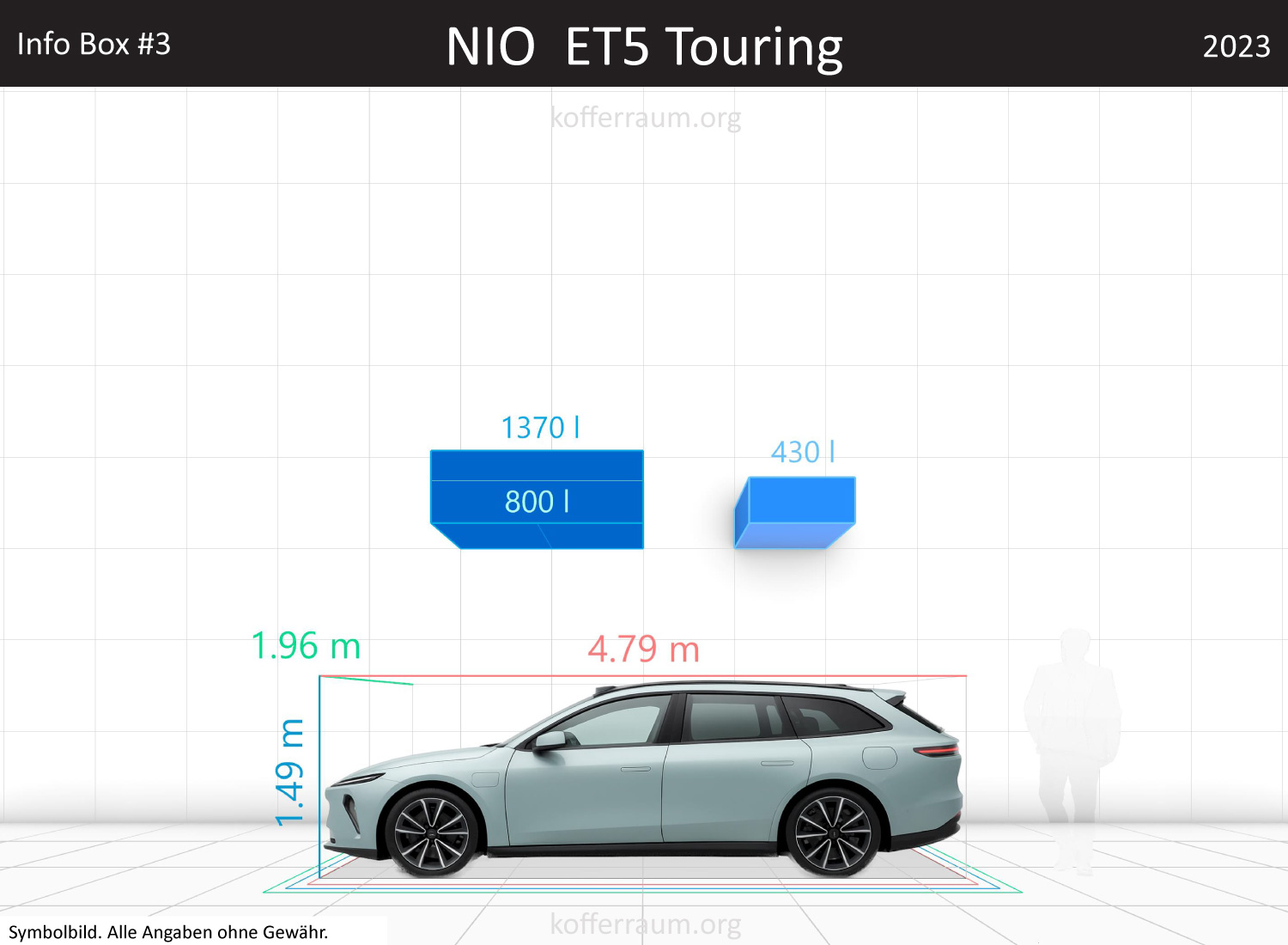

NIO ET5 Touring trunk space volume — Trunk volume NIO ET5 Touring

Trunk Volume

The trunk volume of the NIO ET5 Touring 2023 is specified differently depending on the measurement method: Manufacturer: 15.9 cu ft, independent measurements: 14.7 cu ft.

An average of these figures is about 15.3 cu ft, which is roughly +2.98 % above an average car. These numbers apply with the cargo cover raised and the rear seatbacks folded up.

With the rear bench folded down, the usable volume increases significantly: up to the window sill, about ~28.3 cu ft (independently measured) was determined; up to roof height, values between 45.9 cu ft (manufacturer) and 50.5 cu ft (independent) are possible.

Some tests also mention a value of 22.1 cu ft when the cargo cover is removed and only measured up to the roof edge — such deviations show different measurement standards.

Practical effect: For everyday use, the trunk corresponds to a typical mid-size wagon: sufficient for groceries, a stroller, and 2–3 suitcases. Folding down the rear bench significantly expands the volume, allowing for bulky loads or moves.

Vehicle Size and Parking Friendliness

Dimensions: 4.79 m long, 1.96 m wide, 1.50 m high. Compared to the average, the ET5 Touring is about +9.1 in (≈5%) longer, +4.3 in (≈5.9%) wider, and -2.4 in (-4.2%) lower.

Regarding standard parking spaces, the vehicle is about 8.3 in shorter and 21.3 in narrower than typical markings — it therefore fits into normal parking spots with remaining space.

In everyday life, however, the greater vehicle width means narrow streets, tight parking spaces, or garages with side walls require more attention when parking and opening doors.

Trunk Usability and Flexibility

Notably practical is the equipment: large tailgate (electric with foot gesture), smooth, well-usable loading surface, brightly illuminated by three LEDs (one LED removable as a flashlight), a two-part loading floor with divider function, and several tie-down and storage compartments (including a roughly 10-l compartment under the loading floor, luggage net, four bag hooks).

Tests show up to nine standard beverage crates fit in the trunk.

Some operational limitations: the electric tailgate has no separate button on the dashboard (control via touchscreen required), the cargo cover must be manually moved when opening, and the tailgate seal/lock plate protrudes visibly.

The rear seatbacks fold down in three parts and can be unlocked from inside, but not from the trunk — less practical for quick loading.

Loading-wise, the loading edge is advantageously positioned, making loading and unloading comfortable. However, the vehicle is heavy with a curb weight of 2,285 kg and a payload of only 445 kg.

This means: with five average adults (each ~75 kg), little capacity remains for additional luggage — the payload significantly limits maximum loading.

General Model Information

Familiarity: The NIO ET5 Touring is the wagon variant of the ET5 EV and further positions NIO in the growing segment of electric wagons/estates.

Special features: electric tailgate with foot gesture, three-part folding rear seatbacks, various loading volume measurements up to roof height (up to 50.5 cu ft according to independent measurements), and availability of large battery variants (e.g., 100-kWh version in tests).

Characteristics / Criticism: no frunk, no separate dashboard button for the tailgate, cargo cover and unlocking not optimally operable from the trunk, risk of pinching outer belts when folding down.

Price/performance ratio: As an electrically powered touring, the ET5 targets buyers who value technology, range, and everyday usability. The trunk volume is in the mid-size range — very usable in practice but not outstanding when comparing measurement standards.

Competitors: usual comparison models are classic wagons and electric alternatives in the mid-size class, e.g., VW Passat Variant, Skoda Superb Combi, BMW 3 Touring, Mercedes‑C‑Class T-Model (increasingly relevant competitors with electrification).

What fits in the NIO ET5 Touring trunk?

Tested: 100 products — 80 fit with seats up, 15 only with seats folded.
