NIO · Hatchback · 2023

NIO ET5 Trunk Dimensions

Dimensions
Trunk space

This page shows the ET5 (Hatchback). Other body styles are: ET5 Touring (Wagon) .

NIO ET5 - All trunk dimensions at a glance: width, height, length, depth (with the rear seats folded down and upright). — Trunk dimensions NIO ET5 (Hatchback). Access in 3D

Trunk dimensions NIO ET5 (Hatchback). Access in 3D

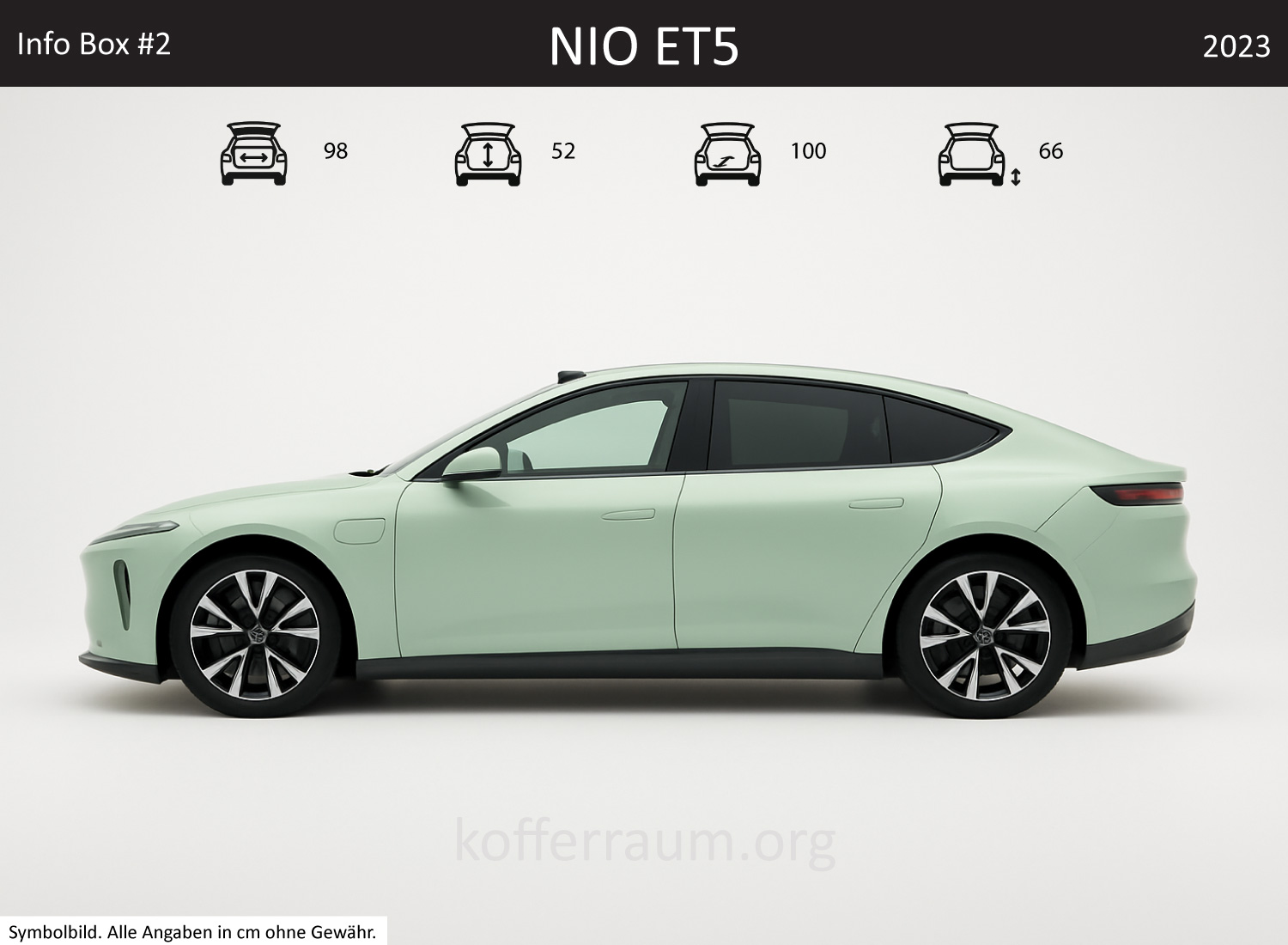

NIO ET5 trunk dimensions – detail — Detail dimensions NIO ET5

NIO ET5 (Hatchback) Trunk Dimensions

NIO ET5 (Hatchback) Trunk Dimensions
Measurement	Value
Width of Trunk	41 in
Length of Trunk	39.4 in
Height of Trunk	20.4 in

NIO ET5 (Hatchback) Car Dimensions

NIO ET5 (Hatchback) Car Dimensions
Measurement	Value
Length of Car	188.6 in
Width of Car	77.2 in
Height of Car	59 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Strollers

Maxi-Cosi Zelia Select+

Fits (seats up)

into the NIO ET5

All Shop

Suitcases

Samsonite S'Cure - Spinner XL 138L

Fits (seats up)

into the NIO ET5

All Shop

Travel bags

Eastpak Terminal+ 96L

Fits (seats up)

into the NIO ET5

All Shop

Trunk organizers

FORTEM XXL

Fits (seats up)

into the NIO ET5

All Shop

Camping boxes

squiq Traveler compact

Fits (seats up)

into the NIO ET5

All Shop

Mobility aids

PEPE Mobility

Fits (seats up)

into the NIO ET5

All Shop

Garden tools

TrendLine 85L

Fits (seats up)

into the NIO ET5

All Shop

Ladders

Huini 2,5+2,5m

Fits (seats up)

into the NIO ET5

All Shop

Hand trucks

ATHLON TOOLS C3203 100kg

Fits (seats up)

into the NIO ET5

All Shop

Boxes

Auer Packaging 60x40x32

Fits (seats up)

into the NIO ET5

All Shop

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Trunk dimensions NIO ET5

The NIO ET5 (2023) offers a trunk with a volume of about 15.9 cu ft, which can be expanded up to 42.4 cu ft when the rear seats are folded down.

The rear bench is split 60:40, allowing flexibility when transporting larger items. The interior design is modern and functional, with a low loading edge that makes loading and unloading easier.

The trunk dimensions vary within the model range, with the ET5 providing a compact but practical solution compared to other NIO models. Typical features include clean lines and a thoughtful arrangement of storage space, enhancing everyday practicality.

Model Information

The NIO ET5 is a fully electric hatchback positioned in the mid-size segment. With a modern design and advanced technology, the ET5 targets environmentally conscious buyers who value performance and comfort.

The ET5 offers a combination of sporty driving behavior and practical features, making it an attractive option in the electric vehicle segment.

Variants of the Same Series

The NIO ET5 is offered exclusively as a hatchback. There are no other variants such as sedan or convertible within this model range that could potentially cause confusion. This allows a clear positioning of the ET5 in the electric vehicle market.

Yearly Differences

The NIO ET5 was first introduced in 2021, and since then there have been no significant changes to the body dimensions or trunk dimensions. Future model years could, however, bring adjustments in equipment or technology that might indirectly affect trunk usability.

Direct Competition

In the same price class and size, the NIO ET5 competes with models like the Tesla Model 3 and the BMW i4. The Tesla Model 3 offers a trunk volume of about 15 cu ft, while the BMW i4 provides slightly more space at about 16.6 cu ft. These differences can be decisive for buyers who value cargo space.

More Affordable Alternatives

More affordable models with similar trunk dimensions include the Hyundai Ioniq 5 and the Kia EV6. The Hyundai Ioniq 5 offers a trunk volume of about 18.6 cu ft, while the Kia EV6 is also competitive with about 17.3 cu ft.

These models provide an interesting option for buyers seeking good value without sacrificing functionality.

Trunk space NIO ET5

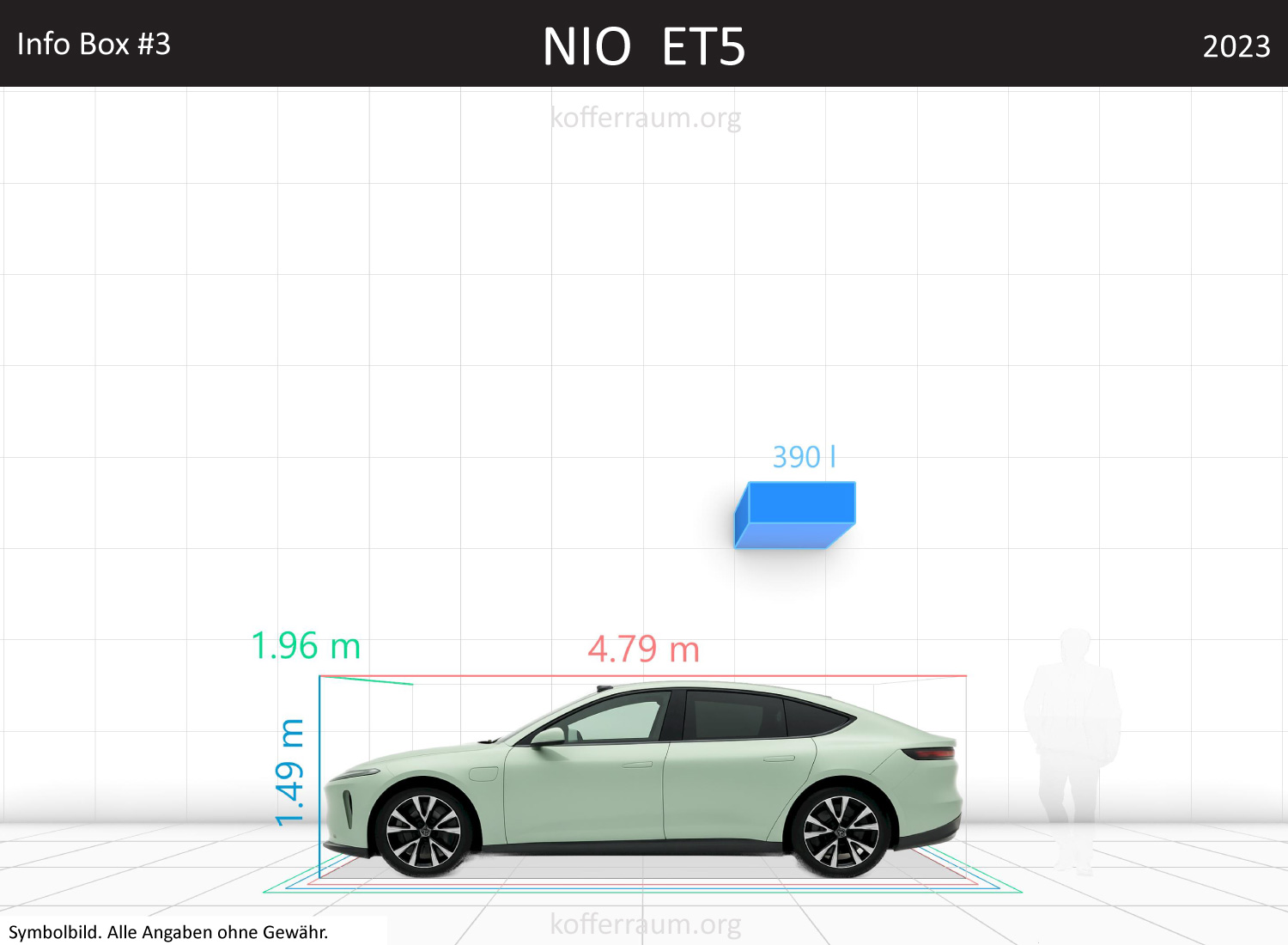

NIO ET5 trunk space volume — Trunk volume NIO ET5

Trunk Volume

The fact package states a trunk volume of 13.6 cu ft (manufacturer data and independent measurements). This corresponds to -8.1% compared to the average car and makes up about 5.5% of the total vehicle volume (one percentage point less than average).

Note on differing figures: Some text fragments additionally mention a value of 14.8 cu ft — apparently different measurement methods or variants exist. What is clear is that the trunk is in the range of typical mid-size sedans, rather at the lower end if the 13.6 cu ft value is taken as a basis.

Everyday impact:

Sufficient for shopping and weekend luggage; longer trips with full loads or lots of sports/camping equipment are limited.
The lack of a front storage solution (no frunk) significantly reduces the total available storage space in electric vehicles.
A Type 2 charging cable does not fit under the loading floor according to the fact package and must therefore be stored in the trunk — this further reduces usable volume.

Vehicle Size and Parking Friendliness

Exterior dimensions: 188.6 in length, 77.2 in width, 59.1 in height. Compared to the average, the ET5 is about 9.1 in longer (+5%) and 4.3 in wider (+5.9%) as well as 2.4 in lower (-4.2%).

Practical consequences:

The width of 77.2 in makes parking in tight spaces, underground garages, or narrow driveway entrances more challenging — although the car is still about 8.3 in shorter and 21.3 in narrower than a standard parking space and therefore basically fits in standard parking spots.
Wide roof pillars and a narrow rear window reduce rear visibility; this makes maneuvering without a rearview camera or parking sensors more difficult.
The electrically operated tailgate with foot sweep facilitates loading, but the opening remains comparatively small for a sedan.

Trunk Usability and Flexibility

Construction and equipment:

The rear seatbacks can be folded asymmetrically and unlocked from inside; when folded down, according to information, a storage space up to the window sill of up to 30.7 cu ft is created (observe safety limits).
Under the loading floor there is only a small storage compartment (about 0.5 cu ft), plus a storage compartment on the right side of the trunk.
The tailgate has a protruding, plastic-covered lock and only a single LED lamp in the luggage compartment — the lighting is therefore rather poor.

Everyday impact and limitations:

The asymmetrical folding allows longer items, but the middle seatbelt holder on the parcel shelf obstructs through-loading and complicates loading bulky parts.
Outer rear seat belts can be pinched and damaged when folding down — this requires caution when folding.
Because the Type 2 charging cable does not fit under the loading floor, space in the already compact trunk is lost; this reduces everyday usability on longer trips with luggage.
The comparatively small opening and moderate lighting increase difficulties when loading and unloading in dark environments or with large items.

General Model Information

Familiarity and concept:
The ET5 is designed as a large electric sedan (note in test: 100 kWh battery variant mentioned). It was obviously developed as an EV from the start — nevertheless, it lacks a frunk, which is unusual and disadvantageous for an electric vehicle.

Special features and peculiarities:

No frunk — charging cable and other items must be stored in the trunk.
Electrically operated tailgate with foot sweep; relatively small opening and a protruding tailgate lock.
Visibility impairments due to wide roof pillars, narrow rear window, and non-retractable headrests.
Different volume figures (386 vs. 14.8 cu ft) indicate differing measurement methods or equipment variants.

Price-performance and competition (note: no price data in fact package):
Specific prices are not included in the data package. In the vehicle class, the ET5 likely competes with compact/mid-size sedans like the Tesla Model 3, BMW 3 Series, or Mercedes C-Class (each in electric/hybrid variants).

Strengths of the ET5 are size and range options (battery variants), weaknesses lie in usable storage space, rear visibility, and everyday practicality (no frunk, small underfloor compartment, mediocre trunk lighting).

Brief conclusion: The ET5 offers a large-format, well-equipped EV sedan with practical but not outstanding loading options. Those who regularly want to store a lot of luggage or a charging cable securely should consider the limited trunk usability and the missing front box.

What fits in the NIO ET5 trunk?

Tested: 100 products — 75 fit with seats up, 19 only with seats folded.

Info

To check whether products fit the trunk, we use a purpose-built database of 3D models of 800+ trunks.
We offer the same method to online retailers at car-go.fit.
On Trunk 3D you can place these products in your trunk and arrange them with other items.
