Home » Trunk dimensions » Ford » Escape

Ford · SUV · 2024

Ford Escape Trunk Dimensions

  • Dimensions
  • Trunk space
Trunk dimensions Ford Escape (SUV). Access in 3D
Detail dimensions Ford Escape

Ford Escape (SUV) Trunk Dimensions

MeasurementValue
Width of Trunk40.9 in
Length of Trunk38.4 in
Height of Trunk29.8 in

Ford Escape (SUV) Car Dimensions

MeasurementValue
Length of Car182.9 in
Width of Car74.1 in
Height of Car66.2 in

More trunk measurements in the illustration above. Trunk geometries are not boxes. Access this trunk as a 3D model including roof-line and chair inclinations here and test what fits.

Add as preferred source

Best matching products

Links to Shop are affiliate links to our selected partners. Using them supports Trunk Dimensions at no extra cost to you.

Compare Escape with…

Trunk dimensions Ford Escape

The 2024 Ford Kuga offers a trunk with a volume of about 16.8 cu ft, which can be expanded up to 54 cu ft by folding down the rear seats. The rear bench is split 60:40, allowing flexible loading options. The interior features a practical design with a low loading lip for easy loading and unloading.

Trunk dimensions vary slightly within the model range, with the shape mostly rectangular to optimize storage space.

Typical features include good accessibility and well-thought-out storage compartments that increase practicality. The Kuga is designed to handle both everyday transport and larger cargo needs, making it a versatile compact SUV.

Model Information

The Ford Kuga is a compact SUV known for its versatility and modern technologies. The latest series of the Kuga offers a combination of appealing design, advanced safety technology, and a comfortable interior.

With various powertrain options, including hybrid and plug-in hybrid models, the Kuga targets environmentally conscious drivers who do not want to compromise on performance.

The equipment is extensive and includes modern infotainment systems as well as numerous assistance systems that make driving safer and more enjoyable.

Variants of the Same Series

The Ford Kuga is offered in various variants, including the standard version, the sportier ST-Line, and the luxurious Vignale trim. These variants differ in design features, interior equipment, and technical features.

It is important to note the differences to choose the right configuration for individual needs. The Kuga should not be confused with other Ford models such as the Ford Edge or Ford Ecosport, which address different sizes and target groups.

Yearly Differences

The Ford Kuga has undergone several model changes over the years that have affected body dimensions and trunk volume. The first generation was introduced in 2008, followed by a comprehensive revision in 2012. The second generation, launched in 2019, brought significant changes in size and design.

These changes led to a larger trunk volume compared to the first generation, making the Kuga more attractive for families and active lifestyles.

Direct Competitors

In the same price range and size as the Ford Kuga are models such as the Volkswagen Tiguan, Hyundai Tucson, and Peugeot 3008. The Volkswagen Tiguan offers a similar trunk volume of about 18.4 cu ft, while the Hyundai Tucson provides slightly more space with about 21.9 cu ft.

The Peugeot 3008, on the other hand, has a trunk volume of about 18.4 cu ft. These differences can be decisive depending on the individual transport needs of buyers.

More Affordable Alternatives

For buyers looking for more affordable alternatives with similar trunk dimensions, models like the Dacia Duster or the Skoda Karoq could be considered.

The Dacia Duster offers a trunk volume of about 16.9 cu ft, while the Skoda Karoq provides slightly more space with about 18.4 cu ft. Both models are generally cheaper than the Ford Kuga but also offer good equipment and functionality for everyday use.

Cargo space Ford Escape

Trunk volume Ford Escape

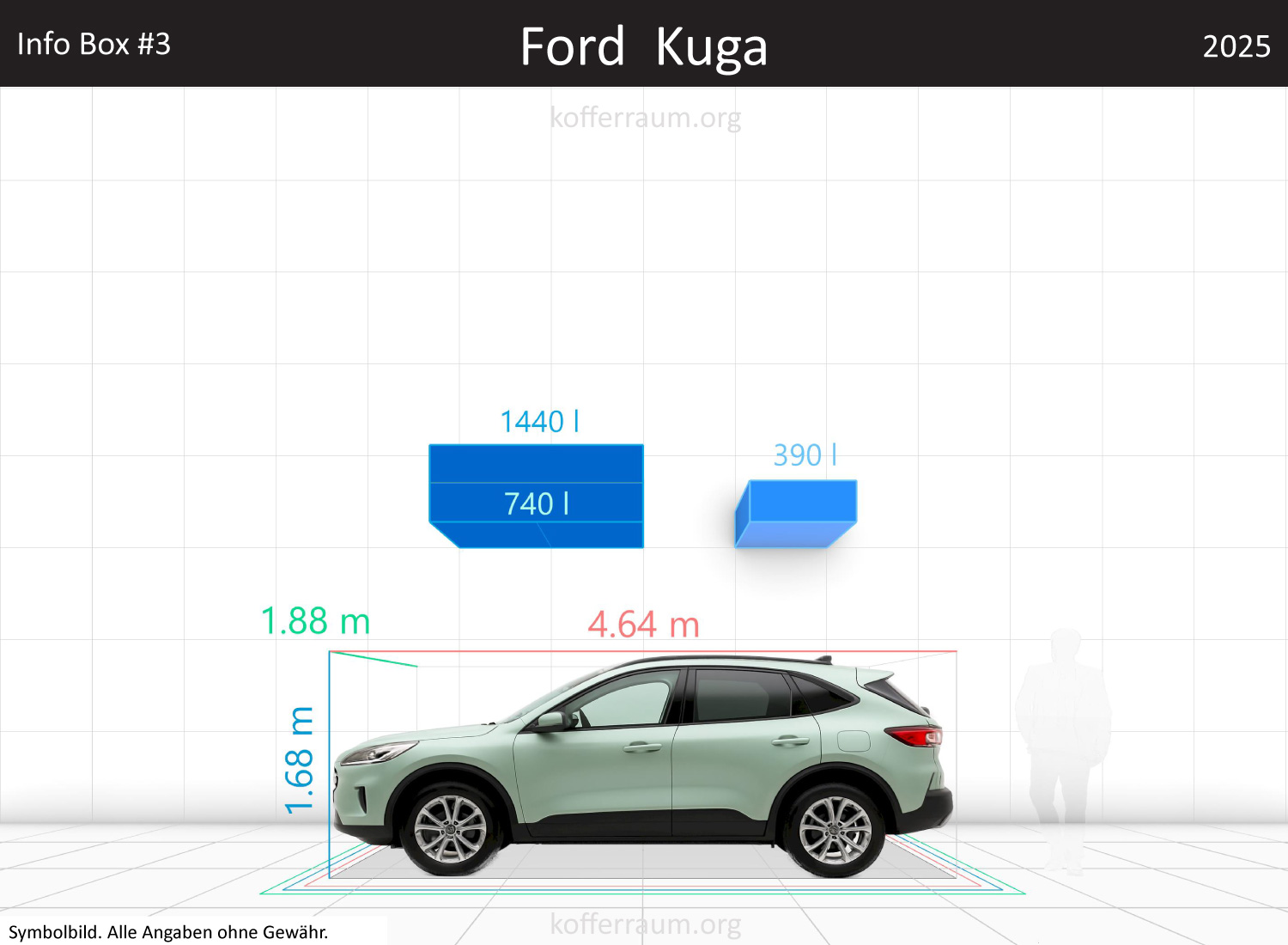

Trunk Volume

The 2025 Ford Kuga’s standard trunk volume is mid-range to slightly below: different values are reported. Key figures:

  • Manufacturer specification: 14.5 cu ft
  • Independent measurements: 12.9 cu ft
  • Listed in the fact package as a comparison value: approx. 13.7 cu ft (≈ −7.5% compared to the average car)
  • Up to the window sill with folded rear seats: 26 cu ft (independent measurement)
  • Roof height with folded rear seats: 47.9 cu ft (independent) / 54.2 cu ft (manufacturer specification)
  • Under the trunk floor a 70-liter storage compartment

Practical implications: For everyday use (weekly shopping, weekend trips, two to three suitcases), the volume is usually sufficient but below the class average.

Those who regularly transport large loads benefit greatly from folding down the rear seats: well over 24.7 cu ft are available up to the window sill, and more than 45.9 cu ft roof-high (depending on measurement method).

Vehicle Size and Parking Friendliness

  • Exterior dimensions: 183.1 in length, 74 in width, 66.1 in height.
  • Compared to the average car: +3.5 in length, +1.2 in width, +4.7 in height.
  • Compared to a standard parking space: the vehicle is 14.2 in shorter and 24.4 in narrower than a normal parking spot (generally allows relaxed parking).

Practical implications: Despite slightly above-average exterior dimensions, the Kuga remains parking-friendly in practice because it leaves plenty of room in the parking space.

The increased vehicle height (+4.7 in) requires attention in tight underground garages or low clearances. The loading lip is relatively high at 27.6 in—typical for an SUV; this can make loading and unloading heavy items more difficult but is eased by a flush floor.

Trunk Usability and Flexibility

  • Tailgate electrically operated, with foot swipe on some variants (comfortable access).
  • Trunk cover: not a roller blind but a stretched fabric frame — tends to catch on luggage when closing and seems less durable/practical than a classic roller system.
  • Rear seatbacks asymmetrically split and easily foldable; headrests do not need to be removed; levers located on the side and in the trunk.
  • No dedicated pass-through (ski bag) in the middle of the seatbacks.
  • Four tie-down hooks (two behind the rear seats are, however, too high for a floor net setup).
  • Lighting: only one halogen lamp on the right — weak illumination in darkness.

Practical implications: The Kuga is thoughtfully usable in everyday life: the low height of the side wall and trunk floor makes loading and unloading heavy items easier, and the electric tailgate simplifies handling with full hands.

Limitations include the impractical fabric cover, moderate lighting, and lack of a pass-through — long items must be transported with folded rear seats. The 70-liter underfloor compartment increases flexibility for small items or tools.

General Model Information

Familiarity: The Kuga is an established mid-size SUV in Ford’s portfolio; variants include plug-in hybrid powertrains (e.g., Active X 2.5 PHEV).

Special features / peculiarities: electric tailgate (partly with foot swipe), large underfloor compartment (2.5 cu ft), relatively high loading lip (27.6 in), and a less premium, slightly sagging trunk cover. Interior and loading flexibility are good but not exemplary (no pass-through, moderate lighting).

Price-performance ratio: Specific prices are not available; typically, the Kuga offers a competitive equipment package with hybrid options and standard electric tailgate. Those prioritizing maximum trunk volume may find more spacious alternatives in the class.

Competitor models: Typical competitors are VW Tiguan, Toyota RAV4, Hyundai Tucson, and Peugeot 3008. Compared to these models, the Kuga scores with hybrid options and practical details (underfloor compartment, electric tailgate); in pure cargo volume, it ranks slightly below top values depending on measurement.

Payload and everyday use: Curb weight 1,859 kg, payload 541 kg — important when loading many people plus luggage: the payload limits total weight, so check how much useful load remains before heavy transports.
